TECH PUBLICDatasheet (PDF)

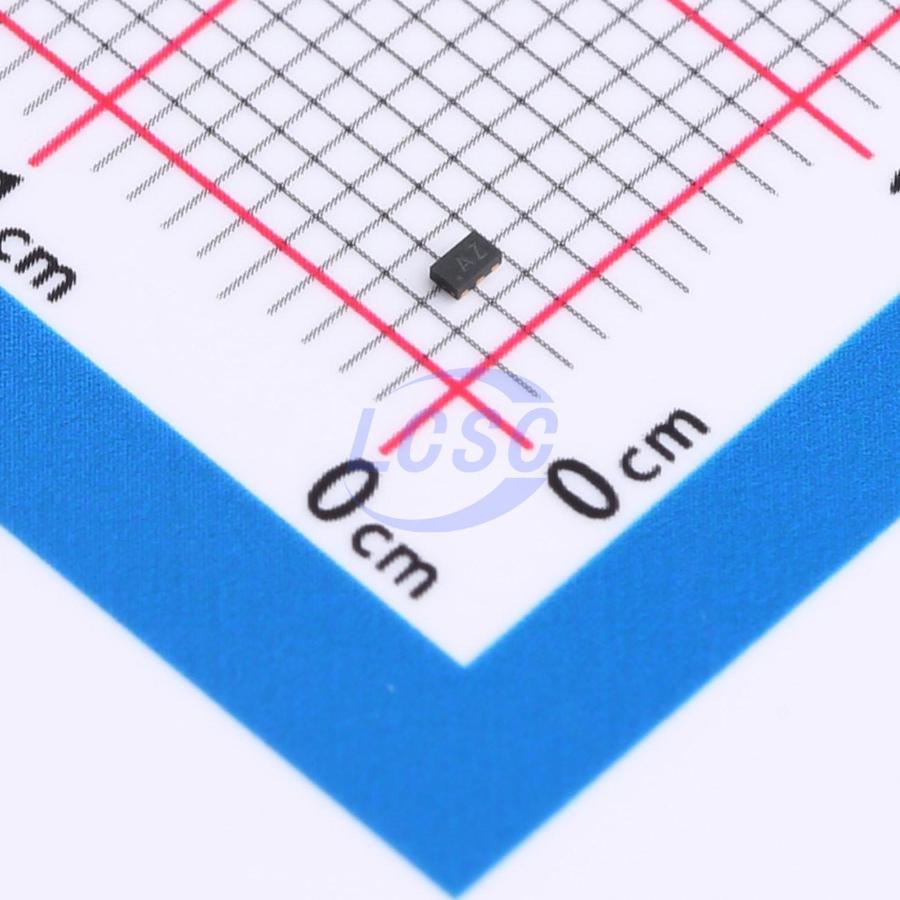

HSP053-4M5-TP
9VC 12VC Clamp 3A@8/20us Ipp TVS DIODE DFN1308-5
DFN1308-5RoHSActive
TVS DIODE 5VWM 9VC 12VC DFN1308-5
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- HSP053-4M5-TP
- Store part #
- C41425614
- Package / case
- DFN1308-5
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
985 in stock
#C41425614
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹22.52 | ₹112.60 |
| 50+ | ₹18.11 | ₹905.50 |
| 150+ | ₹16.22 | ₹2,433.00 |
| 500+ | ₹13.85 | ₹6,925.00 |
| 3,000+ | ₹11.51 | ₹34,530.00 |
| 6,000+ | ₹10.88 | ₹65,280.00 |
5 × ₹22.52
₹112.60
excl. GST
₹132.87 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
HSP053-4M5-TP
₹112.60 for 5 + GST
Specifications
- Clamping Voltage
- 9V
- Operating Temperature
- -55℃~+125℃
- Peak Pulse Current (Ipp)
- 3A@8/20us
- Peak Pulse Power Dissipation (Ppp)
- 60W@8/20us
- Number of Channels
- Four channels
- Voltage - Breakdown
- 9V
- type
- TVS
- Reverse Leakage Current (Ir)
- 80nA
- Reverse Stand-Off Voltage (Vrwm)
- 5V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.024 g
Overview
Applications
- HDMI, USB 3.0, MDDI, SATA ports
- Portable Electronics
- Computers and Peripheral
- Digital visual interface
- Microcontroller Input Protection
Key features
- Low operating voltage: 5.0V
- Low clamping voltage
- Low capacitance: 0.6pF typical
- Protects four I/O lines
- Small package saves board space
- Totally Lead-Free & Fully RoHS Compliant
- Halogen and Antimony Free. “Green" Device
- Array of surge rated diodes with internal TVS Diode
- ESD protection for high - speed data lines to IEC 61000 - 4 - 2 (ESD) ±20kV (air), ±15kV (contact)
- IEC 61000 - 4 - 4 (EFT) 40A (5/50ns)
- IEC 61000 - 4 - 5 (Lightning) 3 A (8/20μs)
