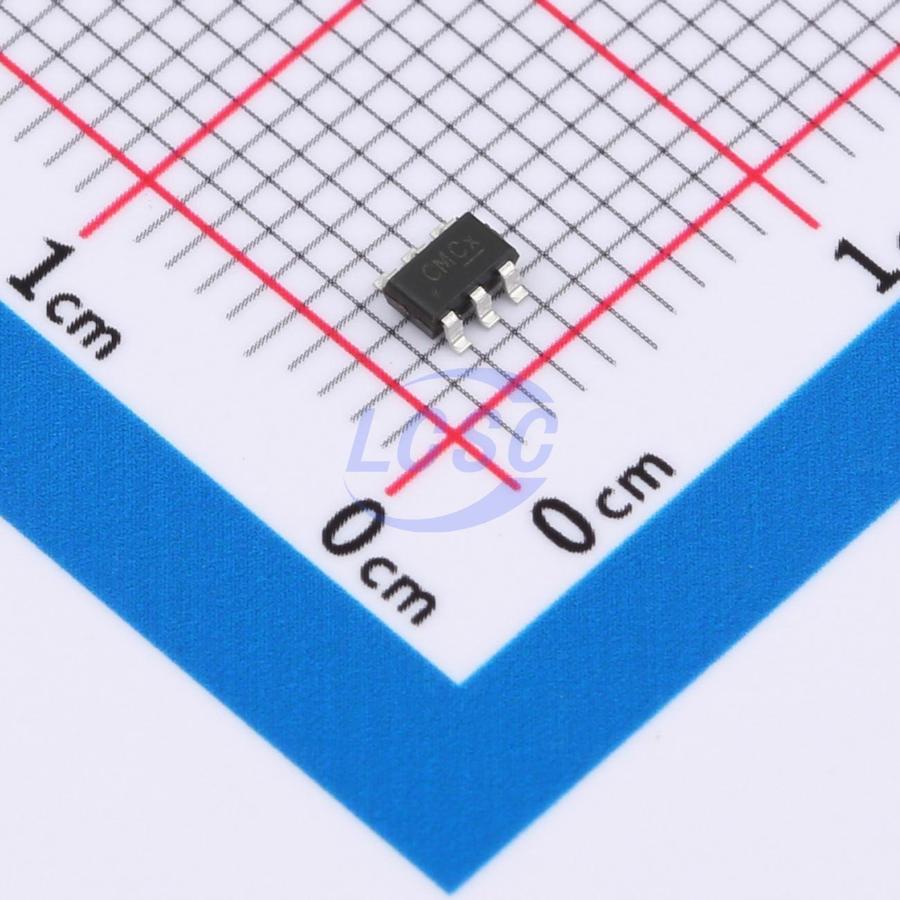

HXY MOSFET

HSY8120B1ABC

500kHz Step-down type Adjustable 2A SOT-23-6L Voltage Regulators - DC DC Switching Regulators

SOT-23-6LRoHSActive

Synchronous Step-Down Converter

Manufacturer: HXY MOSFET
Manufacturer part #: HSY8120B1ABC
Store part #: C22396391
Package / case: SOT-23-6L
Category: Voltage Regulators - DC DC Switching Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,110 in stock

#C22396391

Stock & price checked 2 days ago

Quantity	Unit price	Pack price
5+	₹19.02	₹95.10
50+	₹15.14	₹757.00
150+	₹13.47	₹2,020.50
500+	₹11.38	₹5,690.00
3,000+	₹10.45	₹31,350.00
6,000+	₹9.90	₹59,400.00

Quantity (min 5, multiples of 5)

5 × ₹19.02

₹95.10

excl. GST

₹112.22 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 3,000 per reel

HSY8120B1ABC

₹95.10 for 5 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Operating Temperature: -40℃~+85℃
Frequency - Switching: 500kHz
Number of Outputs: 1
Function: Step-down type
Features: Light load efficient mode;Cycle-by-cycle current limiting;Hiccup current limiting;Overcurrent Protection
Topology: Buck
Output Type: Adjustable
Operating Voltage: 4.2V~18V
Switch tube (built-in/external): Built-in
Output Current: 2A
Quiescent Current: 700uA

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Moisture sensitivity: MSL 3 (168 hours)
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.034 g

Overview

HSY8120B1ABC is a wide input range, high efficiency, high frequency DC-DC step-down switching regulator capable of delivering up to 2A of output current. Its fixed switching frequency is 500kHz, employing current-mode PWM control, which allows the use of small external components such as ceramic input and output capacitors and a compact inductor. The device also features a proprietary control scheme that switches to power-save mode at light loads, extending the high-efficiency operating range. The overvoltage protection function safeguards both the IC itself and its downstream systems against input voltage surges. With this feature, the IC can withstand input voltages up to 19V, making it an ideal solution for industrial applications such as LCD TVs, set-top boxes, and portable televisions. The device is available in a SOT-23-6L package.
