HXY MOSFETDatasheet (PDF)

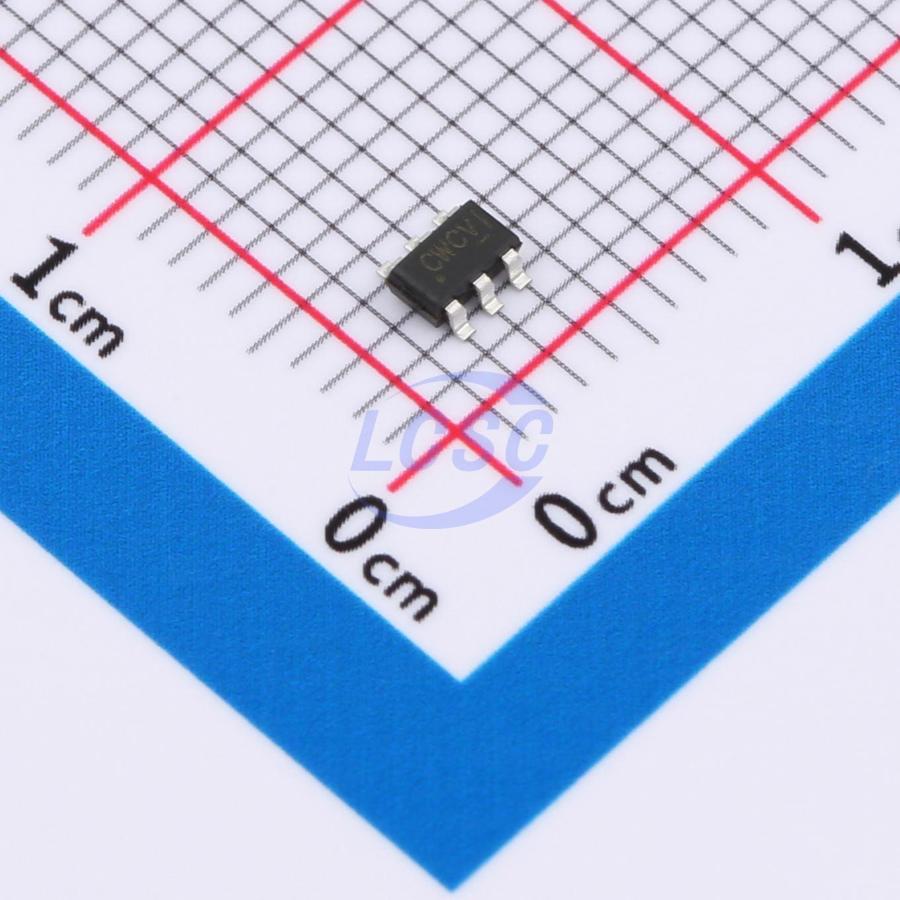

HSY8121BABC
1MHz Step-down type Adjustable 2A SOT-23-6L Voltage Regulators - DC DC Switching Regulators
SOT-23-6LRoHSActive
Synchronous Step-Down Converter
- Manufacturer
- HXY MOSFET
- Manufacturer part #
- HSY8121BABC
- Store part #
- C22396392
- Package / case
- SOT-23-6L
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,405 in stock
#C22396392
Stock & price checked 2 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹27.81 | ₹139.05 |
| 50+ | ₹21.80 | ₹1,090.00 |
| 150+ | ₹19.22 | ₹2,883.00 |
| 500+ | ₹16.01 | ₹8,005.00 |
| 3,000+ | ₹14.58 | ₹43,740.00 |
| 6,000+ | ₹13.72 | ₹82,320.00 |
5 × ₹27.81
₹139.05
excl. GST
₹164.08 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
HSY8121BABC
₹139.05 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Frequency - Switching
- 1MHz
- Number of Outputs
- 1
- Function
- Step-down type
- Features
- Cycle-by-cycle current limiting;Hiccup current limiting;Overcurrent Protection
- Output Type
- Adjustable
- Topology
- Buck
- Operating Voltage
- 4.2V~28V
- Switch tube (built-in/external)
- Built-in
- Output Current
- 2A
- Quiescent Current
- 750uA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.047 g
Overview
HSY8121BABC is a wide input range, high efficiency, high frequency DC-DC step-down switching regulator capable of delivering up to 2A of output current. The device operates at a fixed 1MHz switching frequency with current-mode PWM control, allowing the use of small external components such as ceramic input and output capacitors and a compact inductor. HSY8121BABC also employs a forced PWM control scheme to ensure minimum output ripple voltage. Its input can withstand voltage surges up to 30V, making it suitable for applications such as surveillance cameras, LCD TVs, and set-top boxes. The device is available in a SOT-23-6L package.
Applications
- Surveillance
- Set-top box
- LCD TV
Key features
- Wide input range: 4.2V ~ 28V
- Forced PWM control
- 1MHz switching frequency
- 2A output current capability
- No external compensation required
- Current mode control
- Thermal shutdown and UVLO
- Excellent load and line transient response
- SOT23-6 package
