HXY MOSFETDatasheet (PDF)

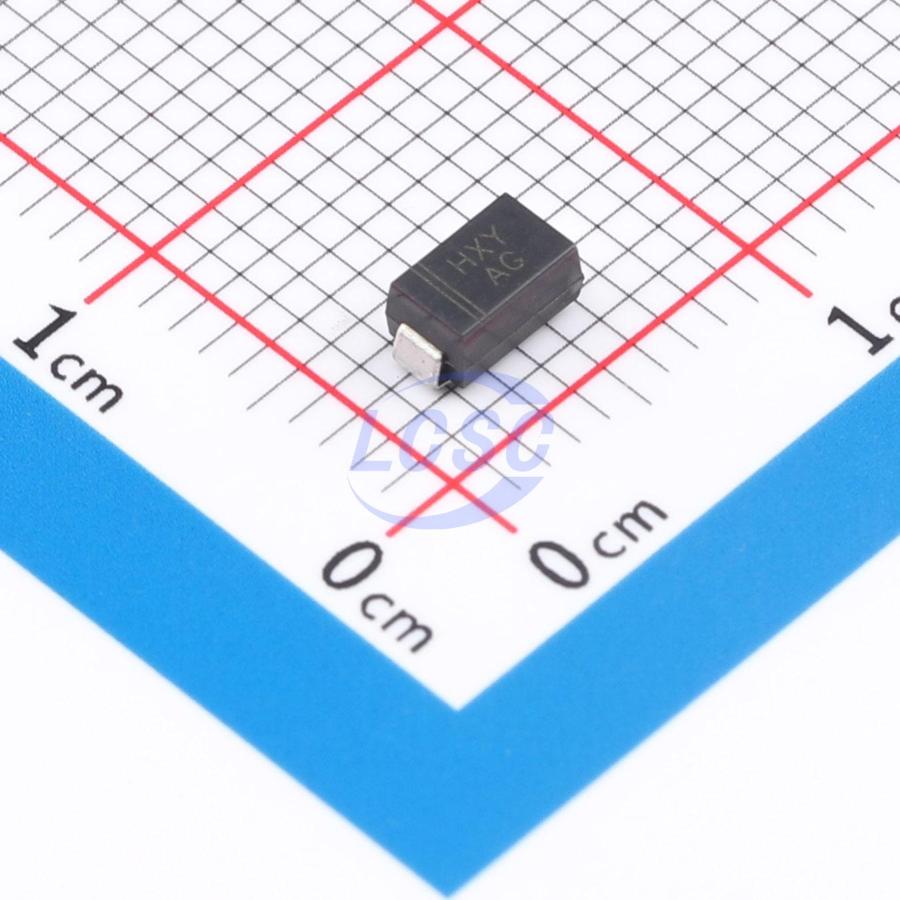

HSZ1SMA6.0AT3G
10.3VC Clamp 38.8A Ipp TVS DIODE SMA(DO-214AC)
SMA(DO-214AC)RoHSActive
TVS DIODE 6VWM 10.3VC SMA(DO-214AC)
- Manufacturer
- HXY MOSFET
- Manufacturer part #
- HSZ1SMA6.0AT3G
- Store part #
- C42401948
- Package / case
- SMA(DO-214AC)
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
255 in stock
#C42401948
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹32.89 | ₹164.45 |
| 50+ | ₹26.58 | ₹1,329.00 |
| 150+ | ₹23.87 | ₹3,580.50 |
| 500+ | ₹20.49 | ₹10,245.00 |
| 2,500+ | ₹19.00 | ₹47,500.00 |
| 5,000+ | ₹18.09 | ₹90,450.00 |
5 × ₹32.89
₹164.45
excl. GST
₹194.05 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
HSZ1SMA6.0AT3G
₹164.45 for 5 + GST
Specifications
- Clamping Voltage
- 10.3V
- Operating Temperature
- -65℃~+150℃
- Peak Pulse Current (Ipp)
- 38.8A
- Peak Pulse Power Dissipation (Ppp)
- 400W
- Number of Channels
- 1
- Voltage - Breakdown
- 6.67V;7.37V
- type
- TVS
- Polarity
- Unidirectional
- Reverse Leakage Current (Ir)
- 800uA
- Reverse Stand-Off Voltage (Vrwm)
- 6V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.084 g
