HTCSEMIDatasheet (PDF)

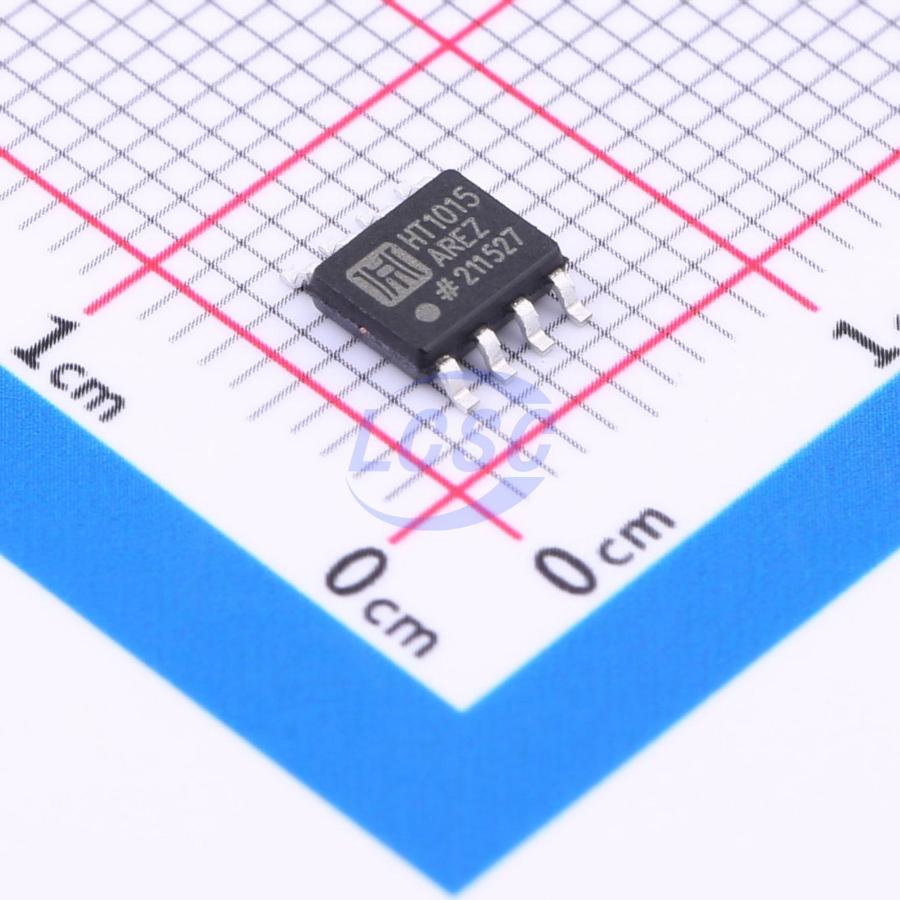

HT1015AREZ
150kHz Step-down type Adjustable 1A ESOP-8 Voltage Regulators - DC DC Switching Regulators
ESOP-8RoHSActive
High Voltage Non-Synchronous Step-Down Converter
- Manufacturer
- HTCSEMI
- Manufacturer part #
- HT1015AREZ
- Store part #
- C5274694
- Package / case
- ESOP-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,596 in stock
#C5274694
Stock & price checked 29 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹119.49 | ₹119.49 |
| 10+ | ₹91.68 | ₹916.80 |
| 30+ | ₹78.00 | ₹2,340.00 |
| 100+ | ₹64.10 | ₹6,410.00 |
1 × ₹119.49
₹119.49
excl. GST
₹141.00 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
HT1015AREZ
₹119.49 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Frequency - Switching
- 150kHz
- Function
- Step-down type
- Number of Outputs
- 1
- Features
- Cycle-by-cycle current limiting;Hiccup current limiting;Overcurrent Protection
- Output Type
- Adjustable
- Topology
- Buck
- Operating Voltage
- 9V~100V
- Switch tube (built-in/external)
- Built-in
- Output Current
- 1A
- Quiescent Current
- 500uA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.27 g
Overview
The HT1015A is a high voltage, non-synchronous step-down converter operates over a wide range input voltage 9V to 100V. The HT1015A integrates a 120-V 400-mΩ high-side MOSFET. The HT1015A delivers 1A continuous load current with up to 95% efficiency. The HT1015A operates with fixed frequency peak current control with built-in compensation eliminates the need for external components. Cycle-by-cycle current limit in high-side MOSFET protects the converter in an overload condition. Hiccup mode protection is triggered if the over-current condition has persisted for longer than the present time. The HT1015A exhibits protection features that protect the load from faults like under-voltage, over-current and over-temperature.
Applications
- Charger in vehicle
- Battery Chargers
- Power adapter
Key features
- 9V to 100V input voltage range
- 1.5A current limit
- 1A continuous load current
- 95% Peak Efficiency
- 400μA operating quiescent current
- 120V 400-mΩ high-side MOSFET
- Peak Current mode control
- 150 kHz Fixed Frequency
- Internal compensation for ease of use
- Up to 92% duty cycle
- 0.8V voltage reference
- 1μA shutdown current
- 150ms Hiccup mode short circuit protection
