HTCSEMI

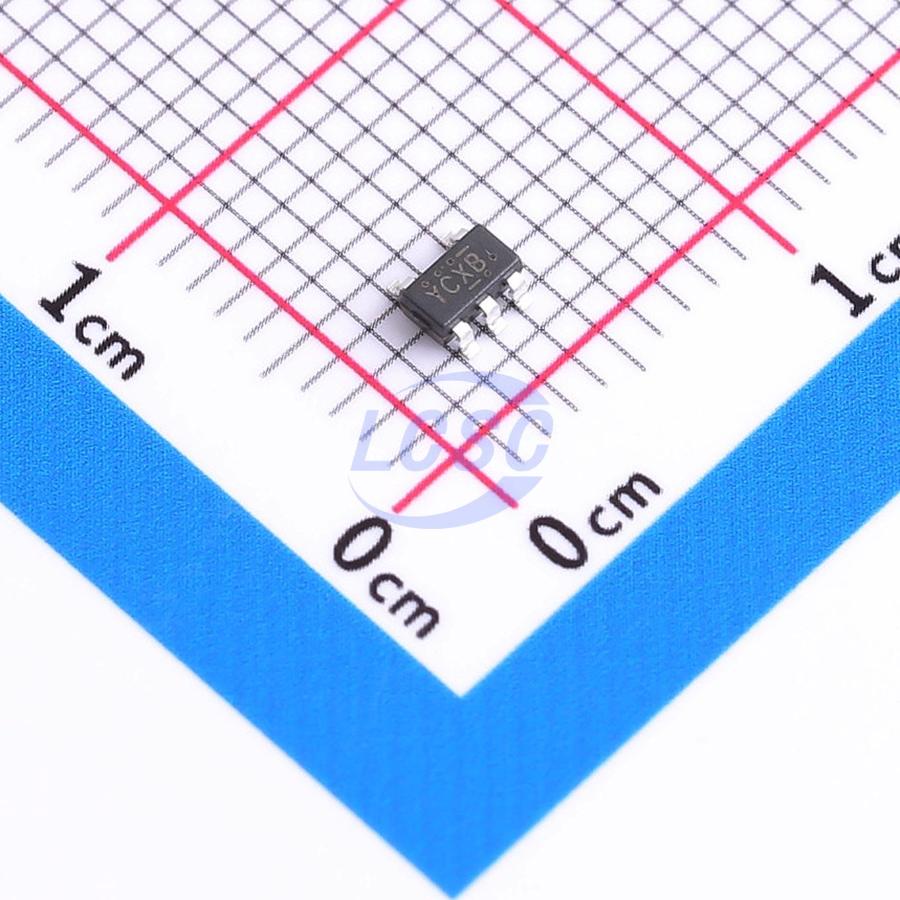

HT1541ARTZ

1MHz~1.6MHz Boost Adjustable 3V~22V 300mA SOT-23-5 Voltage Regulators - DC DC Switching Regulators

SOT-23-5RoHSActive

1.3MHz Fixed Frequency Boost Converter

Manufacturer: HTCSEMI
Manufacturer part #: HT1541ARTZ
Store part #: C2917532
Package / case: SOT-23-5
Category: Voltage Regulators - DC DC Switching Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

4,381 in stock

#C2917532

Stock & price checked 29 h ago

Quantity	Unit price	Pack price
1+	₹59.91	₹59.91
10+	₹48.62	₹486.20
30+	₹43.84	₹1,315.20
100+	₹37.77	₹3,777.00
500+	₹29.95	₹14,975.00
1,000+	₹28.22	₹28,220.00

Quantity (min 1)

1 × ₹59.91

₹59.91

excl. GST

₹70.69 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

HT1541ARTZ

₹59.91 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Operating Temperature: -40℃~+85℃@(TA)
Frequency - Switching: 1MHz~1.6MHz
Number of Outputs: 1
Function: Boost
Features: Overcurrent Protection
Output Type: Adjustable
Topology: Boost
Operating Voltage: 2.5V~6V
Switch tube (built-in/external): Built-in
Output Voltage: 3V~22V
Output Current: 300mA
Quiescent Current: 635uA

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Moisture sensitivity: MSL 1 (unlimited)
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.047 g

Overview

The HT1541 is a current mode step up converter intended for small, low power applications. The HT1541 switches at 1.3MHz and allows the use of tiny, low cost capacitors and inductors 2mm or less in height. Internal soft start results in small inrush current and extends battery life. The HT1541 operates from an input voltage as low as 2.5V and can generate 12V at up to 300mA from a 5V supply. The HT1541 includes under-voltage lockout, current limiting, and thermal overload protection to prevent damage in the event of an output overload. The HT1541 is available in a small 5-pin TSOT23 package or QFN-8 (2mmX2mm) package.

Applications

Camera Phone Flash
Handheld Computers and PDAs
Digital Still and Video Cameras
External Modems
Small LCD Displays
White LED Driver

Key features

On Board Power MOSFET
Uses Tiny Capacitors and Inductors
1.3MHz Fixed Switching Frequency
Internally Compensated
Internal Soft-Start Operates with Input Voltage as Low as 2.5V and Output Voltage as High as 22V 12V at 300mA from 5V Input
UVLO, Thermal Shutdown
Internal Current Limit Available in a TSOT23-5 Package or QFN-8 (2mmX2mm) Package
