HTCSEMIDatasheet (PDF)

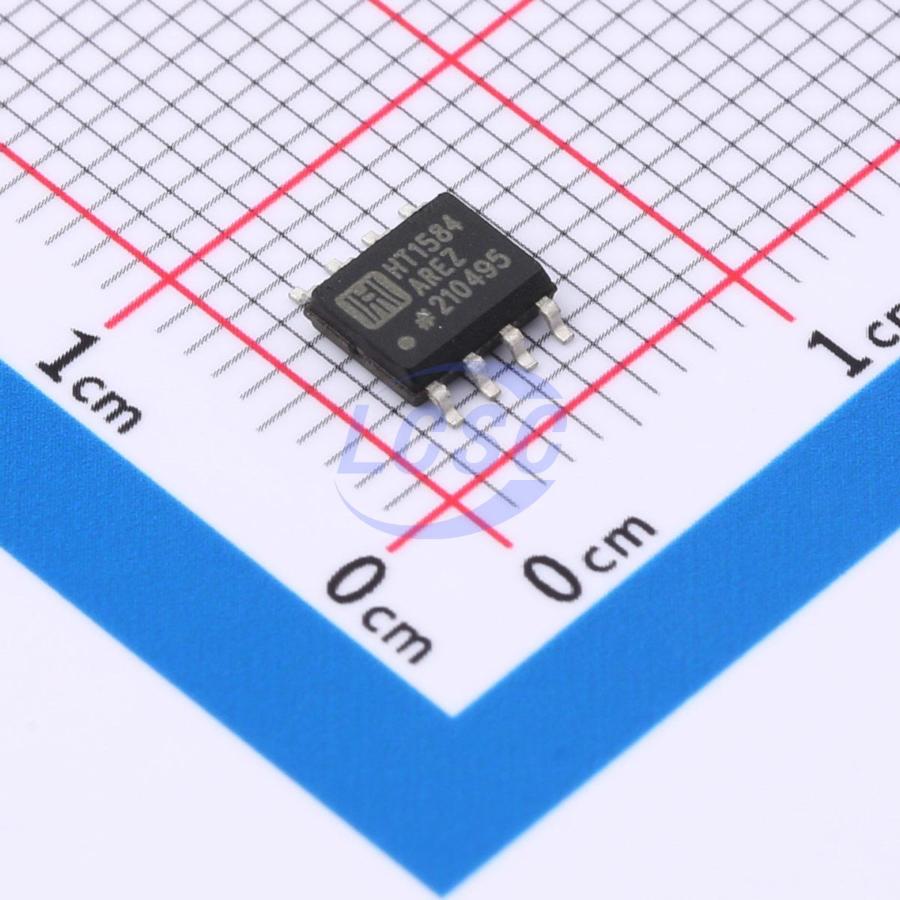

HT1584AREZ
Step-down type 1.5MHz Adjustable 800mV~25V 3A ESOP-8 Voltage Regulators - DC DC Switching Regulators
ESOP-8RoHSActive
3A, 1.5MHz Step-Down Converter
- Manufacturer
- HTCSEMI
- Manufacturer part #
- HT1584AREZ
- Store part #
- C5241935
- Package / case
- ESOP-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,078 in stock
#C5241935
Stock & price checked 24 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹91.38 | ₹91.38 |
| 10+ | ₹75.32 | ₹753.20 |
| 30+ | ₹67.50 | ₹2,025.00 |
| 100+ | ₹59.47 | ₹5,947.00 |
| 500+ | ₹46.24 | ₹23,120.00 |
| 1,000+ | ₹43.63 | ₹43,630.00 |
1 × ₹91.38
₹91.38
excl. GST
₹107.83 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
HT1584AREZ
₹91.38 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+150℃
- Function
- Step-down type
- Frequency - Switching
- 1.5MHz
- Number of Outputs
- 1
- Features
- Light load efficient mode;Overcurrent Protection
- Output Type
- Adjustable
- Topology
- Buck
- Operating Voltage
- 4.5V~28V
- Switch tube (built-in/external)
- Built-in
- Output Voltage
- 800mV~25V
- Output Current
- 3A
- Quiescent Current
- 100uA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.236 g
Overview
The HT1584 is a high frequency step-down switching regulator with an integrated internal high-side high voltage power MOSFET. It provides 3A output with current mode control for fast loop response and easy compensation. The wide 4.5V to 28V input range accommodates a variety of step-down applications, including those in an automotive input environment. A 100μA operational quiescent current allows use in battery-powered applications. High power conversion efficiency over a wide load range is achieved by scaling down the switching frequency at light load condition to reduce the switching and gate driving losses. The frequency foldback helps prevent inductor current runaway during startup and thermal shutdown provides reliable, fault tolerant operation. By switching at 1.5MHz, the HT1584 is able to prevent EMI (Electromagnetic Interference) noise problems, such as those found in AM radio and ADSL applications.
Applications
- High Voltage Power Conversion
- Automotive Systems
- Industrial Power Systems
- Distributed Power Systems
- Battery Powered Systems
Key features
- Wide 4.5V to 28V Operating Input Range
- Programmable Switching Frequency from 100kHz to 1.5MHz
- High-Efficiency Pulse Skipping Mode for Light Load
- Ceramic Capacitor Stable
- Internal Soft-Start
- Internally Set Current Limit without a Current Sensing Resistor
- Available in SOIC8E Package
