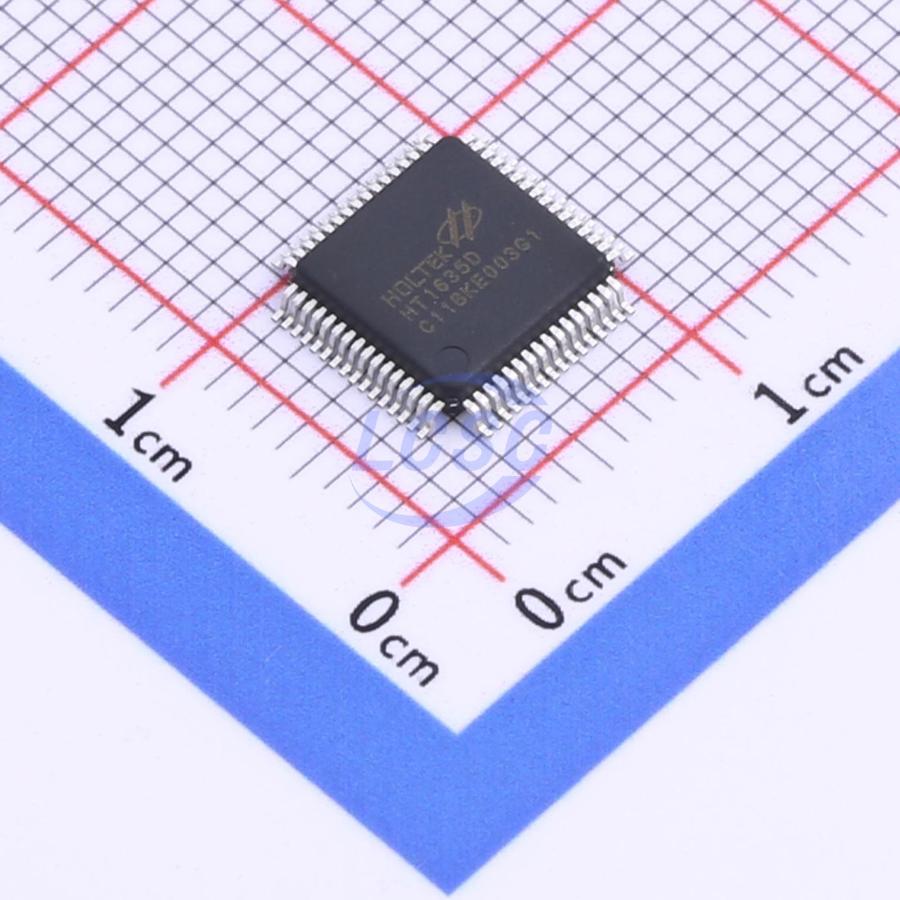

HT1635D

HT1635C/HT1635D are memory-mapped LED display controller/driver ICs. This series supports a maximum display mode of 352 dots, i.e., 44 rows × 8 columns. 16 levels of LED brightness can be achieved by adjusting the software-controlled PWM circuit. The ICs accept command mode and data mode instructions via a serial interface. Only 2 or 4 wires are required to connect the IC to a host controller. Display capacity can be easily expanded by daisy-chaining multiple ICs. These ICs communicate with most microcontrollers via I2C bus or 4-wire serial bus interface.

Applications

• Industrial control displays
• Digital clocks, thermometers, counters, electronic meters
• Meter readers
• Other consumer applications
• LED displays

Key features

• Operating voltage: 2.4V~5.5V
• LED display – 44 rows × 8 columns
• Up to 88×4-bit RAM for display data storage
• 16-level PWM brightness control
• Built-in 256kHz RC oscillator
• I2C bus interface or 4-wire serial interface
• Data mode and command mode instructions
• Cascade function for extended applications
• COM pins selectable as NMOS open-drain output drive or PMOS open-drain output drive
• Package type: 64-pin LQFP
