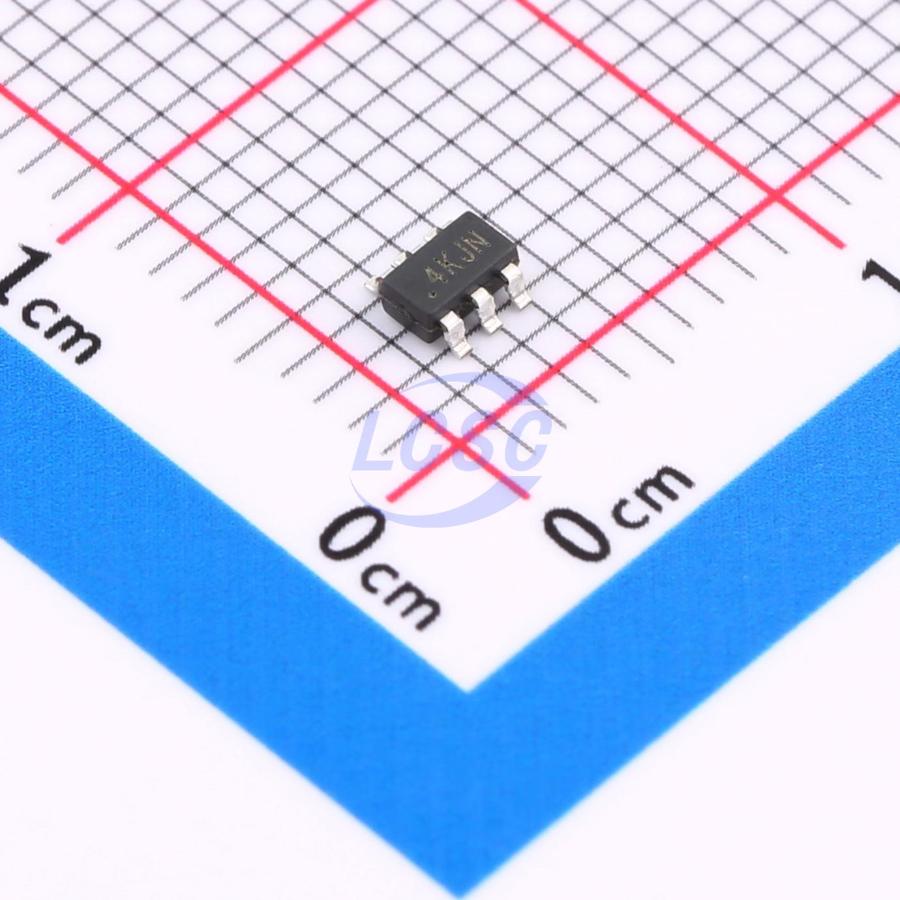

HT2451ARTZ
Buck Switching Regulator IC Adjustable 1 Output 0.6A SOT-23-6
SOT-23-6RoHSActive
36V, 2MHz, 0.6A Buck Power Supply
- Manufacturer
- HTCSEMI
- Manufacturer part #
- HT2451ARTZ
- Store part #
- C5158911
- Package / case
- SOT-23-6
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,085 in stock
#C5158911
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹45.86 | ₹229.30 |
| 50+ | ₹38.41 | ₹1,920.50 |
| 150+ | ₹35.21 | ₹5,281.50 |
| 500+ | ₹23.59 | ₹11,795.00 |
| 3,000+ | ₹21.82 | ₹65,460.00 |
| 6,000+ | ₹20.76 | ₹1,24,560.00 |
5 × ₹45.86
₹229.30
excl. GST
₹270.57 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
HT2451ARTZ
₹229.30 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+125℃
- Function
- Step-down type
- Frequency - Switching
- 2MHz
- Number of Outputs
- 1
- Features
- Cycle-by-cycle current limiting;Light load efficient mode;Built-in LDO regulator
- Output Type
- Adjustable
- Topology
- Buck
- Operating Voltage
- 3.3V~36V
- Switch tube (built-in/external)
- Built-in
- Output Voltage
- 800mV~28.8V
- Output Current
- 600mA
- Quiescent Current
- 230uA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.04 g
Overview
HT2451A is a high-frequency (2 MHz) step-down switching regulator with an integrated high-side high-voltage power MOSFET. It delivers a single-channel maximum output of 0.6A with high efficiency, achieving fast loop response via current-mode control. The wide input voltage range (3.3 V to 36 V) supports various step-down power conversion applications under mobile environment input conditions. A 1uA shutdown quiescent current makes it suitable for battery-powered applications. Under light-load conditions, switching frequency is reduced to minimize switching and gate drive losses, achieving high-efficiency power conversion across a wide load range. Frequency foldback technology helps prevent inductor current runaway during startup. Thermal shutdown provides reliable, fault-tolerant operation. Package: SOT23-6L.
Applications
- High-voltage power conversion
- Automotive systems
- Industrial power systems
- Distributed power systems
- Battery-powered systems
Key features
- 230µA quiescent operating current
- 3.3V to 36V wide operating voltage range
- 500mΩ internal power MOSFET
- 2MHz fixed switching frequency
- Internal compensation
- Ceramic output capacitor stabilization
- Internal soft-start
- Precision current limiting without sense resistor
- >90% efficiency
- Adjustable output from +0.8V to 0.8 x Vin
- Low shutdown current: <1µA
- 6-pin SOT23 package
