HTCSEMI

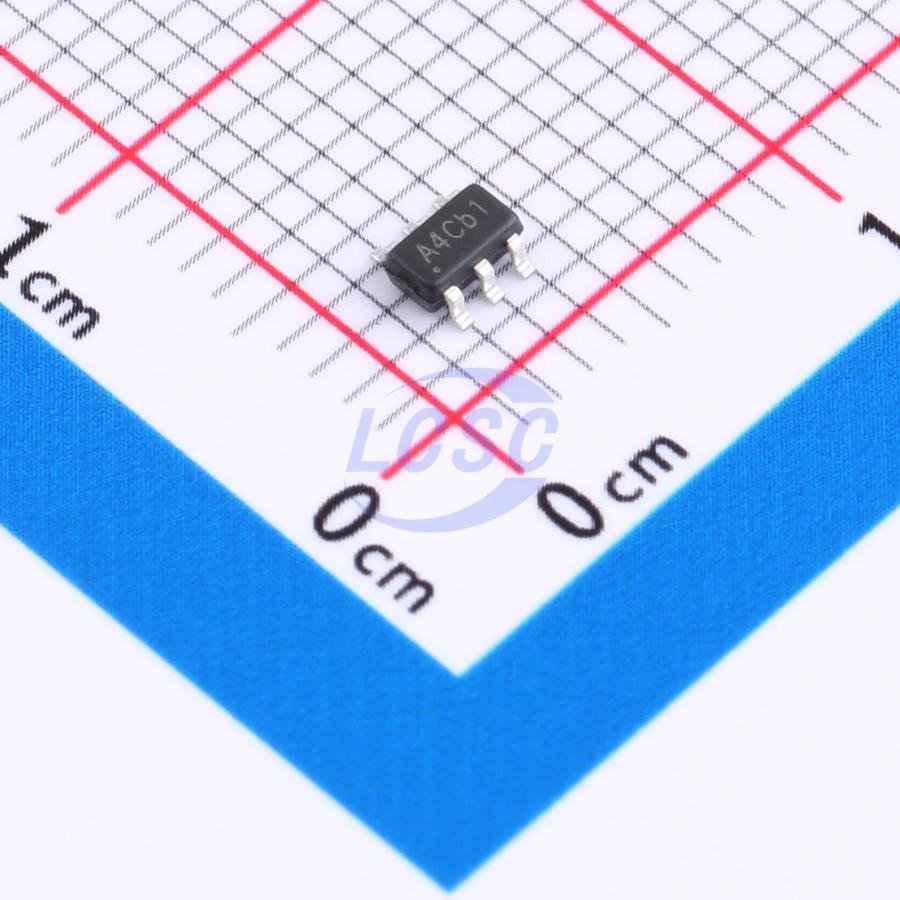

HT3302ARTZ

2.5V~35V 1.25MHz 1 Boost DC-DC 2.5V~7.5V SOT-23-6 LED Drivers ICs

SOT-23-6RoHSActive

Step-up White LED Driver

Manufacturer: HTCSEMI
Manufacturer part #: HT3302ARTZ
Store part #: C28646419
Package / case: SOT-23-6
Category: LED Drivers ICs
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,304 in stock

#C28646419

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
1+	₹59.92	₹59.92
10+	₹54.27	₹542.70
30+	₹51.54	₹1,546.20
100+	₹48.61	₹4,861.00
500+	₹46.94	₹23,470.00
1,000+	₹46.09	₹46,090.00

Quantity (min 1)

1 × ₹59.92

₹59.92

excl. GST

₹70.71 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

HT3302ARTZ

₹59.92 for 1 + GST

Specifications

Output Voltage: 2.5V~35V
Frequency - Switching: 1.25MHz
Switch Tube (Built-In/External): Built-in
Operating temperature: -40℃~+85℃
Number of Channels: 1
Topology: Boost
Type: DC-DC
Voltage - Input(DC): 2.5V~7.5V

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.04 g

Overview

The HT3302 is a 7.5V step-up DC/DC converter designed for driving up to single 10-series or 9x3-series WLEDs from a single cell Lithium Ion-battery. The HT3302 uses current mode, fixed frequency architecture to regulate the LED current, which is measured through an external current sense resistor. Its low 300mV feedback voltage reduces power loss and improves efficiency. The HT3302 supports high frequency PWM Dimming through EN pin. The HT3302 includes soft-start, under-voltage lockout, current limiting and thermal overload protections.
