HTCSEMIDatasheet (PDF)

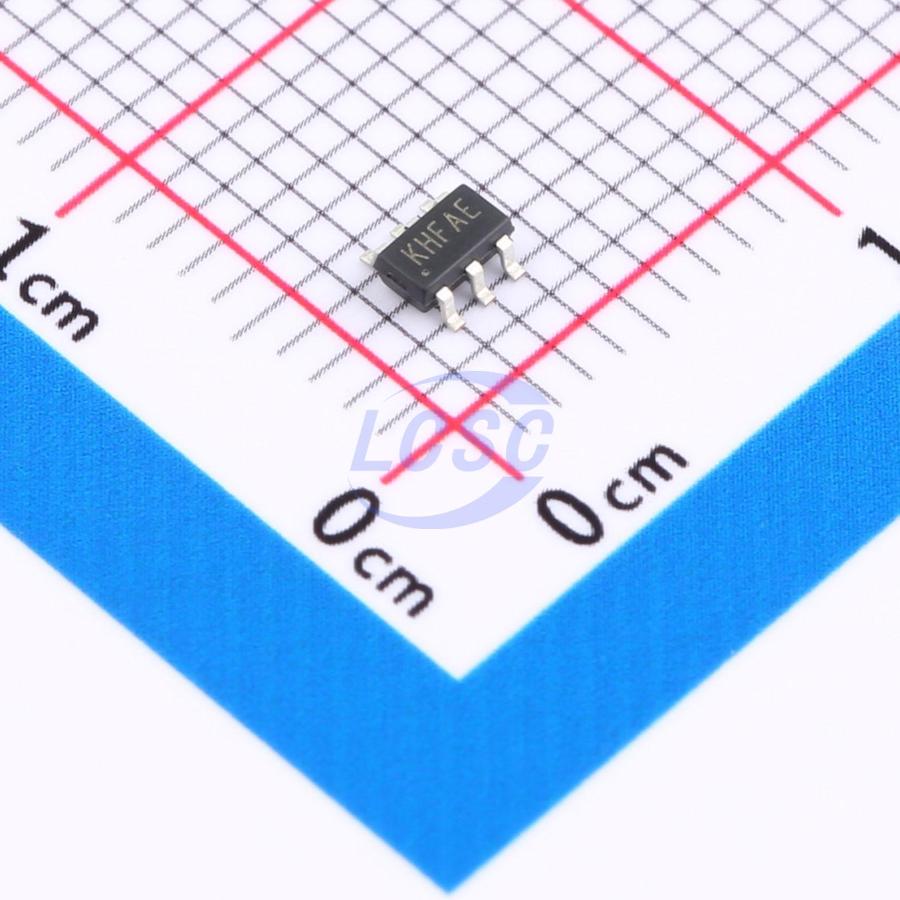

HT3715ARTZ
Boost Switching Regulator IC Adjustable 0.6V~18V 1 Output 1A SOT-23-6
SOT-23-6RoHSActive
18V Output 1.2MHz Boost Regulator
- Manufacturer
- HTCSEMI
- Manufacturer part #
- HT3715ARTZ
- Store part #
- C47326423
- Package / case
- SOT-23-6
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,510 in stock
#C47326423
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹17.19 | ₹85.95 |
| 50+ | ₹15.00 | ₹750.00 |
| 150+ | ₹14.08 | ₹2,112.00 |
| 500+ | ₹12.91 | ₹6,455.00 |
| 3,000+ | ₹12.38 | ₹37,140.00 |
| 6,000+ | ₹12.08 | ₹72,480.00 |
5 × ₹17.19
₹85.95
excl. GST
₹101.42 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
HT3715ARTZ
₹85.95 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+85℃@(TA)
- Frequency - Switching
- 1.2MHz
- Function
- Boost
- Number of Outputs
- 1
- Features
- Light load efficient mode;Overcurrent Protection
- Output Type
- Adjustable
- Topology
- Boost
- Operating Voltage
- 2.3V~5.5V
- Switch tube (built-in/external)
- Built-in
- Output Current
- 1A
- Output Voltage
- 600mV~18V
- Quiescent Current
- 150uA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.041 g
Overview
HT3715 is a highly integrated boost converter designed for applications requiring high-voltage and high-efficiency solutions. The device integrates a 20V power switch, enabling output up to 18V from a single-cell Li-ion battery or two series-connected alkaline batteries. The HT3715 operates at a switching frequency of 1.2MHz, allowing the use of small external components. It features a typical switch current limit of 4A and a built-in 1.5ms soft-start time to limit inrush current. The device also implements output short-circuit protection, output overvoltage protection, and thermal shutdown. The HT3715 is available in a compact SOT23-6 package.
Applications
- Wearable devices
- Sensor power supply
- Battery-powered devices
- Portable medical devices
Key features
- 2.3V to 5.5V input voltage
- Up to 18V output voltage
- Integrated 60mΩ power MOSFET
- 1.2MHz fixed switching frequency
- Internal 4A switch current limit
- Power-save mode at light load
- Internal 1.5ms soft-start time
- Up to 85% efficiency at 3.6V input, 12V output
- Output short-circuit protection
- Output overvoltage protection
- Thermal shutdown protection
- Output voltage adjustable from 0.6V
- -40℃ to +85℃ operating temperature range
- Available in SOT23-6 package
