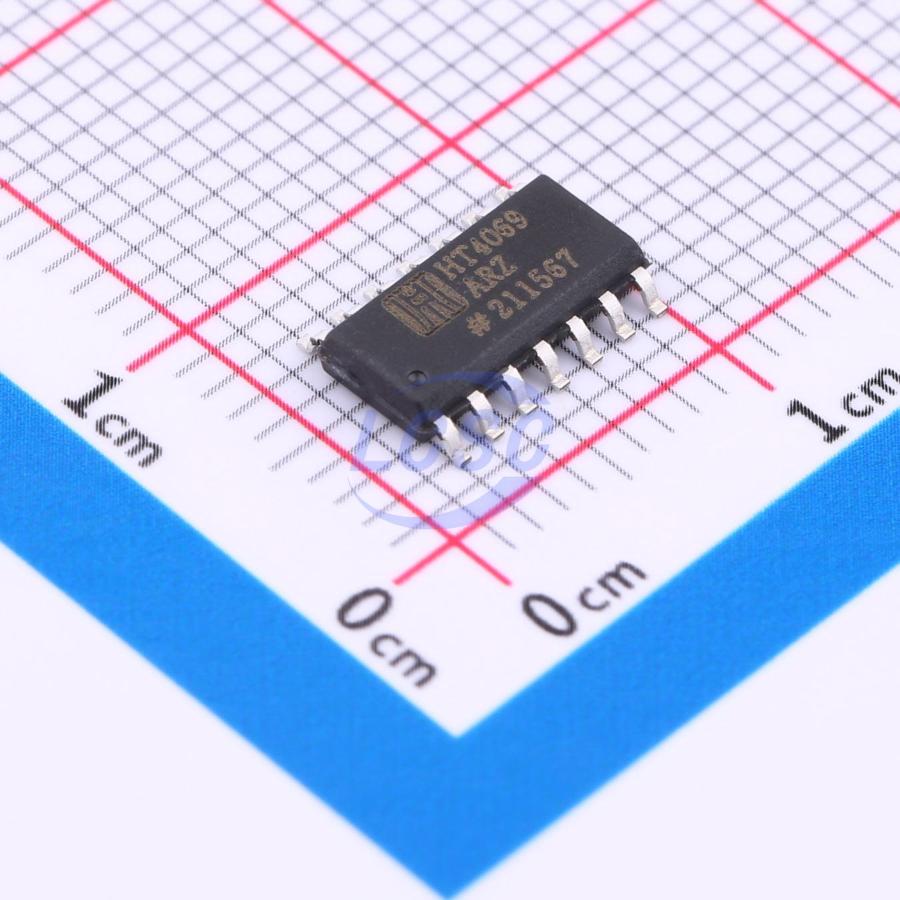

HTCSEMI

HT4069ARZ

6 3V~18V SOP-14 Analog Switches, Multiplexers, Demultiplexers

SOP-14RoHSActive

Hex Inverter High-Voltage Silicon-Gate CMOS

Manufacturer: HTCSEMI
Manufacturer part #: HT4069ARZ
Store part #: C2834436
Package / case: SOP-14
Category: Analog Switches, Multiplexers, Demultiplexers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,650 in stock

#C2834436

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
5+	₹17.21	₹86.05
50+	₹13.69	₹684.50
150+	₹11.93	₹1,789.50
500+	₹10.61	₹5,305.00
2,500+	₹9.55	₹23,875.00
5,000+	₹9.02	₹45,100.00

Quantity (min 5, multiples of 5)

5 × ₹17.21

₹86.05

excl. GST

₹101.54 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 2,500 per reel

HT4069ARZ

₹86.05 for 5 + GST

Specifications

Features: Fault protection
Operating Temperature: -55℃~+125℃
Number of Channels: 6
Voltage - Supply: 3V~18V
Propagation Delay: 50ns

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.27 g

Overview

The HT4069A types consist of six inverter circuits. These devices are intended for all general-purpose inverter applications medium-power TTL-drive and logic-level-conversion capabilities of circuits such as the HT4049B Hex Inverter/Buffers are not required.

Key features

Operating Voltage Range: 3.0 to 18 V
Maximum input current of 1 μA at 18 V over full package temperature range; 100 nA at 18 V and 25°C
Noise margin (over full package temperature range): 0.5 V min @ 5.0 V supply, 1.0 V min @ 10.0 V supply, 1.5 V min @ 15.0 V supply
