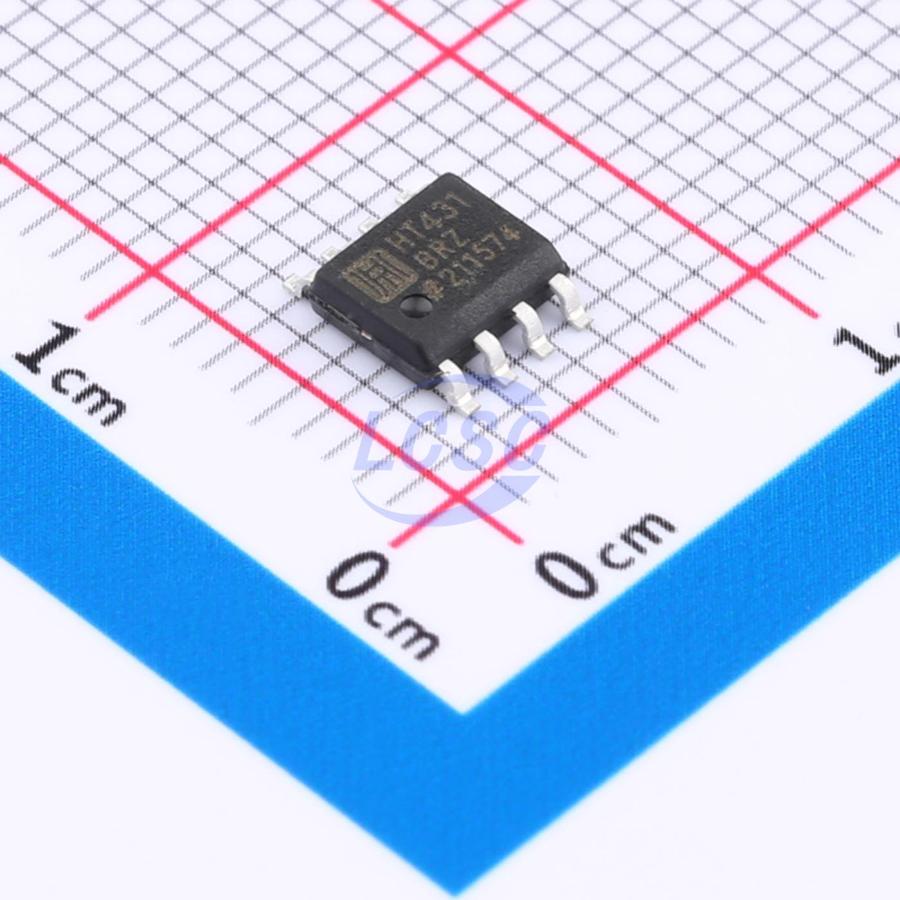

HTCSEMI

HT431BRZ

2.5V~40V ±1% 2.5V~40V 100mA Adjustable SOP-8 Voltage Reference

SOP-8RoHSActive

Programmable Precision Reference

Manufacturer: HTCSEMI
Manufacturer part #: HT431BRZ
Store part #: C5336211
Package / case: SOP-8
Category: Voltage Reference
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,475 in stock

#C5336211

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
5+	₹18.96	₹94.80
50+	₹15.56	₹778.00
150+	₹13.85	₹2,077.50
500+	₹12.58	₹6,290.00
2,500+	₹8.84	₹22,100.00
5,000+	₹8.33	₹41,650.00

Quantity (min 5, multiples of 5)

5 × ₹18.96

₹94.80

excl. GST

₹111.86 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 2,500 per reel

HT431BRZ

₹94.80 for 5 + GST

Specifications

Output Voltage: 2.5V~40V
Tolerance: ±1%
Voltage - Supply: 2.5V~40V
Minimum Cathode Current for Regulation: 250uA
Reference Type: Parallel
Output Current: 100mA
Operating Temperature: -25℃~+85℃
Features: Temperature compensation control
Output Type: Adjustable

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.15 g

Overview

The HT431 is a three-terminal adjustable regulator series with a guaranteed thermal stability over applicable temperature ranges. The output voltage may be set to any value between Vref (approximately 2.5 volts) and 40 volts with two external resistors. These devices have a typical dynamic output impedance of 0.2Ω. Active output circuitry provides a very sharp turn-on characteristic, making these devices excellent replacement for zener diodes in many applications. The HT431 is characterized for operation from -25℃ to +85℃.

Key features

Programmable Output Voltage to 40V
Low Dynamic Output Impedance 0.2Ω
Sink Current Capability of 0.1 mA to 100 mA
Equivalent Full-Range Temperature Coefficient of 50 ppm/°C
Temperature Compensated for Operation over Full Rated Operating Temperature Range
Low Output Noise Voltage
Fast Turn on Response
TO-92, SOP-8, SOT-23, SOT-89 packages
