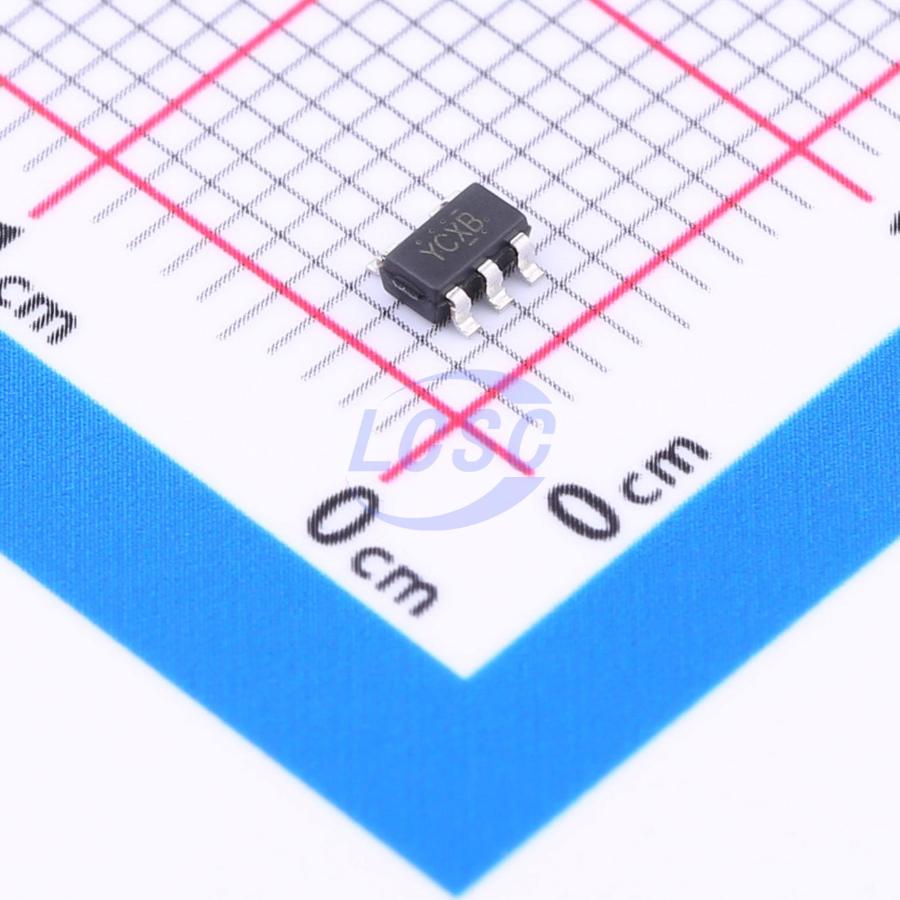

HTCSEMI

HT6311ARTZ

800kHz~1.2MHz Boost Adjustable SOT-23-5 Voltage Regulators - DC DC Switching Regulators

SOT-23-5RoHSActive

Step-Up DC/DC Converter for Driving OLEDs or White LEDs

Manufacturer: HTCSEMI
Manufacturer part #: HT6311ARTZ
Store part #: C5158909
Package / case: SOT-23-5
Category: Voltage Regulators - DC DC Switching Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,609 in stock

#C5158909

Stock & price checked 22 h ago

Quantity	Unit price	Pack price
1+	₹26.30	₹26.30
10+	₹20.82	₹208.20
30+	₹18.48	₹554.40
100+	₹15.55	₹1,555.00
500+	₹14.25	₹7,125.00
1,000+	₹12.30	₹12,300.00

Quantity (min 1)

1 × ₹26.30

₹26.30

excl. GST

₹31.03 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

HT6311ARTZ

₹26.30 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Operating Temperature: -40℃~+85℃
Frequency - Switching: 800kHz~1.2MHz
Function: Boost
Number of Outputs: 1
Features: Light load efficient mode
Output Type: Adjustable
Topology: Boost
Operating Voltage: 2.5V~5.5V
Switch tube (built-in/external): Built-in
Quiescent Current: 700uA

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Moisture sensitivity: MSL 1 (unlimited)
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.042 g

Overview

The HT6311A step-up DC/DC converter is optimized for driving OLEDs or white LEDs. It can provide an output voltage up to 24V. The device is capable of driving up to seven LEDs in series from a Lithium-Ion battery, with inherent current matching and uniform brightness. The HT6311A incorporates a 30V high voltage switch. The device operates at 1MHz and allows the use of few external components. The HT6311A is available in the tiny SOT23-5 package.
