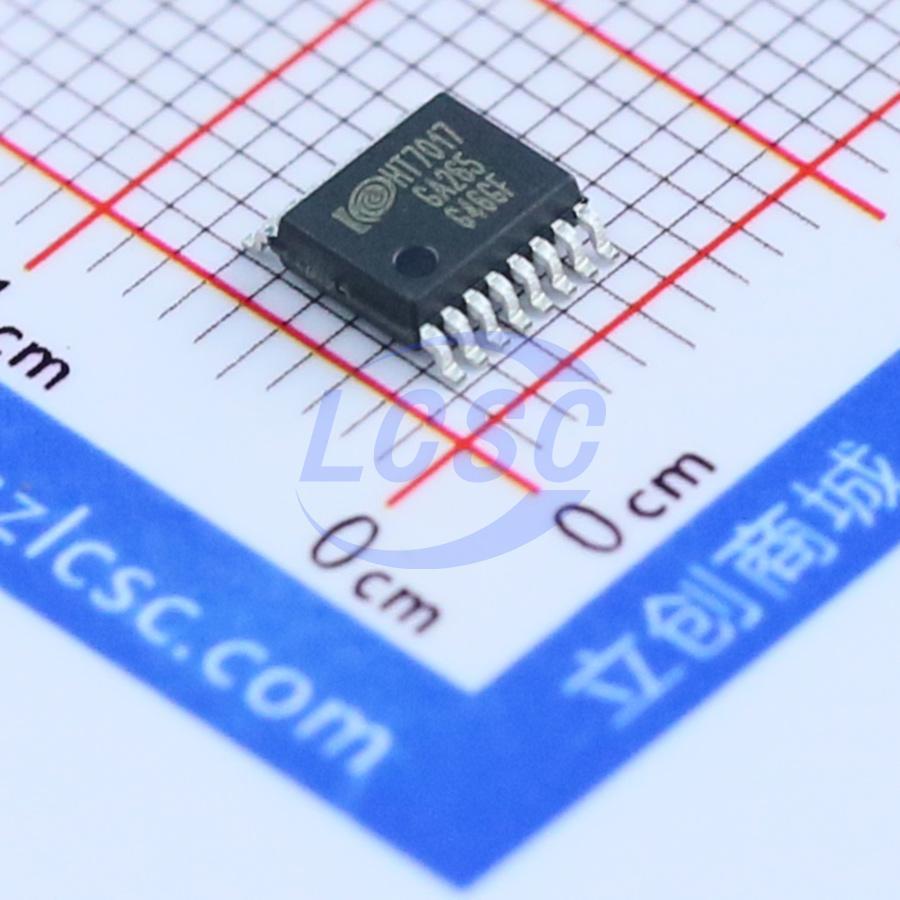

HT7017-F
3V~5.5V UART 4mA SSOP-16-150mil Energy Metering
SSOP-16-150milRoHSActive
- Manufacturer
- HiTrend Tech (Shanghai)
- Manufacturer part #
- HT7017-F
- Store part #
- C81511
- Package / case
- SSOP-16-150mil
- Category
- Energy Metering
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
6,016 in stock
#C81511
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹111.91 | ₹111.91 |
| 10+ | ₹90.84 | ₹908.40 |
| 30+ | ₹80.19 | ₹2,405.70 |
| 100+ | ₹69.54 | ₹6,954.00 |
| 500+ | ₹59.98 | ₹29,990.00 |
| 1,000+ | ₹56.72 | ₹56,720.00 |
1 × ₹111.91
₹111.91
excl. GST
₹132.05 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
HT7017-F
₹111.91 for 1 + GST
Specifications
- Clock Frequency
- 6MHz
- Operating Temperature
- -40℃~+85℃
- Voltage Reference Value
- 1.2V
- Voltage - Supply
- 3V~5.5V
- Dynamic Range
- 8000:1
- Function
- Pulse output;Interrupt control;Fault detection;Anti-tamper detection;FIFO buffer;Digital calibration and compensation
- Number of Channels
- 3
- Interface
- UART
- Current - Supply
- 4mA
- Meter Type
- Single-Phase Energy Metering IC
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.271 g
Overview
The new HT7017 is a high-precision single-phase multi-function metering IC with a UART communication interface. The chip supports a wide voltage range, with an operating voltage of 3.0 ~ 5.5V. The operating crystal frequency is 6MHz.
Key features
- Triple-channel 19-bit Sigma-Delta ADC
- 8000:1 dynamic range support
- Better small-signal accuracy than 5000:1 version
- Simultaneous active and reactive power measurement for two metering channels
- Active, reactive, apparent power and active energy pulse output
- Simultaneous RMS measurement for all three ADC channels and voltage channel frequency
- UART communication support
- Interrupt support: zero-crossing, sampling, energy pulse, calibration interrupts, etc.
- NORMAL full-speed operating current < 4mA
- Power supply monitoring
- Voltage sag (SAG) and peak detection (PEAK) support
- Enhanced metering reliability mechanism
- Manganese-copper missing live wire detection support
- CRC verification for calibration parameters
- 128-point ADC waveform buffer
- Package: SSOP16
