Jiaxing Heroic Elec Tech

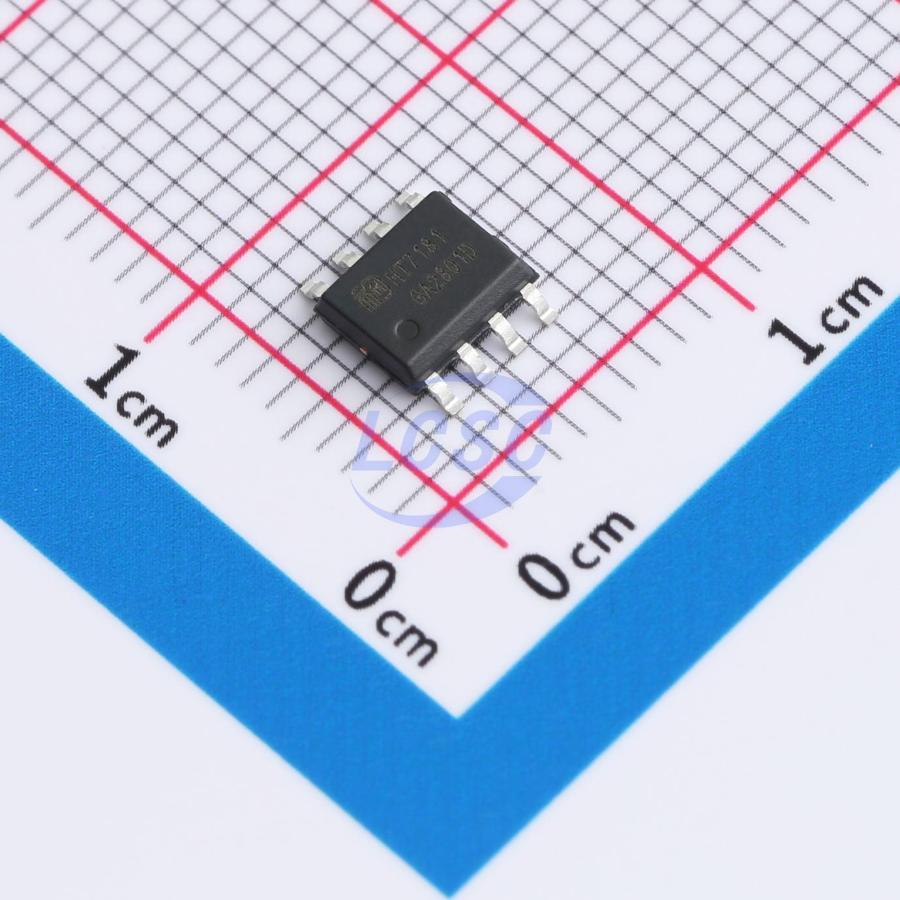

HT7181SPER

360kHz Boost Adjustable 1.204V~16.8V 14A SOP-8-EP Voltage Regulators - DC DC Switching Regulators RoHS

SOP-8-EPROHS CompliantActive

16.8V, 14A Boost Converter

Manufacturer: Jiaxing Heroic Elec Tech
Manufacturer part #: HT7181SPER
Store part #: C22391196
Package / case: SOP-8-EP
Category: Voltage Regulators - DC DC Switching Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,490 in stock

#C22391196

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
5+	₹38.80	₹194.00
50+	₹30.42	₹1,521.00
150+	₹26.83	₹4,024.50
500+	₹22.35	₹11,175.00
2,500+	₹20.35	₹50,875.00
5,000+	₹19.14	₹95,700.00

Quantity (min 5, multiples of 5)

5 × ₹38.80

₹194.00

excl. GST

₹228.92 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 2,500 per reel

HT7181SPER

₹194.00 for 5 + GST

Specifications

Operating Temperature: -40℃~+85℃@(TA)
Frequency - Switching: 360kHz
Function: Boost
Number of Outputs: 1
Features: Adjustable current limiting;Cycle-by-cycle current limiting;Adjustable soft-start;Light load efficient mode;External compensation
Output Type: Adjustable
Topology: Boost
Operating Voltage: 2.7V~16V
Switch tube (built-in/external): Built-in
Output Voltage: 1.204V~16.8V
Output Current: 14A
Quiescent Current: 300uA

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.228 g

Overview

The HT7181 is a high-power density, asynchronous boost converter with a 20mΩ power switch to provide a high efficiency and small size solution in portable systems. The HT7181 has wide input voltage range from 2.7V to 16V to support applications with single cell, two cell Lithium batteries and 12V lead - acid batteries. The device has 14A switch current capability and can provide an output voltage up to 16.8V. The HT7181 also implements a programmable soft - start function and an adjustable switching peak current limit function. HT7181 integrates two modes with different tr/tf to balance different requirements of EMI and efficiency. In addition, the device provides 18V output overvoltage protection, and thermal shutdown protection.

Applications

Wireless/ Speakers
Portable Speakers
Power Bank
Chargers
Power Interface (USB Type - C, Thunderbolt)
POS Terminal
Tablet PC/Note Book
Wireless Speakers
Portable Speakers
Power Bank
Charging Devices
USB TYPE - C Power Delivery
Trolley Speakers
Tablet PC, Notebook
POS Terminal

Key features

Input voltage range: 2.7V to 16V
Output voltage range: up to 16.8V
Internal Fixed PWM frequency: 360kHz
Programmable switch peak current limit: up to 14A
High conversion efficiency: 94% (VIN = 7.2V, VOUT = 9.3V, IOUT = 1.5A); 90% (VIN = 7.2V, VOUT = 9.3V, IOUT = 7A); 93% (VIN = 7.2V, VOUT = 12V, IOUT = 1.5A); 90% (VIN = 7.2V, VOUT = 12V, IOUT = 5.5A); 90% (VIN = 3.6V, VOUT = 12V, IOUT = 4A); 85% (VIN = 3.6V, VOUT = 12V, IOUT = 2.2A)
Low shutdown power consumption, shutdown current 1uA
Dual tr/tf modes for EMI mitigation
Programmable soft-start
Output overvoltage (18V) and thermal shutdown protection
SOP8L - PP lead-free package
