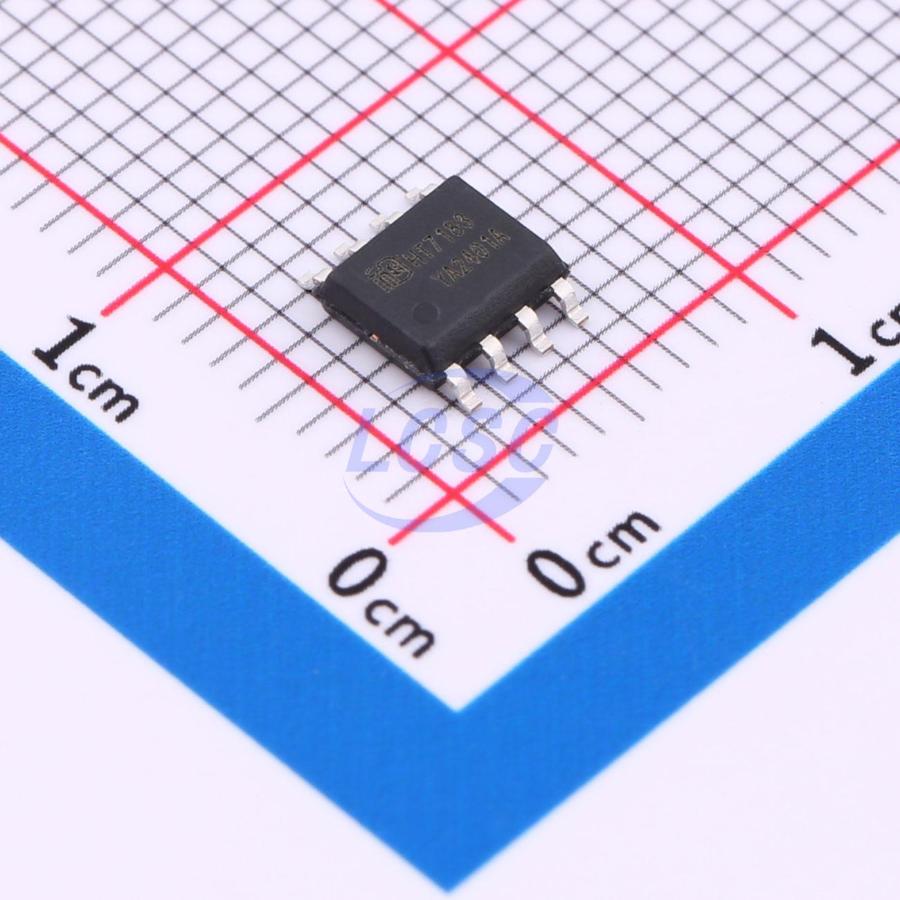

HT7183SPER
800kHz Boost Adjustable 600mV~16V 4.5A ESOP-8 Voltage Regulators - DC DC Switching Regulators RoHS
ESOP-8ROHS CompliantActive
16V, 4.5A Boost Converter
- Manufacturer
- Jiaxing Heroic Elec Tech
- Manufacturer part #
- HT7183SPER
- Store part #
- C22391197
- Package / case
- ESOP-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,060 in stock
#C22391197
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹20.23 | ₹101.15 |
| 50+ | ₹15.85 | ₹792.50 |
| 150+ | ₹13.96 | ₹2,094.00 |
| 500+ | ₹11.62 | ₹5,810.00 |
| 2,500+ | ₹10.57 | ₹26,425.00 |
| 5,000+ | ₹9.95 | ₹49,750.00 |
5 × ₹20.23
₹101.15
excl. GST
₹119.36 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
HT7183SPER
₹101.15 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+85℃@(TA)
- Frequency - Switching
- 800kHz
- Function
- Boost
- Number of Outputs
- 1
- Features
- Adjustable current limiting;Cycle-by-cycle current limiting;Adjustable soft-start;Overcurrent Protection;Light load efficient mode
- Output Type
- Adjustable
- Topology
- Boost
- Operating Voltage
- 2.6V~5.5V
- Switch tube (built-in/external)
- Built-in
- Output Voltage
- 600mV~16V
- Output Current
- 4.5A
- Quiescent Current
- 300uA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.229 g
Overview
The HT7183 is a high-power density, asynchronous boost converter with a 120mΩ power switch to provide a high efficiency and small size solution in portable systems. The HT7183 has input voltage range from 2.6 V to 5.5 V to support applications with different power supply. The device has 3A switch current capability and can provide an output voltage up to 16V. The HT7183 also implements a soft-start function and an adjustable switching peak current limit function. In addition, the device provides 20V output overvoltage protection, and thermal shutdown protection.
Applications
- Chargers
- LCD Displays
- Chargers
- LCD Displays
- Digital Cameras
- Handheld Devices
- Digital Cameras
- Handheld Devices
- Portable Products
- Portable Products
Key features
- Input voltage range: 2.6V - 5.5V
- Output voltage range: up to 16V
- Programmable peak current: 3A (SOT23-6), 4.5A (ESOP8)
- Low shutdown power consumption, shutdown current 0.1uA
- Programmable soft-start
- Output overvoltage (20V), thermal shutdown protection
- SOT23-6, ESOP8 lead-free packages
