Jiaxing Heroic Elec TechDatasheet (PDF)

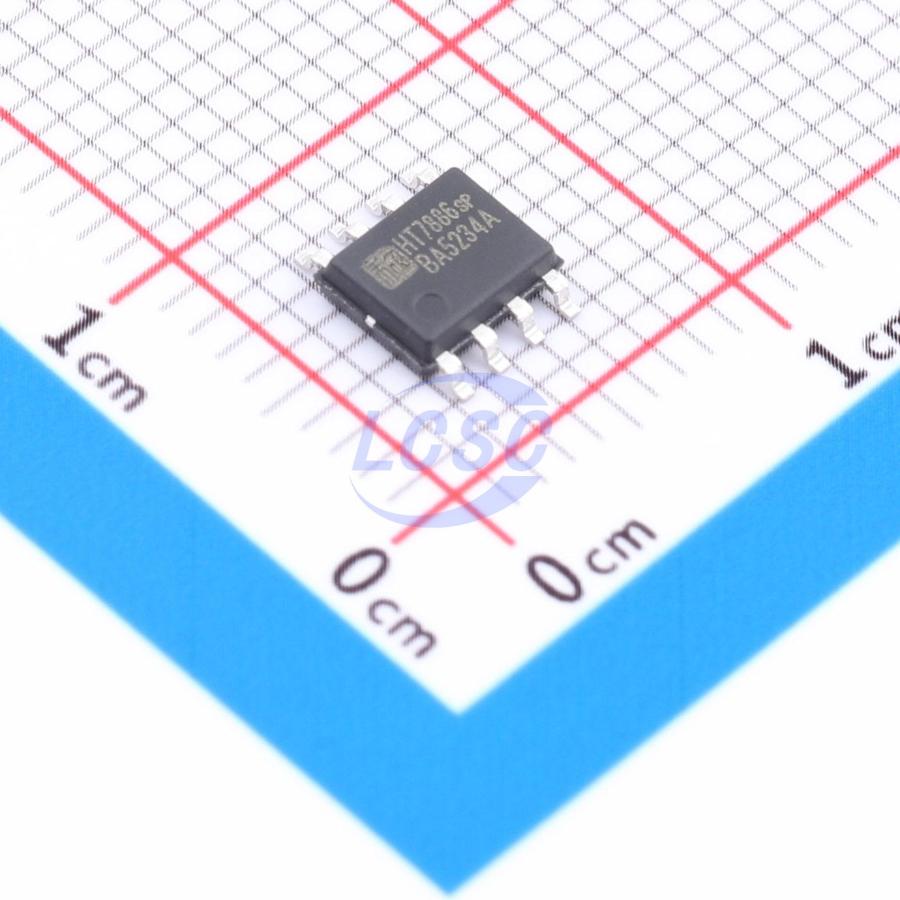

HT7886SPER
Step-down type 1MHz Adjustable 2A ESOP-8 Voltage Regulators - DC DC Switching Regulators
ESOP-8RoHSActive
- Manufacturer
- Jiaxing Heroic Elec Tech
- Manufacturer part #
- HT7886SPER
- Store part #
- C5377685
- Package / case
- ESOP-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
8,305 in stock
#C5377685
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹40.84 | ₹204.20 |
| 50+ | ₹32.27 | ₹1,613.50 |
| 150+ | ₹28.59 | ₹4,288.50 |
| 500+ | ₹24.00 | ₹12,000.00 |
| 2,500+ | ₹21.96 | ₹54,900.00 |
| 5,000+ | ₹20.73 | ₹1,03,650.00 |
5 × ₹40.84
₹204.20
excl. GST
₹240.96 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
HT7886SPER
₹204.20 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+125℃
- Function
- Step-down type
- Number of Outputs
- 1
- Frequency - Switching
- 1MHz
- Features
- Overcurrent Protection;Hiccup current limiting
- Output Type
- Adjustable
- Topology
- Buck
- Operating Voltage
- 5V~95V
- Switch tube (built-in/external)
- Built-in
- Output Current
- 2A
- Quiescent Current
- 200uA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.219 g
Overview
HT7886 is a high-voltage buck switching regulator capable of delivering up to 2A continuous current to the load. It integrates a high-voltage high-side power MOSFET with a typical current limit of 3.5A. The wide input voltage range of 5V to 100V suits a variety of buck applications, making it ideal for automotive, industrial, and lighting applications. Hysteretic voltage mode control is employed for ultra-fast transient response. Switching frequency up to 1MHz allows the use of compact components. Over-temperature shutdown and short-circuit protection ensure reliable, fault-tolerant operation. A quiescent current of 200µA makes the HT7886 suitable for battery-powered applications.
Applications
- EV control power supply
- Solar energy systems
- Automotive system power supply
- Industrial power supply
- High-power LED driver
Key features
- 5V to 100V wide input voltage range
- 3.5A typical peak switch current limit
- Hysteretic control: no compensation required
- Up to 1MHz switching frequency
- PWM dimming control input for LED applications
- Short-circuit protection with integrated high-side MOSFET
- 200µA quiescent current
- Thermal shutdown
- Package: lead-free, ESOP8
