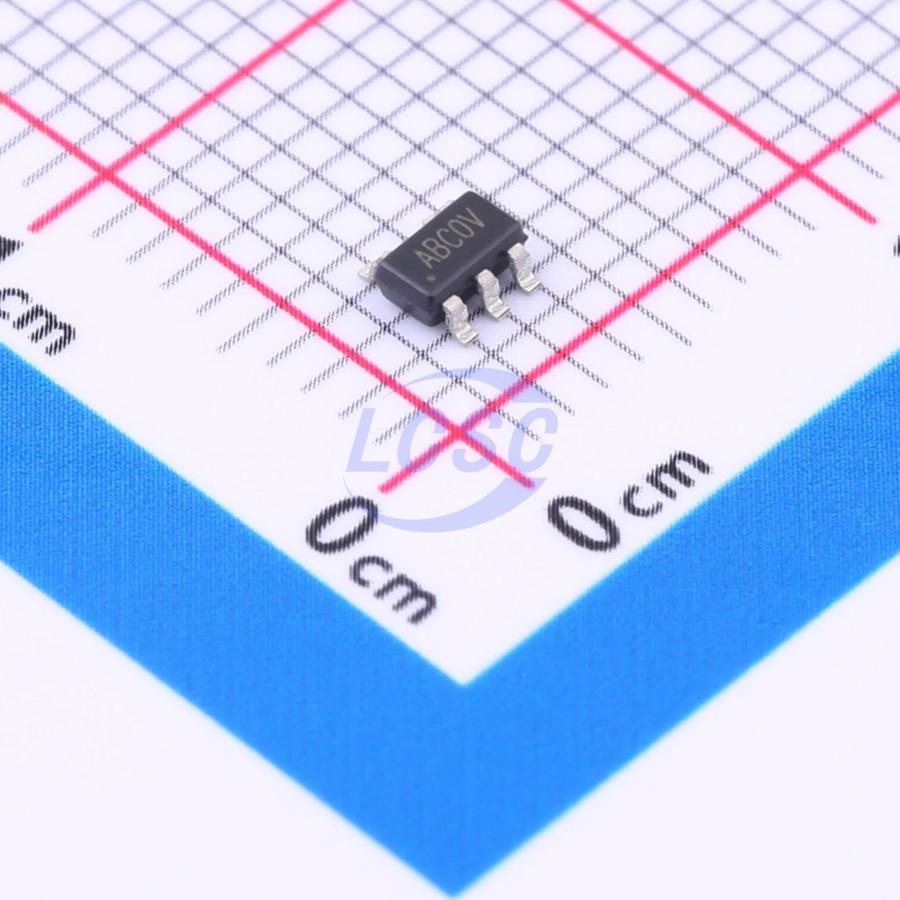

HTCSEMI

HT8096ARTZ

1.5MHz Step-down type Adjustable 1A SOT-23-5 Voltage Regulators - DC DC Switching Regulators

SOT-23-5RoHSActive

1.5MHz 1A Synchronous Step-Down Converter

Manufacturer: HTCSEMI
Manufacturer part #: HT8096ARTZ
Store part #: C5158910
Package / case: SOT-23-5
Category: Voltage Regulators - DC DC Switching Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,579 in stock

#C5158910

Stock & price checked 33 h ago

Quantity	Unit price	Pack price
1+	₹20.61	₹20.61
10+	₹16.29	₹162.90
30+	₹14.42	₹432.60
100+	₹12.12	₹1,212.00
500+	₹11.09	₹5,545.00
1,000+	₹10.46	₹10,460.00

Quantity (min 1)

1 × ₹20.61

₹20.61

excl. GST

₹24.32 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

HT8096ARTZ

₹20.61 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Operating Temperature: -40℃~+85℃
Frequency - Switching: 1.5MHz
Number of Outputs: 1
Function: Step-down type
Features: Light load efficient mode;Overcurrent Protection
Output Type: Adjustable
Topology: Buck
Operating Voltage: 2.5V~6V
Switch tube (built-in/external): Built-in
Output Current: 1A
Quiescent Current: 40uA

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Moisture sensitivity: MSL 1 (unlimited)
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.042 g

Overview

The HT8096A is a high-efficiency monolithic synchronous buck regulator using a constant frequency, current mode architecture. Supply current with no load is 40μA and drops to <1μA in shutdown. The 2.5V to 6V input voltage range makes the HT8096A ideally suited for single Li-Ion battery powered applications. 100% duty cycle provides low dropout operation, extending battery life in portable systems. PWM/PFM mode operation provides very low output ripple voltage for noise sensitive applications. Switching frequency is internally set at 1.5MHz, allowing the use of small surface mount inductors and capacitors. Low output voltages are easily supported with the 0.6V feedback reference voltage. The HT8096A is offered in a low profile (1mm) 5-pin, thin SOT package, and is available in an adjustable version.
