HTCSEMI

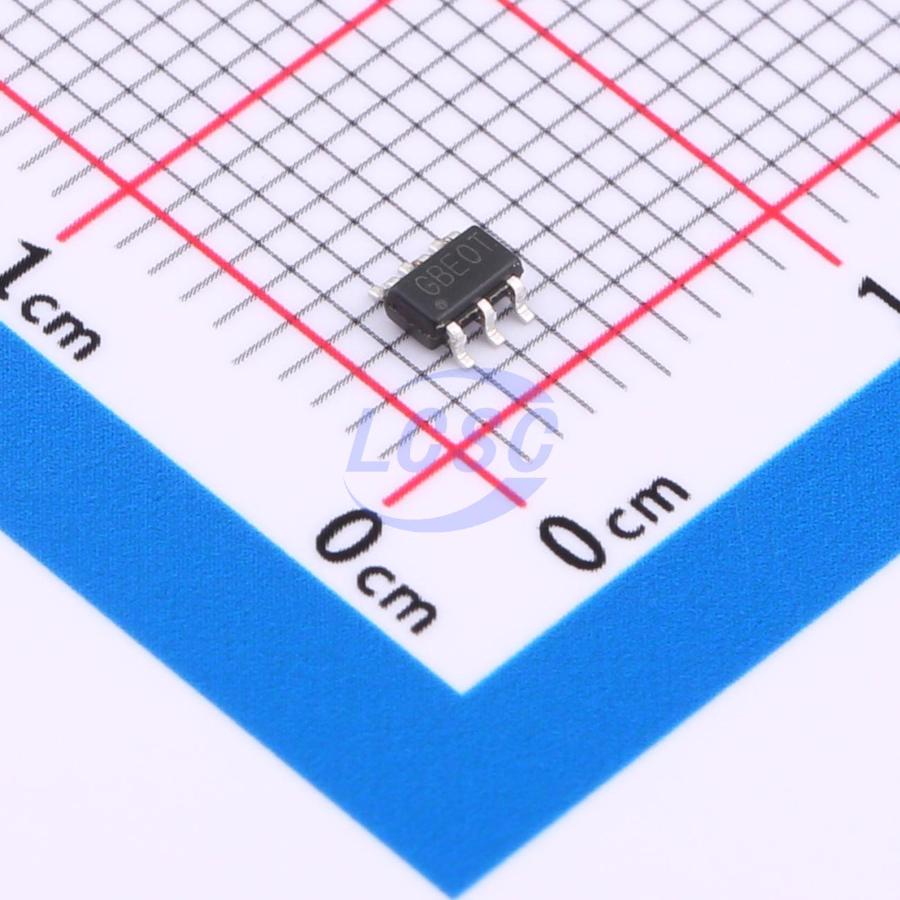

HT8259ARTZ

1.4MHz Step-down type Adjustable 800mV~15V 1.2A SOT-23-6 Voltage Regulators - DC DC Switching Regulators

SOT-23-6RoHSActive

High Voltage Buck Converter

Manufacturer: HTCSEMI
Manufacturer part #: HT8259ARTZ
Store part #: C5241933
Package / case: SOT-23-6
Category: Voltage Regulators - DC DC Switching Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,352 in stock

#C5241933

Stock & price checked 45 h ago

Quantity	Unit price	Pack price
1+	₹37.30	₹37.30
10+	₹29.09	₹290.90
30+	₹25.57	₹767.10
100+	₹21.19	₹2,119.00
500+	₹19.24	₹9,620.00
1,000+	₹18.07	₹18,070.00

Quantity (min 1)

1 × ₹37.30

₹37.30

excl. GST

₹44.01 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

HT8259ARTZ

₹37.30 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Operating Temperature: -40℃~+85℃@(TA)
Frequency - Switching: 1.4MHz
Function: Step-down type
Number of Outputs: 1
Features: Cycle-by-cycle current limiting;Overcurrent Protection
Output Type: Adjustable
Topology: Buck
Operating Voltage: 4.5V~24V
Switch tube (built-in/external): Built-in
Output Voltage: 800mV~15V
Output Current: 1.2A
Quiescent Current: 550uA

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Moisture sensitivity: MSL 1 (unlimited)
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.046 g

Overview

The HT8259 is a high voltage buck converter that can support the input voltage range from 4.5V to 24V and the output current can be up to 1.2A. Current Mode operation provides fast transient response and eases loop stabilization. The chip also provides protection functions such as cycle-by-cycle current limiting and thermal shutdown protection. The HT8259 is available in a SOT-23-6 and TSOT-23-6 packages.
