TDSEMIC

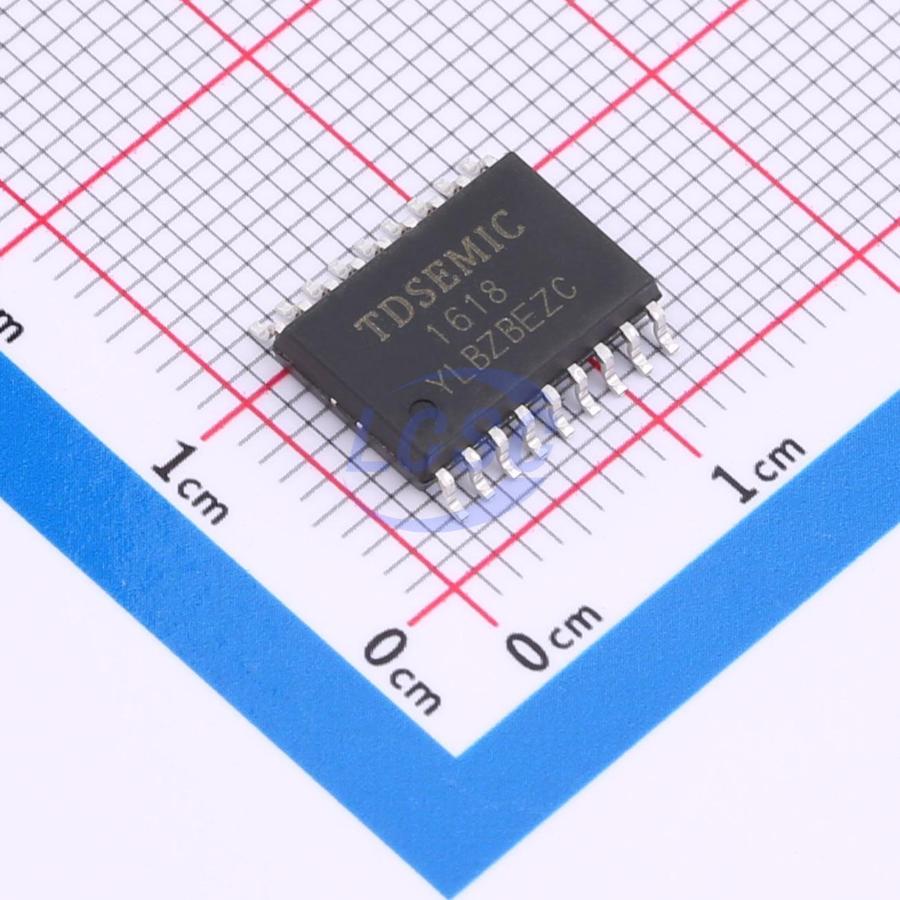

HTM1618

2.8V~5.5V SOP-18 LED Drivers ICs RoHS

SOP-18ROHS CompliantActive

LED driver control circuit

Manufacturer: TDSEMIC
Manufacturer part #: HTM1618
Store part #: C46683635
Package / case: SOP-18
Category: LED Drivers ICs
Packaging: Tube-packed

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,772 in stock

#C46683635

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
6+	₹23.02	₹138.12
60+	₹20.20	₹1,212.00
180+	₹18.99	₹3,418.20
612+	₹17.48	₹10,697.76
2,880+	₹16.82	₹48,441.60
5,760+	₹16.41	₹94,521.60

Quantity (min 6, multiples of 6)

6 × ₹23.02

₹138.12

excl. GST

₹162.98 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 36 per tube

HTM1618

₹138.12 for 6 + GST

Specifications

Features: Keyboard scanning
Switch Tube (Built-In/External): Built-in
Operating temperature: -40℃~+85℃
Voltage - Input(DC): 2.8V~5.5V

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Packaging: Tube-packed
Standard pack: 36 / Tube
Sold per: Piece
Minimum order: 6 (multiples of 6)
Unit weight: 0.923 g

Overview

The HTM16 series are LED display controller driver ICs, internally integrating a MCU digital interface, data latches, LED drivers, and optional key scanning circuits, forming a highly reliable peripheral LED driver circuit for microcontrollers. Serial data is input to the chip via a 3-wire serial interface, with multiple package options available for user selection.

Applications

Smart water heater
Microwave oven
Washing machine
Air conditioner
Smart meter

Key features

Operating voltage: 2.8V~5.5V
CMOS process
Multiple display modes: configurable segment and digit count (4~7 digits, 5~13 segments)
Key scan: up to 10×2 matrix
8-level brightness adjustment circuit
3-wire serial interface
Built-in RC oscillator
