TDSEMIC

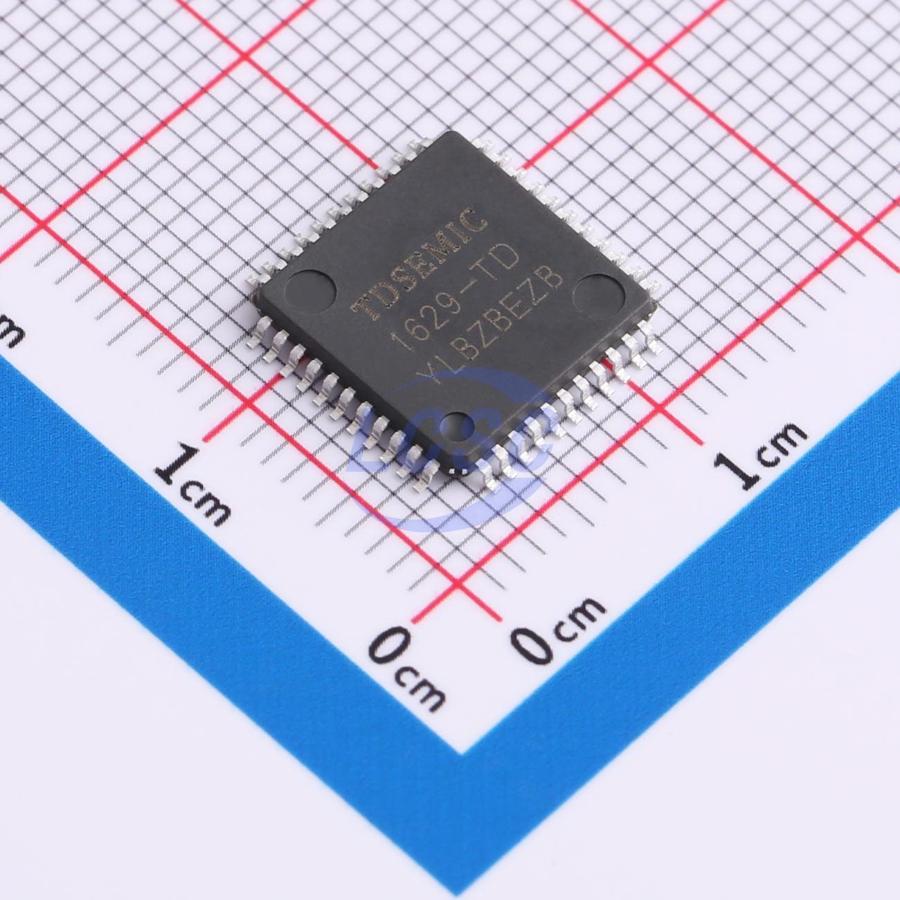

HTM1629-TD

300kHz 8 150mA 3V~5.5V LQFP-44(10x10) LED Drivers ICs RoHS

LQFP-44(10x10)ROHS CompliantActive

Special circuit for serial port common cathode keyboard scanning and LED drive control

Manufacturer: TDSEMIC
Manufacturer part #: HTM1629-TD
Store part #: C42464422
Package / case: LQFP-44(10x10)
Category: LED Drivers ICs
Packaging: Tray

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,605 in stock

#C42464422

Stock & price checked 2 days ago

Quantity	Unit price	Pack price
5+	₹35.19	₹175.95
50+	₹30.83	₹1,541.50
160+	₹28.95	₹4,632.00
480+	₹26.62	₹12,777.60
2,560+	₹25.57	₹65,459.20
4,960+	₹24.95	₹1,23,752.00

Quantity (min 5, multiples of 5)

5 × ₹35.19

₹175.95

excl. GST

₹207.62 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 160 per tray

HTM1629-TD

₹175.95 for 5 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Features: Keyboard scanning
Frequency - Switching: 300kHz
Switch Tube (Built-In/External): Built-in
Operating temperature: -40℃~+85℃
Number of Channels: 8
Output Current: 150mA
Voltage - Input(DC): 3V~5.5V

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Moisture sensitivity: MSL 2 (1 year)
Packaging: Tray
Standard pack: 160 / Tray
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 1.326 g

Overview

This device is a serial interface, common-cathode LED driver controller IC supporting up to 16-segment 8-digit display with integrated 8×4 keyboard scanning. It incorporates a keyboard scan interface, MCU digital interface, data latches, and LED driver circuits, making it suitable for various LED display panel applications.
