TDSEMIC

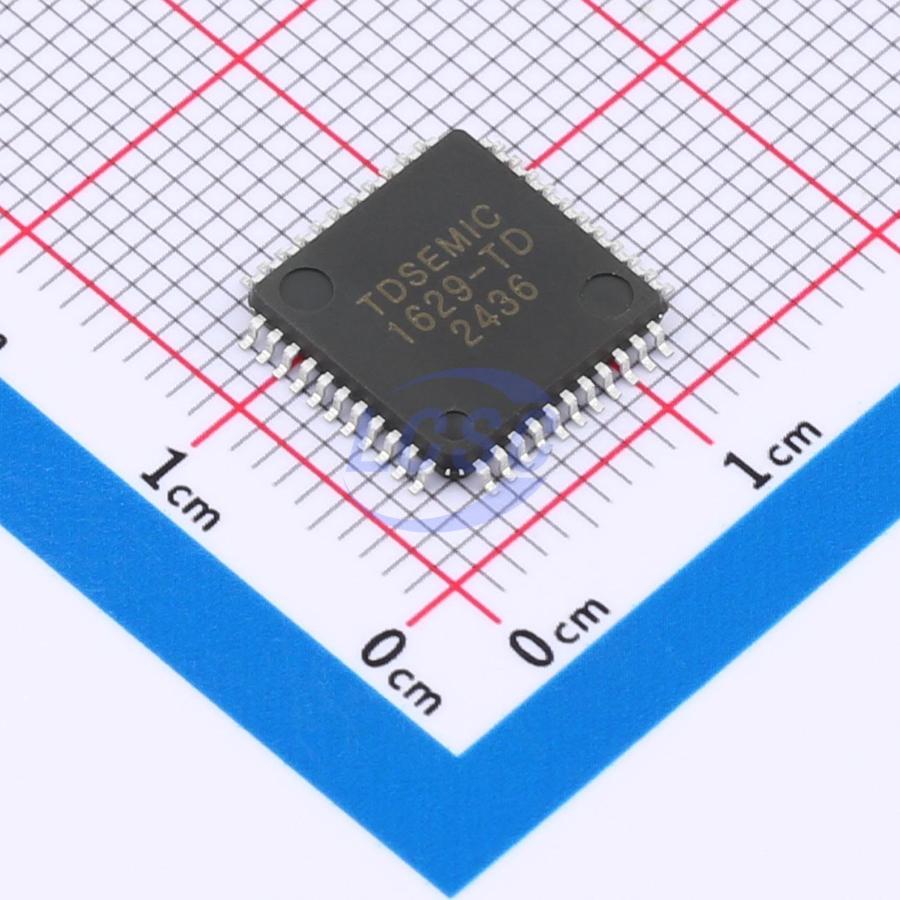

HTM1629F-TD

300kHz 3V~5.5V LQFP-44(10x10) LED Drivers ICs RoHS

LQFP-44(10x10)ROHS CompliantActive

Special circuit for serial port common cathode keyboard scanning and LED drive control

Manufacturer: TDSEMIC
Manufacturer part #: HTM1629F-TD
Store part #: C42441817
Package / case: LQFP-44(10x10)
Category: LED Drivers ICs
Packaging: Tray

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,010 in stock

#C42441817

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
5+	₹49.52	₹247.60
50+	₹39.04	₹1,952.00
160+	₹34.54	₹5,526.40
480+	₹28.95	₹13,896.00
2,560+	₹26.45	₹67,712.00
4,960+	₹24.95	₹1,23,752.00

Quantity (min 5, multiples of 5)

5 × ₹49.52

₹247.60

excl. GST

₹292.17 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 160 per tray

HTM1629F-TD

₹247.60 for 5 + GST

Specifications

Features: Keyboard scanning
Frequency - Switching: 300kHz
Switch Tube (Built-In/External): Built-in
Operating temperature: -40℃~+85℃
Voltage - Input(DC): 3V~5.5V

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Packaging: Tray
Standard pack: 160 / Tray
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.35 g

Overview

HTM1638-TD, HTM1639-TD, HTM1629A-TD/HTM1629B-TD/HTM1629C-TD/HTM1629D-TD/HTM1629F-TD/HTM1629E-TD series are dedicated LED driver control ICs featuring a serial interface, common-cathode configuration, up to 16-segment 8-digit display with 8×4 keyboard scanning. Each device integrates a keyboard scanning interface, MCU digital interface, data latch, and LED driver circuitry, making them widely applicable to various LED panel applications.
