TDSEMICDatasheet (PDF)

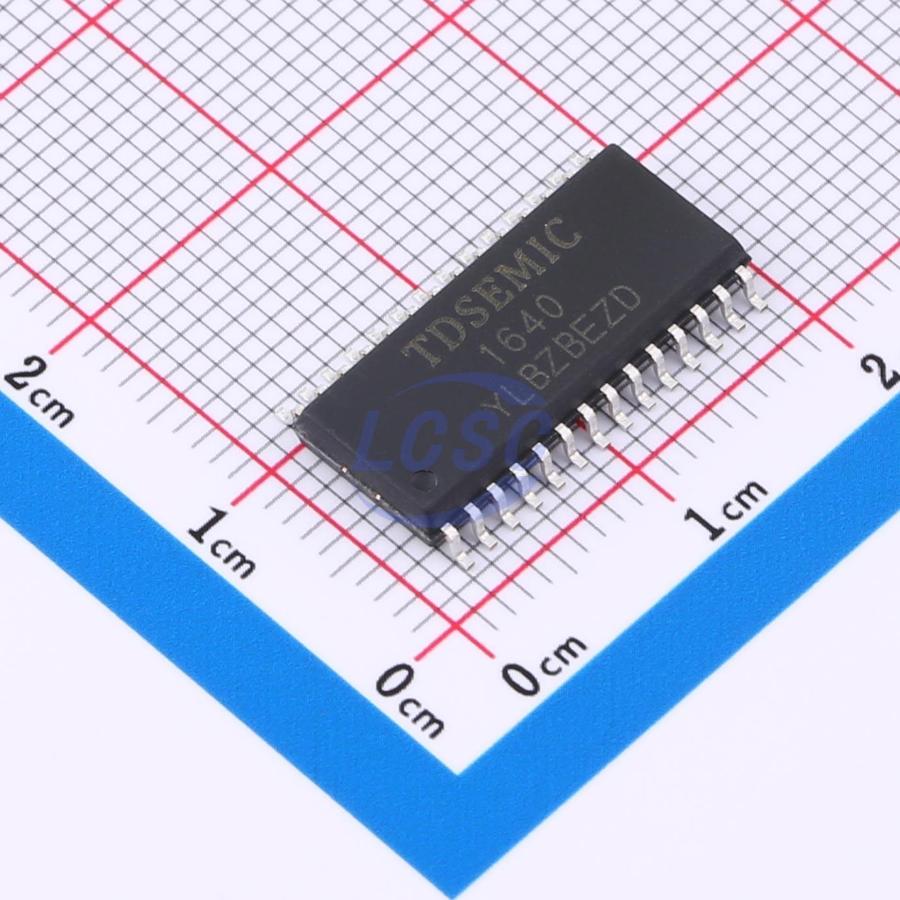

HTM1640-TD
LED Driver IC 16 Output SOP-28
SOP-28RoHSActive
- Manufacturer
- TDSEMIC
- Manufacturer part #
- HTM1640-TD
- Store part #
- C48542721
- Package / case
- SOP-28
- Category
- LED Drivers ICs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,095 in stock
#C48542721
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹18.76 | ₹93.80 |
| 50+ | ₹16.43 | ₹821.50 |
| 150+ | ₹15.44 | ₹2,316.00 |
| 500+ | ₹14.20 | ₹7,100.00 |
| 2,000+ | ₹13.64 | ₹27,280.00 |
| 4,000+ | ₹13.31 | ₹53,240.00 |
5 × ₹18.76
₹93.80
excl. GST
₹110.68 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 25 per tube
HTM1640-TD
₹93.80 for 5 + GST
Specifications
- Switch Tube (Built-In/External)
- Built-in
- Operating temperature
- -40℃~+85℃
- Number of Channels
- 16
- Output Current
- 140mA
- Voltage - Input(DC)
- 4.5V~5.5V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tube-packed
- Standard pack
- 25 / Tube
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 1.432 g
Overview
HTDM1640 is a dedicated LED driver control circuit integrating an MCU digital interface, data latch, and LED driver circuitry.
Key features
- CMOS process
- Display mode (8 segments × 16 digits)
- Brightness adjustment circuit (8-level adjustable duty cycle)
- 2-wire serial interface (CLK, DIO)
- Built-in RC oscillator
- Built-in power-on reset circuit
- Package: SOP28, SSOP28
