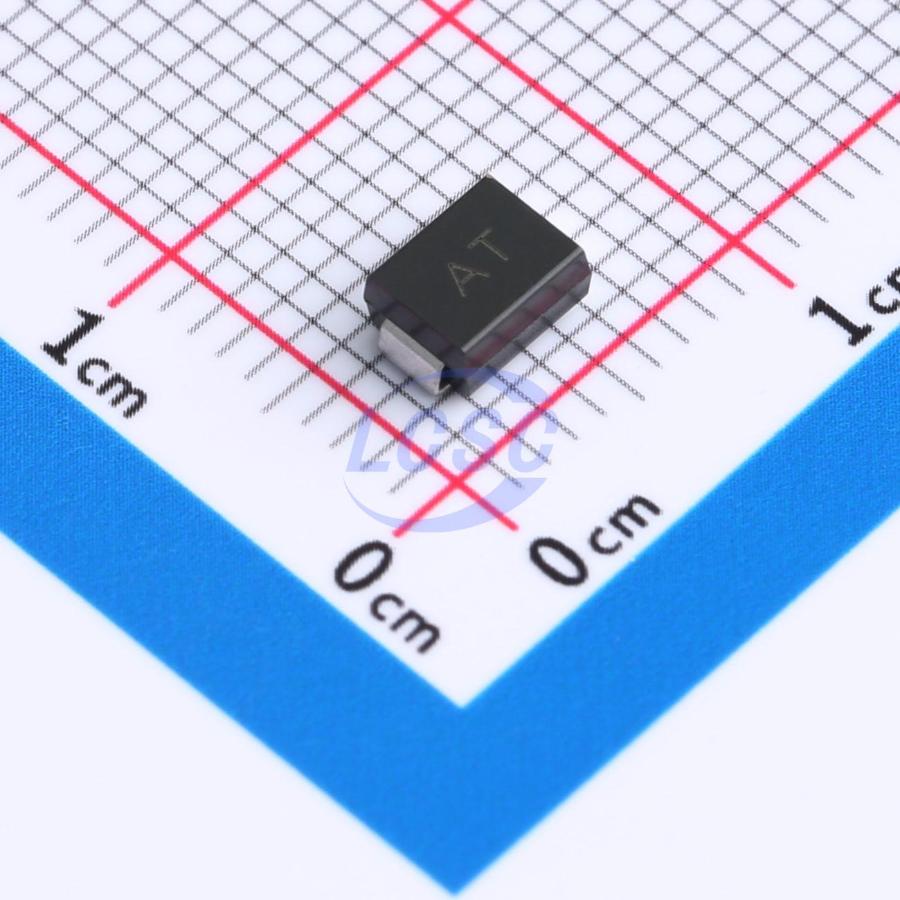

HXY MOSFETDatasheet (PDF)
HTPSMB8.5CAVR
14.4VC Clamp 41.7A Ipp TVS DIODE SMB(DO-214AA)
SMB(DO-214AA)RoHSActive
TVS DIODE 8.5VWM 14.4VC SMB(DO-214AA)
- Manufacturer
- HXY MOSFET
- Manufacturer part #
- HTPSMB8.5CAVR
- Store part #
- C42401936
- Package / case
- SMB(DO-214AA)
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
130 in stock
#C42401936
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹17.62 | ₹88.10 |
| 50+ | ₹14.09 | ₹704.50 |
| 150+ | ₹12.33 | ₹1,849.50 |
| 500+ | ₹11.01 | ₹5,505.00 |
| 3,000+ | ₹9.95 | ₹29,850.00 |
| 6,000+ | ₹9.42 | ₹56,520.00 |
5 × ₹17.62
₹88.10
excl. GST
₹103.96 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
HTPSMB8.5CAVR
₹88.10 for 5 + GST
Specifications
- Clamping Voltage
- 14.4V
- Operating Temperature
- -55℃~+150℃
- Peak Pulse Current (Ipp)
- 41.7A
- Peak Pulse Power Dissipation (Ppp)
- 800W@10/1000us
- Number of Channels
- 1
- Voltage - Breakdown
- 9.44V;10.4V
- type
- TVS
- Polarity
- Bidirectional
- Reverse Leakage Current (Ir)
- 20uA
- Reverse Stand-Off Voltage (Vrwm)
- 8.5V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.135 g
