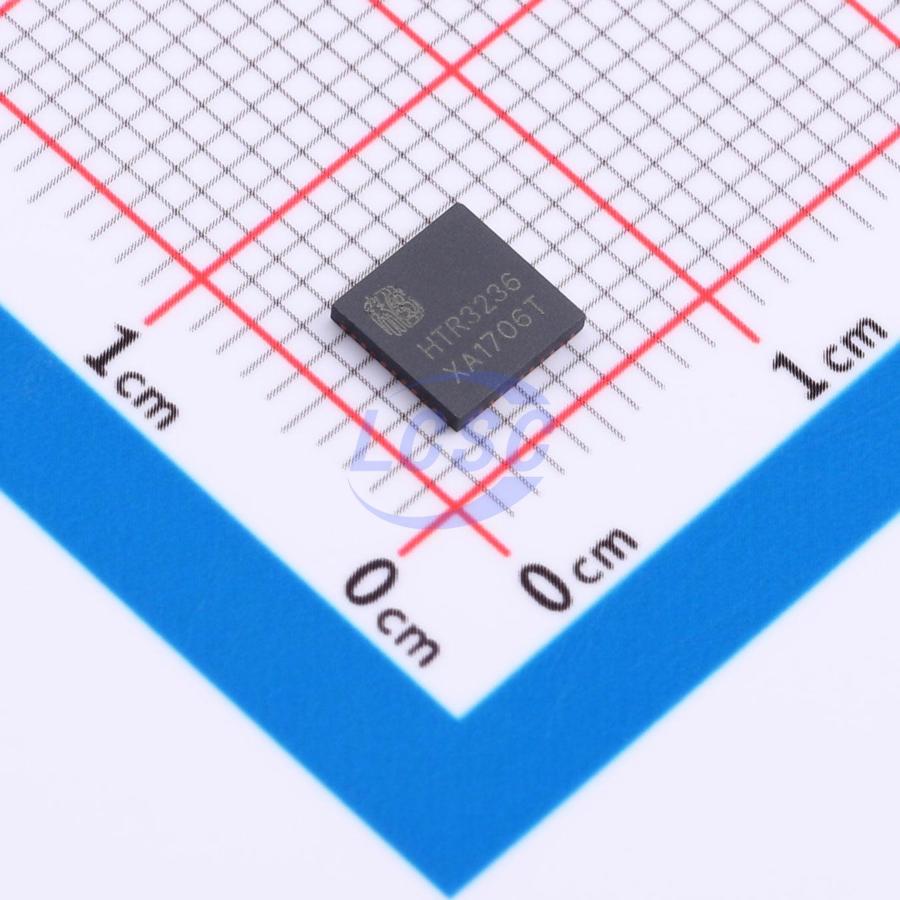

HTR3236SQER

HTR3236 contains 36 constant-current channels, each with independent PWM control, designed to drive LEDs at a PWM frequency of either 3kHz or 22kHz. The output current of each channel is set via an external resistor, up to 38mA (maximum), and can be independently scaled by a factor of 1, 1/2, 1/3, or 1/4. The average LED current per channel is adjustable in 256 steps by changing the PWM duty cycle via the I²C interface. The device can be shut down by pulling the SDB pin low or by using the software shutdown function to reduce power consumption. HTR3236 is available in a QFN-44L (5mm×5mm) package. It operates over a supply voltage range of 2.5V to 5.5V and a temperature range of -40°C to +85°C.

Applications

• Smart speakers
• Wireless speakers
• LED displays for smartphones and other handheld devices
• LED displays for home appliances

Key features

• Supply voltage range VCC: 2.5V ~ 5.5V
• I²C interface with auto address increment
• Four selectable I²C addresses
• Internal software reset register
• 256-level PWM LED brightness control
• Independent control per channel
• Per-channel independent scaling: 1, 1/2, 1/3, and 1/4
• Selectable PWM frequency: 3kHz (default) or 22kHz
• Lead-free package, QFN44L-5×5
