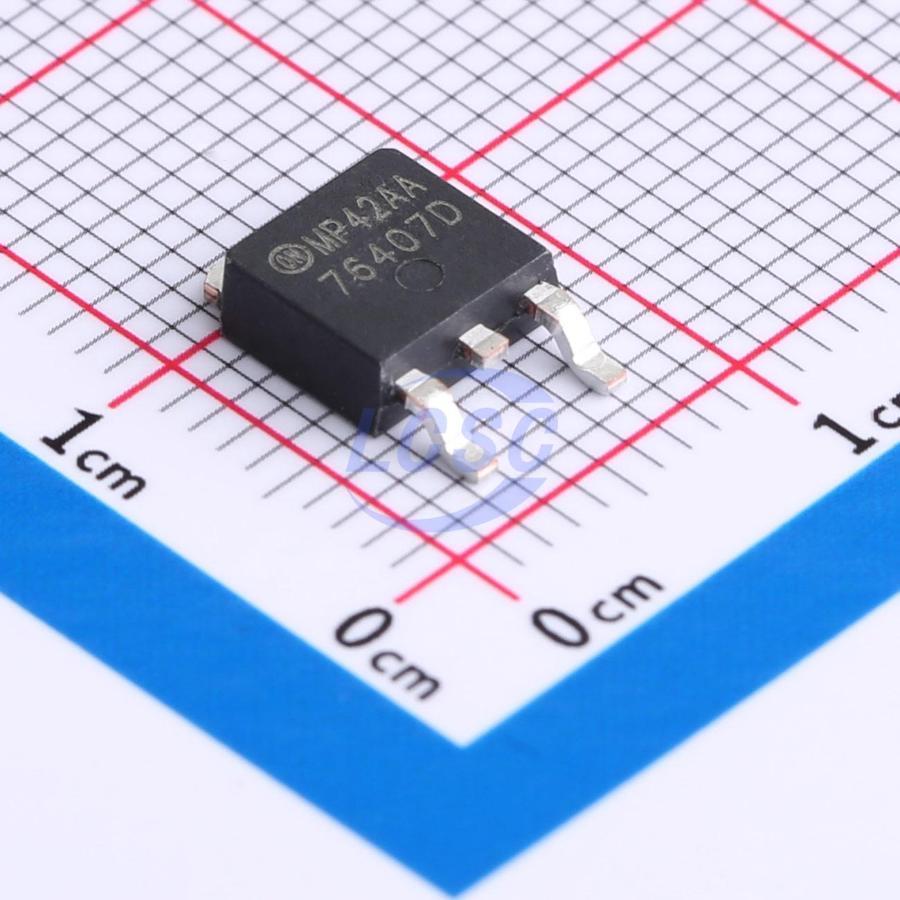

HUF76407D3ST
N-Channel 60V Surface Mount TO-252AA
TO-252AAROHS3 CompliantActive
MOSFET N-CH 60V TO-252AA
- Manufacturer
- onsemi
- Manufacturer part #
- HUF76407D3ST
- Store part #
- C903778
- Package / case
- TO-252AA
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
16 in stock
#C903778
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹244.69 | ₹244.69 |
| 10+ | ₹225.58 | ₹2,255.80 |
| 30+ | ₹213.66 | ₹6,409.80 |
| 100+ | ₹201.33 | ₹20,133.00 |
| 500+ | ₹195.79 | ₹97,895.00 |
| 1,000+ | ₹193.33 | ₹1,93,330.00 |
1 × ₹244.69
₹244.69
excl. GST
₹288.73 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
HUF76407D3ST
₹244.69 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 105pF
- Ciss-Input Capacitance
- 350pF
- Pd - Power Dissipation
- 38W
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 60V
- Current - Continuous Drain(Id)
- 12A
- Reverse Transfer Capacitance (Crss)
- 23pF
- RDS(on)
- 92mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 11.3nC@10V
- Vgs
- ±16V
- Gate Threshold Voltage (Vgs(th))
- 1V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.6 g
Overview
This P-channel enhancement-mode power MOSFET is manufactured using onsemi's proprietary planar stripe and DMOS technology. This advanced MOSFET technology is specifically designed to minimize on-resistance while delivering superior switching performance and high avalanche energy ruggedness. These devices are suitable for switch-mode power supplies, audio amplifiers, DC motor control, and variable switching power supply applications.
Applications
- Switched-mode power supplies - Audio amplifiers - DC motor control - Variable switching power supply applications
Key features
- Ultra-low on-resistance
- rDS(ON) = 0.092 Ω, VGS = 10 V
- rDS(ON) = 0.107 Ω, VGS = 5 V
- Simulation models
- Temperature-compensated PSPICE and SABER electrical models
- Spice and SABER thermal impedance models
- Peak current vs. pulse width curves
- UIS rated curves
- Switching time vs. RGS curves
