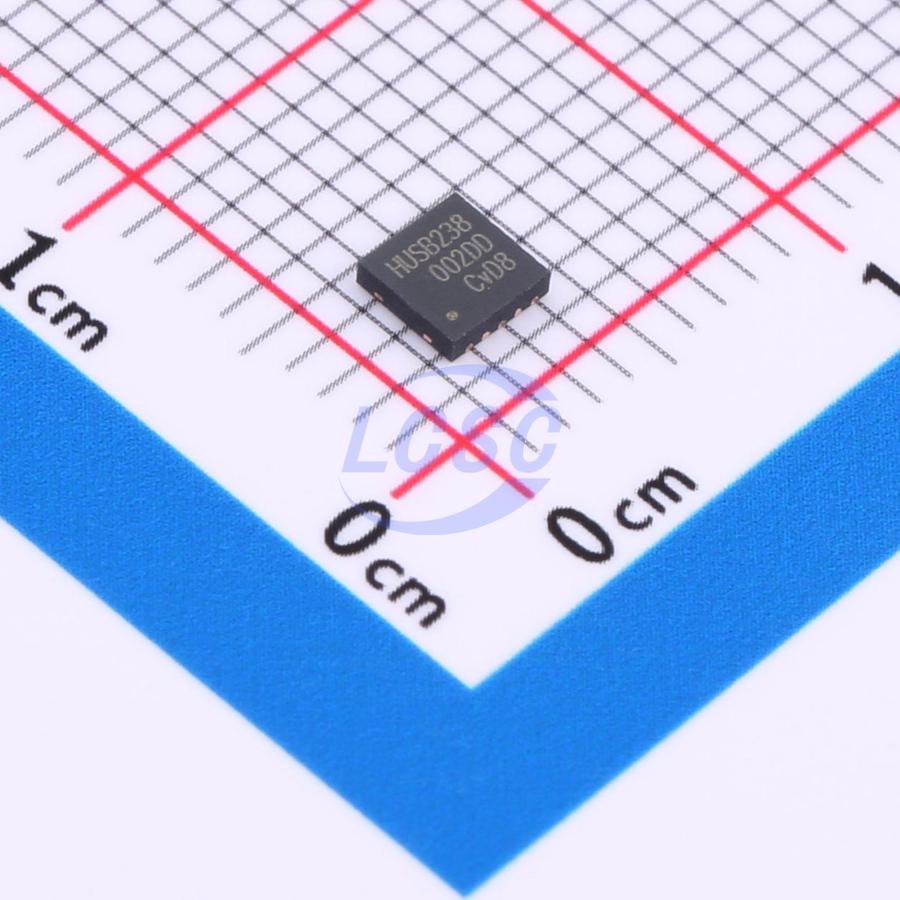

Hynetek

HUSB238_002DD

1 USB Charging IC DFN-10L(3x3) Interface Controllers

DFN-10L(3x3)RoHSActive

USB Type-C PD Sink control chip

Manufacturer: Hynetek
Manufacturer part #: HUSB238_002DD
Store part #: C7471904
Package / case: DFN-10L(3x3)
Category: Interface Controllers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

8,654 in stock

#C7471904

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
1+	₹77.85	₹77.85
10+	₹62.23	₹622.30
30+	₹54.22	₹1,626.60
100+	₹46.41	₹4,641.00
500+	₹40.34	₹20,170.00
1,000+	₹37.94	₹37,940.00

Quantity (min 1)

1 × ₹77.85

₹77.85

excl. GST

₹91.86 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 4,000 per reel

HUSB238_002DD

₹77.85 for 1 + GST

Specifications

Operating Temperature: -40℃~+85℃
Voltage - Supply: 3V~25V
Number of ports: 1
Features: Power-on reset
Applications Function: USB Charging IC
Current - Supply: 3.1mA

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 4,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.09 g

Overview

HUSB238 is a highly integrated USB Power Delivery (PD) sink controller IC supporting fast charging power up to 100W. HUSB238 complies with PD3.0 and Type-C V1.4 specifications, and also supports Apple divider 3, BC1.2 SDP, CDP, and DCP charging protocols. HUSB238 is suitable for electronic devices with legacy barrel connectors or USB micro-B connectors, such as IoT devices, wireless chargers, drones, smart speakers, power tools, and other rechargeable devices.

Applications

PD powered devices
USB-C cables
Wireless chargers

Key features

Fast charging protocol USB-IF certified, TID: 3666, supports Type-C V1.4 and USB PD3.0 standards
Apple divider 3 detection
BC1.2 SDP, CDP and DCP detection
Operating voltage range: 3V to 25V
VIN and GATE pin voltage rating up to 30V
CC1 and CC2 pin voltage rating up to 25V, low power consumption
Dead battery mode support
SOP' communication support
Universal I2C communication interface
Package: 3mm x 3mm DFN-10L
