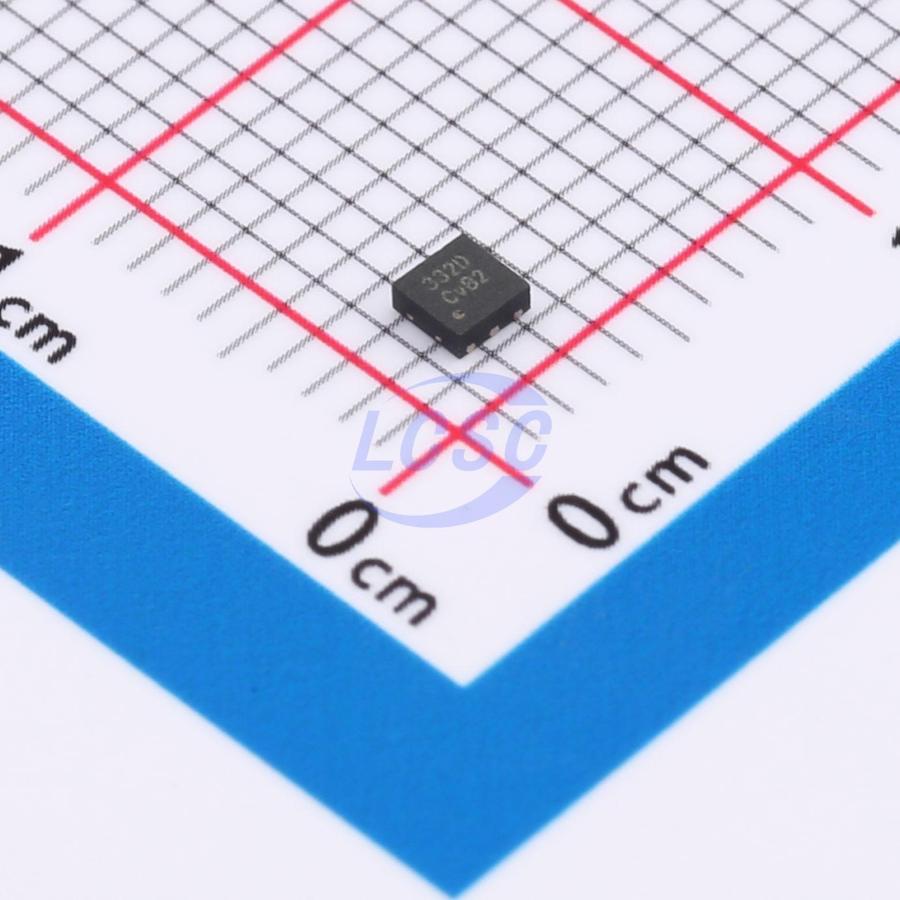

HUSB332D_U31DA

HUSB332D is a USB Type-C eMarker for Cable ID applications. It is compliant with USB Type-C Specification Revision 2.2. It is also compliant to USB Power Delivery 3.1 and USB4 Specification. Powered from VCONN1 or VCONN2, HUSB332D can determine to act as SOP’. The built-in OTP can be programmed through CC line. The enhanced ±8 KV system ESD protection on the exposed pins can improve the system reliability significantly. The HUSB332D operates over a wide supply range of 2.7 V to 5.75 V. It is available in DFN2×2 - 6L and DFN1.6×1.6 - 4L packages. It is rated over the -40 °C to +85 °C temperature range.

Applications

• USB Type-C Cable ID
• USB4 Passive Cable

Key features

• USB Type-C 2.2 and PD 3.1 V1.7 compliant USB-IF Certified. TID: 9125
• Support SOP’ communication
• Integrated transceiver (BMC PHY)
• Support both structured VDM version 1.0 and 2.x
• High integration
• Embedded both side Ra resistors
• Embedded both side VCONN diodes
• Different package options: DFN1.6×1.6 - 4L, DFN2×2 - 6L
• Support 3 times Programming
• Compatible with third party programming Tools
• Support 2.7 - 5.75 V operation on VCONN1 and VCONN2 Pins
• 25 V high voltage tolerance on CC, VCONN1 and VCONN2 pins
• Support Thunderbolt 3, Thunderbolt 4 and USB4 2.0 80Gbps data communication
