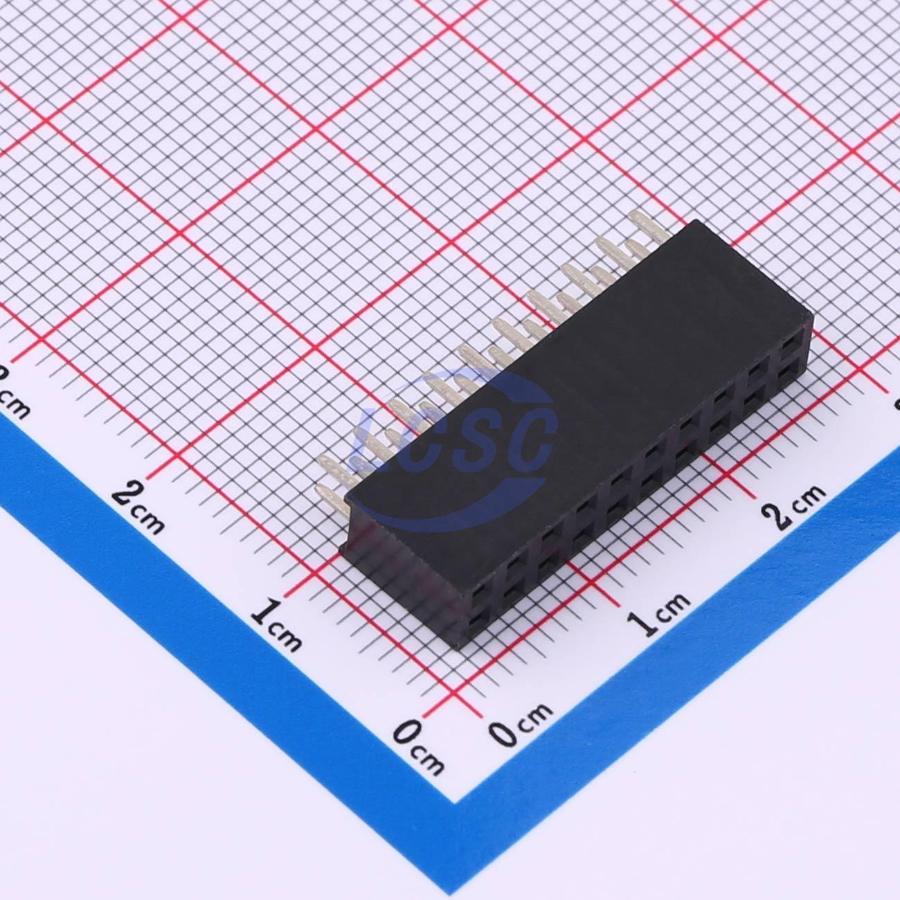

HX PM-2.54-02-10-Z-H8.5 hanxia
hanxia

HX PM-2.54-02-10-Z-H8.5

3A 20P Through Hole -40℃~+105℃ 8.5mm 2x10P 2.54mm Top 2 2.54mm Square Hole Through Hole,P=2.54mm Headers, Receptacles, Female Sockets RoHS

Through Hole,P=2.54mmROHS CompliantActive

CONN SOCKET 20POS 2.54mm DUAL ROW TH

Manufacturer
hanxia
Manufacturer part #
HX PM-2.54-02-10-Z-H8.5
Store part #
C42391646
Package / case
Through Hole,P=2.54mm
Category
Headers, Receptacles, Female Sockets
Packaging
Box-packed
Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

685 in stock

#C42391646

Stock & price checked 8 days ago

QuantityUnit pricePack price
5+₹38.76₹193.80
50+₹30.44₹1,522.00
160+₹26.87₹4,299.20
480+₹22.42₹10,761.60
2,560+₹20.44₹52,326.40
4,960+₹19.25₹95,480.00

5 × ₹38.76

₹193.80

excl. GST

₹228.68 incl. 18% GST

Need volume or a scheduled delivery? Request a quote
  • Dispatch in 15-18 working days
  • GST invoice with every order
  • Standard pack: 160 per box

HX PM-2.54-02-10-Z-H8.5

₹193.80 for 5 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Current Rating
3A
Number of Pins
20P
PIN Length
3.2mm
Voltage Rating
1kV
Mounting Type
Through Hole
Operating Temperature
-40℃~+105℃
Insulation Height
8.5mm
Holes Structure
2x10P
Pitch
2.54mm
Holes Direction
Top
Number of Rows
2
Contact Plating
Gold
Contact Material
Brass
Row Spacing
2.54mm
Circular Hole / Square Hole
Square Hole

Packaging & compliance

RoHS
ROHS Compliant
Lifecycle
Active
Packaging
Box-packed
Standard pack
160 / Box
Sold per
Piece
Minimum order
5 (multiples of 5)
Unit weight
2.192 g
