HEXIN

HX1001-AEC

Step-down type 1.4MHz Adjustable 600mV~5.5V 700mA SOT-23-5L Voltage Regulators - DC DC Switching Regulators

SOT-23-5LRoHSActive

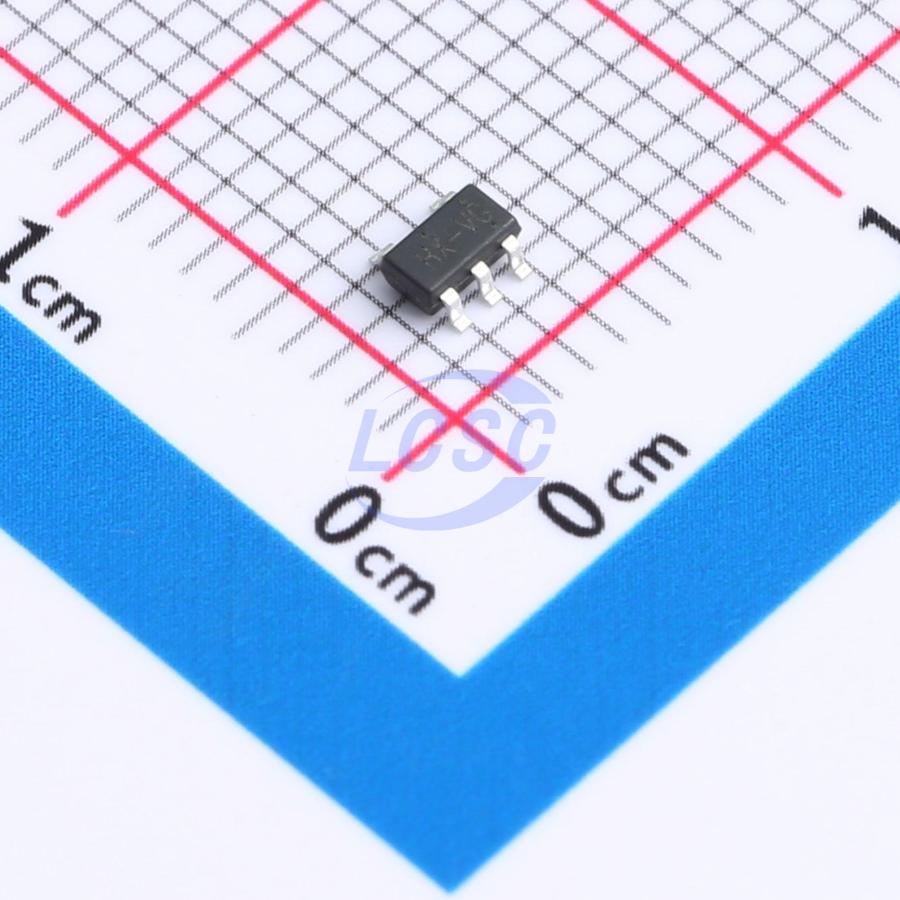

Synchronous Buck DC/DC Converter

Manufacturer: HEXIN
Manufacturer part #: HX1001-AEC
Store part #: C42416755
Package / case: SOT-23-5L
Category: Voltage Regulators - DC DC Switching Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

4,990 in stock

#C42416755

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
10+	₹9.86	₹98.60
100+	₹7.77	₹777.00
300+	₹6.73	₹2,019.00
3,000+	₹5.95	₹17,850.00
6,000+	₹5.33	₹31,980.00
9,000+	₹5.01	₹45,090.00

Quantity (min 10, multiples of 10)

10 × ₹9.86

₹98.60

excl. GST

₹116.35 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

HX1001-AEC

₹98.60 for 10 + GST

Specifications

Operating Temperature: -40℃~+85℃@(TA)
Function: Step-down type
Frequency - Switching: 1.4MHz
Number of Outputs: 1
Features: Light load efficient mode;Overcurrent Protection
Output Type: Adjustable
Topology: Buck
Operating Voltage: 2.5V~5.5V
Switch tube (built-in/external): Built-in
Output Voltage: 600mV~5.5V
Output Current: 700mA
Quiescent Current: 200uA

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 10 (multiples of 10)
Unit weight: 0.046 g

Overview

The HX1001 is high efficiency synchronous, PWM step-down DC/DC converters working under an input voltage range from 2.2V to 5.5V. This feature makes the HX1001 suitable for single Li-Lon battery-powered applications. 100% duty cycle capability extends battery life in portable devices, while the quiescent current is 200μA with no load, and drops to <1μA in shutdown. The internal synchronous switch is desired to increase efficiency without an external Schottky diode. The 1.0MHz/1.4MHz switching frequency allows the using of tiny, low profile inductors and ceramic capacitors, which minimized overall solution footprint.

Applications

Digital cameras and MP3
Palmtop computers / PDAs
Cellular phones
Wireless handsets and DSL modems
Portable media players
PC cards

Key features

Up to 95% Efficiency
Current Mode Operation for Excellent Line and Load Transient Response
700mA Output Current
Low Quiescent Current: 200μA
Output Voltage: 0.6V ~ 5.5V
Automatic PWM/PFM Mode Switching
No Schottky Diode Required
Frequency Operation: 1.0MHz for Fixed Output Voltage and 1.4MHz for Adjustable Output Voltage
Short-Circuit Protection
Shutdown Quiescent Current: <1μA
Low Profile TSOT/ SOT-23-5L Package (lead-free packaging is now available)
