HEXINDatasheet (PDF)

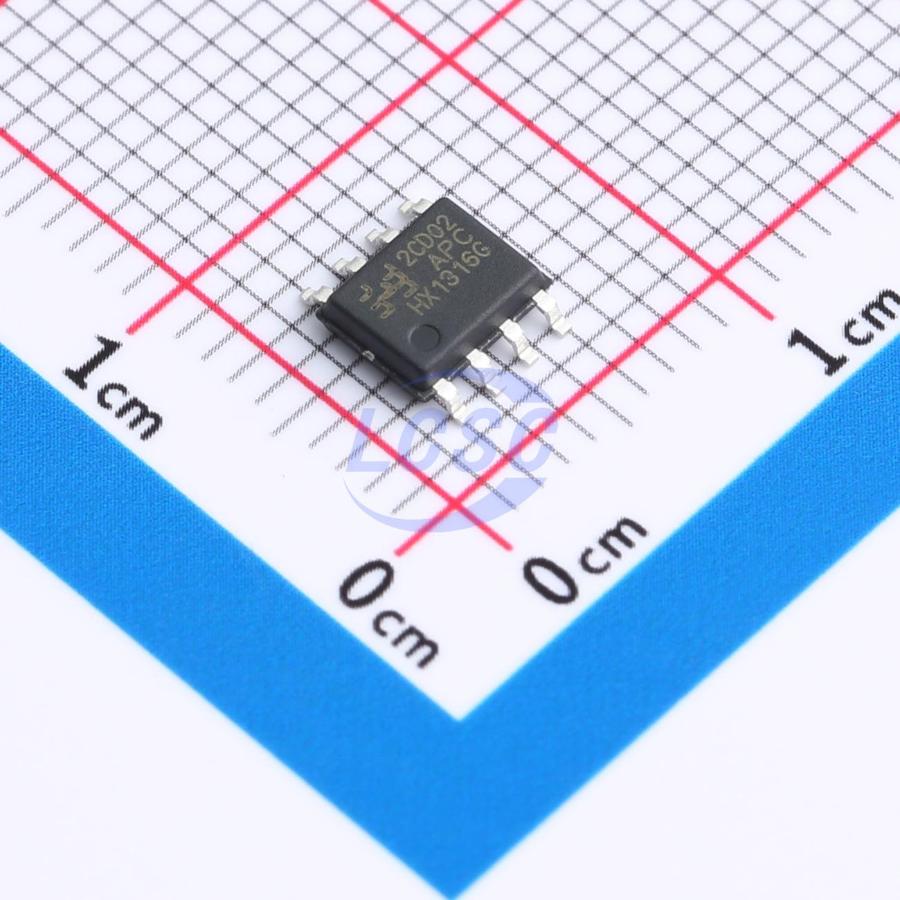

HX1316G-APC
Buck Switching Regulator IC Adjustable 1 Output 4.5A SOP-8PP
SOP-8PPRoHSActive
Wide Input Range Synchronous Buck Controller
- Manufacturer
- HEXIN
- Manufacturer part #
- HX1316G-APC
- Store part #
- C47115467
- Package / case
- SOP-8PP
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,145 in stock
#C47115467
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹21.74 | ₹108.70 |
| 50+ | ₹18.99 | ₹949.50 |
| 150+ | ₹17.79 | ₹2,668.50 |
| 500+ | ₹16.33 | ₹8,165.00 |
| 2,500+ | ₹15.68 | ₹39,200.00 |
| 4,000+ | ₹15.28 | ₹61,120.00 |
5 × ₹21.74
₹108.70
excl. GST
₹128.27 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
HX1316G-APC
₹108.70 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Function
- Step-down type
- Frequency - Switching
- 130kHz~500kHz
- Number of Outputs
- 1
- Features
- Adjustable current limiting;Cable compensation
- Output Type
- Adjustable
- Topology
- Buck
- Operating Voltage
- 8V~30V
- Switch tube (built-in/external)
- External
- Output Current
- 4.5A
- Quiescent Current
- 14mA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.187 g
Overview
The HX1316G is a high-voltage input synchronous buck regulator with constant current control. It operates over an input voltage range of 8V to 30V, delivers 4.5A continuous output current, and provides excellent load and line regulation. The switching frequency is programmable from 130kHz to 500kHz, and the synchronous architecture enables high-efficiency designs. Current-mode operation provides fast transient response and simplifies loop compensation. The HX1316G requires a minimal number of common standard external components. Additional features include cable compensation, programmable current limiting, and thermal shutdown. The HX1316G converter is available in an industry-standard SOP8-PP package.
Applications
- Automotive chargers/adapters
- LED drivers
- Pre-regulators for linear regulators
- Distributed power systems
- Battery chargers
Key features
- Wide input voltage range: 8V to 30V
- Up to 93% efficiency
- Programmable switching frequency up to 500kHz
- No loop compensation required
- Constant current/constant voltage control
- Programmable constant current
- Thermal shutdown
- Available in SOP8-PP package
