HEXINDatasheet (PDF)

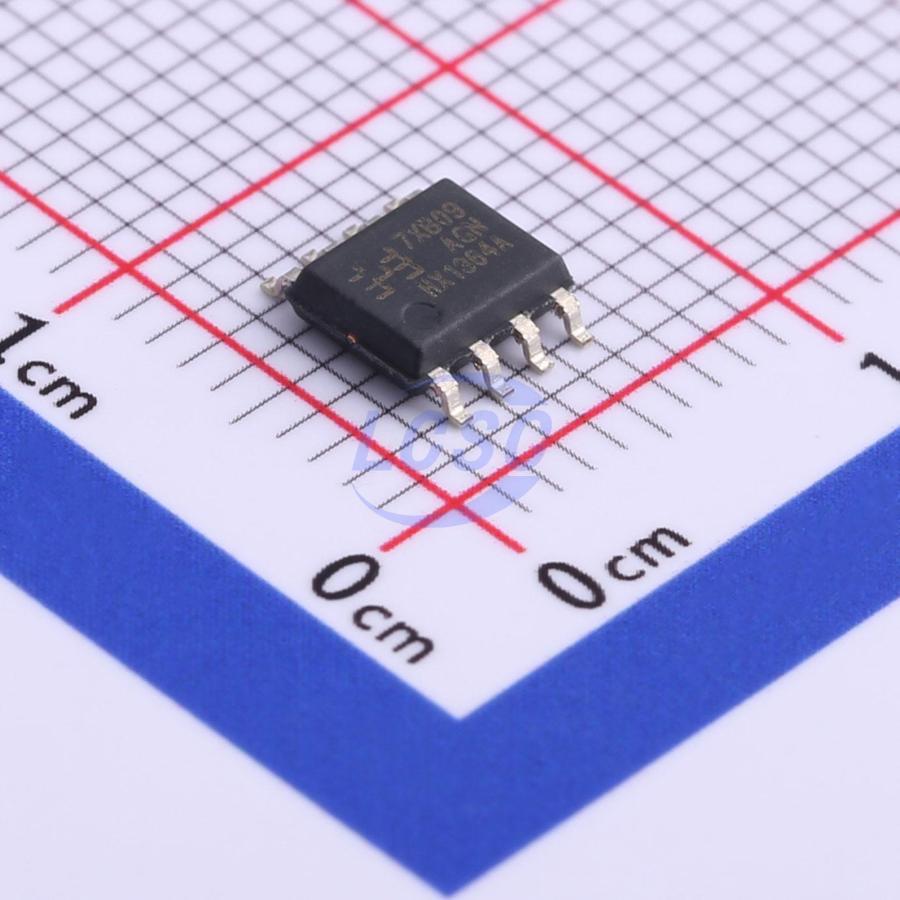

HX1364A-AGN
130kHz Step-down type Adjustable 2.5A SOP-8 Voltage Regulators - DC DC Switching Regulators
SOP-8RoHSActive
Wide Range Synchronous Buck Controller
- Manufacturer
- HEXIN
- Manufacturer part #
- HX1364A-AGN
- Store part #
- C521266
- Package / case
- SOP-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,100 in stock
#C521266
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹31.86 | ₹159.30 |
| 50+ | ₹24.86 | ₹1,243.00 |
| 150+ | ₹21.86 | ₹3,279.00 |
| 500+ | ₹18.11 | ₹9,055.00 |
| 2,500+ | ₹16.44 | ₹41,100.00 |
| 4,000+ | ₹15.44 | ₹61,760.00 |
| 8,000+ | ₹15.24 | ₹1,21,920.00 |
| 20,000+ | ₹15.10 | ₹3,02,000.00 |
5 × ₹31.86
₹159.30
excl. GST
₹187.97 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
HX1364A-AGN
₹159.30 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+85℃@(TA)
- Frequency - Switching
- 130kHz
- Function
- Step-down type
- Number of Outputs
- 1
- Features
- Adjustable current limiting;Cable compensation
- Output Type
- Adjustable
- Topology
- Buck
- Operating Voltage
- 8V~38V
- Switch tube (built-in/external)
- Built-in
- Output Current
- 2.5A
- Quiescent Current
- 10mA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.222 g
Overview
The HX1364A-AGN is a synchronous step down regulator from a high voltage input supply. Operating with a wide input voltage range, the HX1364A-AGN achieves 2.5A continuous output current with excellent load and line regulation. The switching frequency is fixed 130kHz and the synchronous architecture provides for highly efficient designs. Current mode operation provides fast transient response and eases loop stabilization. The HX1364A-AGN converters are available in the industry standard SOP-8L packages. The HX1364A-AGN requires a minimum number of readily available standard external components. Other features include cable compensation, programmable current limit and thermal shutdown.
Applications
- Car Charger
- Adaptor Pre-Regulator for Linear Regulators
- Distributed Power Systems
- Battery Charger
Key features
- Wide Input Operation Voltage Range: 8V to 38V
- Absolute Maximum Input Supply Voltage: 40V
- Input Protection Mode Trigger Voltage: 32V
- Up to 93% Efficiency
- Fixed Switching Frequency: 130kHz
- ON/OFF Control
- No Loop Compensation Required
- Programmable current limit
- Thermal Shutdown
- Available in SOP-8L Package
