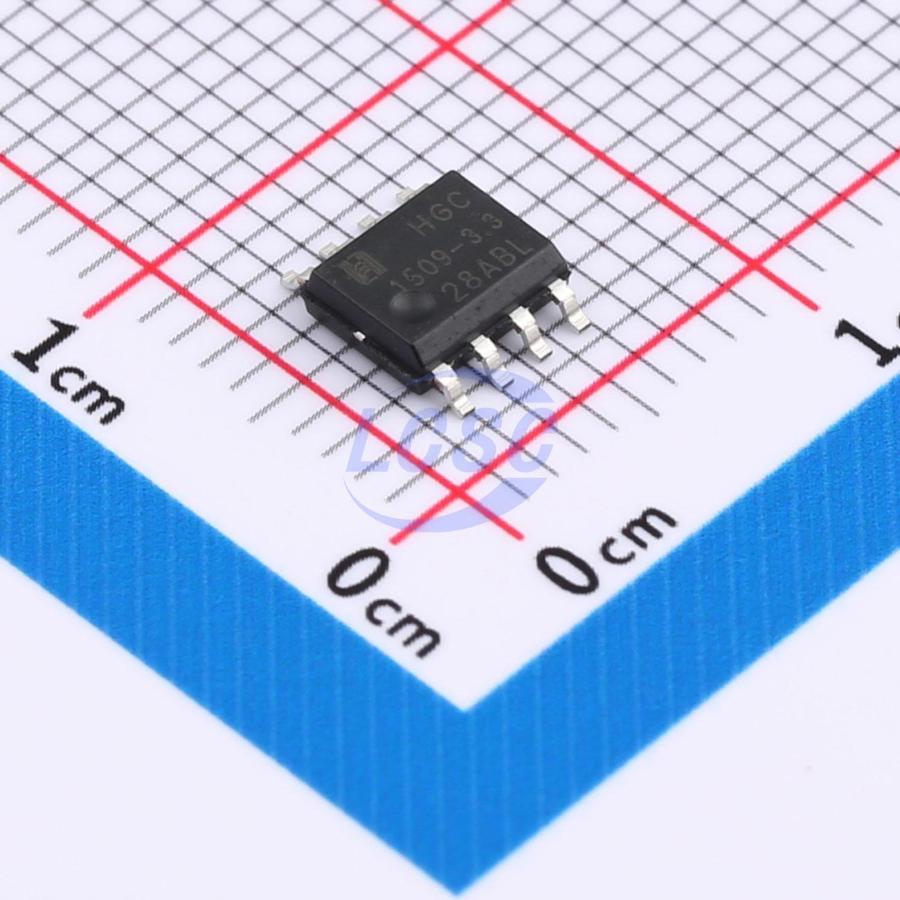

HANSCHIP semiconductorDatasheet (PDF)
HX1509D-3.3RG
150kHz Step-down type Fixed 2A 3.3V SOP-8 Voltage Regulators - DC DC Switching Regulators RoHS
SOP-8ROHS CompliantActive
High-Efficiency Buck DC/DC Converter
- Manufacturer
- HANSCHIP semiconductor
- Manufacturer part #
- HX1509D-3.3RG
- Store part #
- C5145409
- Package / case
- SOP-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,015 in stock
#C5145409
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹38.57 | ₹192.85 |
| 50+ | ₹30.35 | ₹1,517.50 |
| 150+ | ₹26.83 | ₹4,024.50 |
| 500+ | ₹22.45 | ₹11,225.00 |
| 2,500+ | ₹19.51 | ₹48,775.00 |
| 5,000+ | ₹18.34 | ₹91,700.00 |
5 × ₹38.57
₹192.85
excl. GST
₹227.56 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
HX1509D-3.3RG
₹192.85 for 5 + GST
Specifications
- Operating Temperature
- -20℃~+85℃
- Frequency - Switching
- 150kHz
- Function
- Step-down type
- Number of Outputs
- 1
- Features
- Overcurrent Protection
- Output Type
- Fixed
- Topology
- Buck
- Operating Voltage
- 4.5V~22V
- Switch tube (built-in/external)
- Built-in
- Output Current
- 2A
- Output Voltage
- 3.3V
- Quiescent Current
- 10mA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.22 g
Overview
HX1509 is a 150KHz fixed-frequency PWM buck (step-down) DC/DC converter capable of efficiently driving a 2A load with low ripple and excellent line and load regulation. The regulator requires minimal external components and is easy to use, featuring internal frequency compensation and a fixed-frequency oscillator. The PWM control circuit enables linear duty cycle adjustment from 0 to 100%. Built-in enable function and overcurrent protection are included. When the secondary current limiting function is activated, the operating frequency drops from 150KHz to 50KHz. An internal compensation module is integrated to reduce external component count.
Applications
- LCD monitors and LCD TVs
- Digital photo frames
- Set-top boxes
- ADSL modems
- Telecom/networking equipment
Key features
- Wide input voltage range: 4.5V to 42V
- Available in 3.3V, 5V, 12V, and adjustable versions
- Output adjustable from 1.23V to 37V
- Maximum duty cycle 100%
- Minimum dropout voltage 1.5V
- Fixed 150KHz switching frequency
- 2A continuous output current capability
- Internally optimized power transistor
- High efficiency
- Excellent line and load regulation
- TTL shutdown capability
- ON/OFF pin with hysteresis
- Built-in thermal shutdown
- Built-in current limiting
- Built-in secondary current limiting
- Available in SOP8 and ESOP-8 packages
