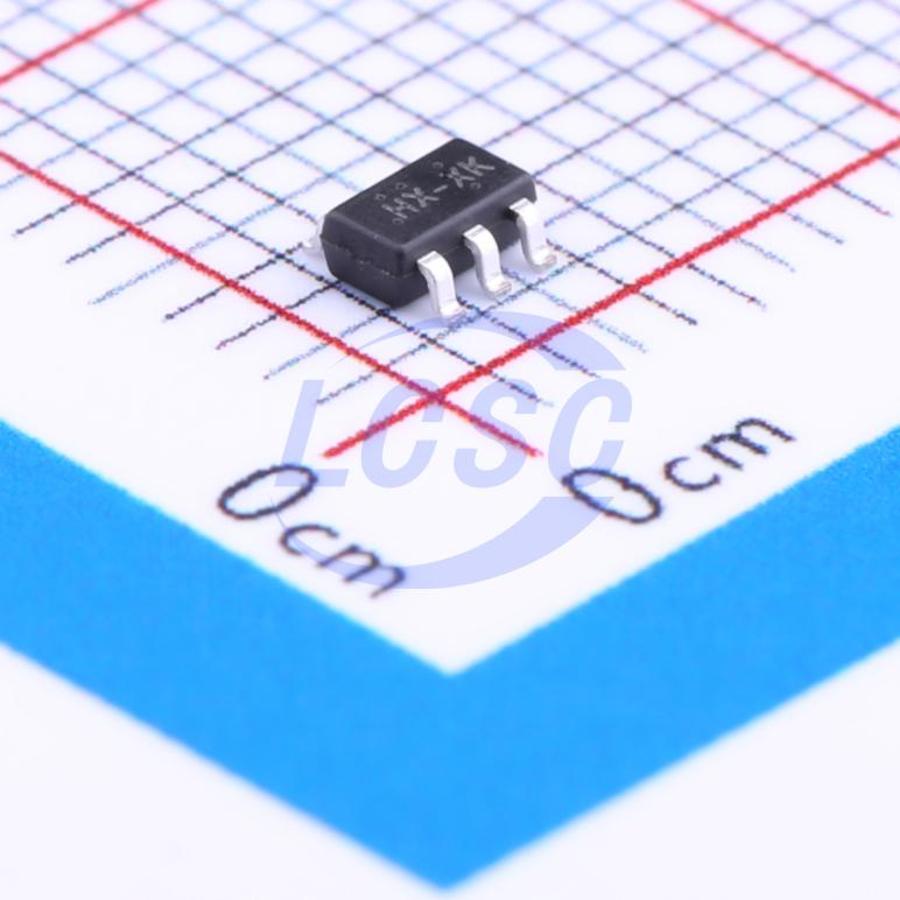

HX3002-AF7C
1.1MHz~1.7MHz Boost Adjustable 2.5V~5V 500mA SOT-23-6 Voltage Regulators - DC DC Switching Regulators
SOT-23-6RoHSActive
High Efficiency Synchronous Boost DC/DC Regulator
- Manufacturer
- HEXIN
- Manufacturer part #
- HX3002-AF7C
- Store part #
- C172353
- Package / case
- SOT-23-6
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,855 in stock
#C172353
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹29.20 | ₹146.00 |
| 50+ | ₹23.19 | ₹1,159.50 |
| 150+ | ₹20.61 | ₹3,091.50 |
| 500+ | ₹17.40 | ₹8,700.00 |
| 3,000+ | ₹14.76 | ₹44,280.00 |
| 6,000+ | ₹13.90 | ₹83,400.00 |
5 × ₹29.20
₹146.00
excl. GST
₹172.28 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
HX3002-AF7C
₹146.00 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Frequency - Switching
- 1.1MHz~1.7MHz
- Function
- Boost
- Number of Outputs
- 1
- Features
- Light load efficient mode
- Output Type
- Adjustable
- Topology
- Boost
- Operating Voltage
- 2V~4.4V
- Switch tube (built-in/external)
- Built-in
- Output Voltage
- 2.5V~5V
- Output Current
- 500mA
- Quiescent Current
- 550uA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.041 g
Overview
HX3002 is a high-efficiency synchronous PWM boost DC/DC converter optimized for high-efficiency solutions in medium-power systems. The device operates at a fixed switching frequency of 1.4MHz, allowing the use of small, low-profile inductors and ceramic capacitors to minimize overall solution size. Automatic PWM/PFM mode switching at light load reduces power consumption and improves efficiency. The HX3002 delivers output voltages from 2.5V to 5V, with integrated synchronous switches designed to achieve high efficiency without the need for a Schottky diode. The HX3002 regulator is offered in the industry-standard SOT-23-6L power package.
Applications
- Digital cameras and MP3 players
- Handheld PCs/PDAs
- Cellular phones
- Wireless handheld devices and DSL modems
- PC cards
Key features
- Up to 97% efficiency
- Shutdown current: 2μA
- Load current: up to 500mA
- Low voltage startup: HX3002-AFHC: 1V; HX3002-AF7C: 2V
- Input voltage: HX3002-AFHC: 1V ~ 4.4V; HX3002-AF7C: 2V ~ 4.4V
- Output voltage: 2.5V ~ 5V (up to 5V with Schottky diode)
- Low switch on-resistance RDS(ON), internal switch: 0.35Ω
- 1.4MHz fixed switching frequency
- Automatic PWM/PFM mode switching
- Low-profile SOT-23-6L package (lead-free package available)
