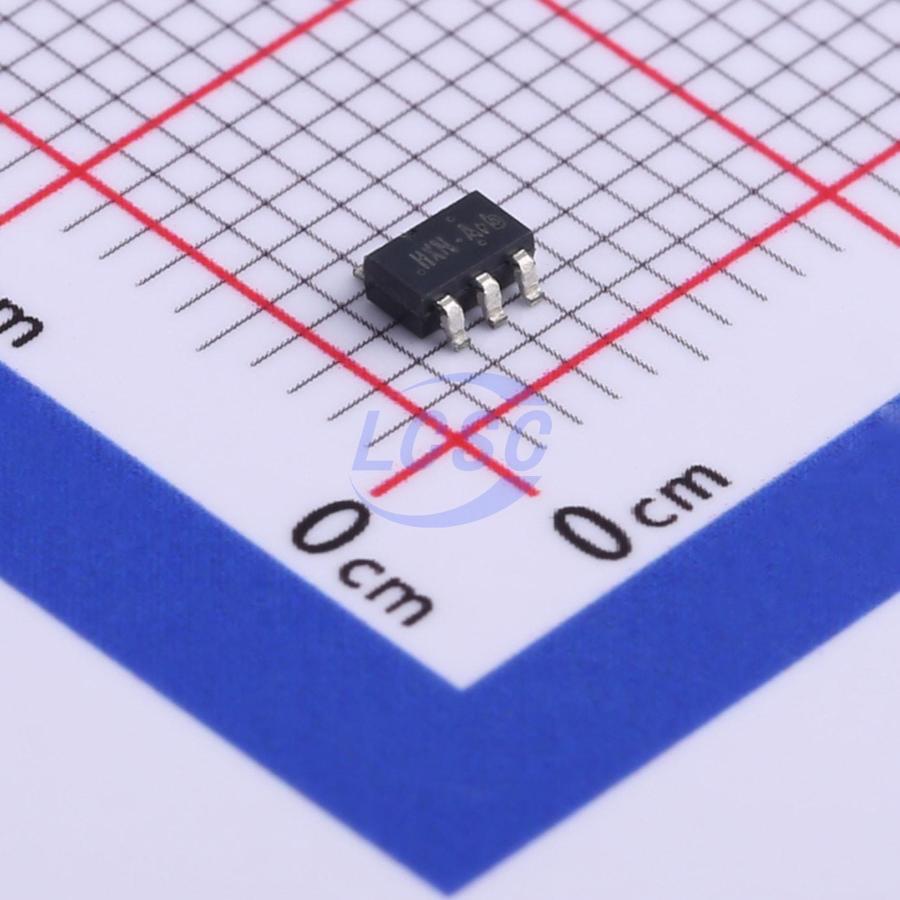

HEXIN

HX3141-AF

Boost 450kHz Adjustable 1.8V~5.5V 3A SOT-23-6L Voltage Regulators - DC DC Switching Regulators

SOT-23-6LRoHSActive

Tiny Package, High Efficiency, Step-up DC/DC Converter

Manufacturer: HEXIN
Manufacturer part #: HX3141-AF
Store part #: C521271
Package / case: SOT-23-6L
Category: Voltage Regulators - DC DC Switching Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,724 in stock

#C521271

Stock & price checked 22 h ago

Quantity	Unit price	Pack price
1+	₹17.75	₹17.75
10+	₹14.10	₹141.00
30+	₹12.28	₹368.40
100+	₹10.91	₹1,091.00
500+	₹9.82	₹4,910.00
1,000+	₹9.27	₹9,270.00

Quantity (min 1)

1 × ₹17.75

₹17.75

excl. GST

₹20.95 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

HX3141-AF

₹17.75 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Operating Temperature: -40℃~+125℃
Function: Boost
Frequency - Switching: 450kHz
Number of Outputs: 1
Output Type: Adjustable
Topology: Boost
Operating Voltage: 1.1V~5.5V
Switch tube (built-in/external): Built-in
Output Voltage: 1.8V~5.5V
Output Current: 3A
Quiescent Current: 70uA

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Moisture sensitivity: MSL 3 (168 hours)
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.048 g

Overview

A compact, high efficiency, and low voltage step-up DC/DC converter including an error amplifier, ramp generator, comparator, switch pass element and driver in which providing a stable and high efficient operation over a wide range of load currents. It operates in stable waveforms without external compensation. The high switching rate minimized the size of external components. Besides, the low quiescent current together with high efficiency maintains long battery lifetime. The output voltage is set with two external resistors. It is available in the industry standard SOT-23-6L power packages.
