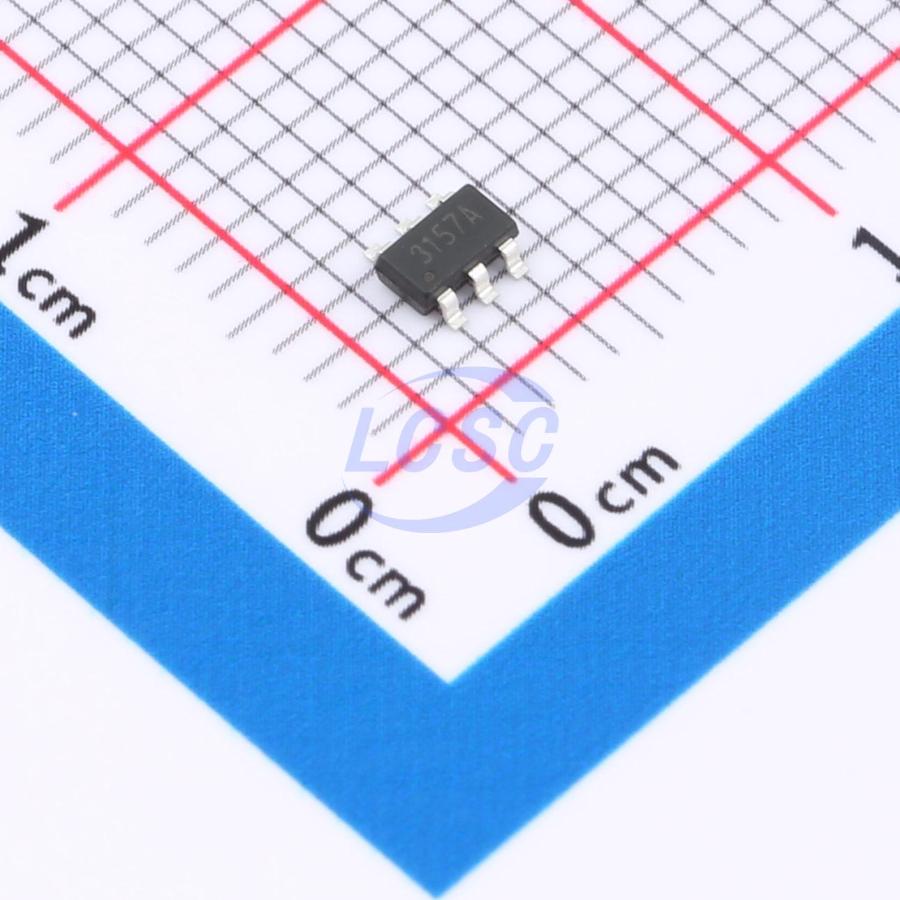

ZHHXDZ

HX3157-ST

IC SWITCH 7.5Ω@3.3V SOT-23-6

SOT-23-6ROHS CompliantActive

Low Voltage SPDT Analog Switch

Manufacturer: ZHHXDZ
Manufacturer part #: HX3157-ST
Store part #: C47345558
Package / case: SOT-23-6
Category: Analog Switches, Multiplexers, Demultiplexers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,240 in stock

#C47345558

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
10+	₹5.54	₹55.40
100+	₹4.41	₹441.00
300+	₹3.84	₹1,152.00
3,000+	₹3.40	₹10,200.00
6,000+	₹3.06	₹18,360.00
9,000+	₹2.88	₹25,920.00

Quantity (min 10, multiples of 10)

10 × ₹5.54

₹55.40

excl. GST

₹65.37 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

HX3157-ST

₹55.40 for 10 + GST

Specifications

Features: Bidirectional analog channel;Power-off isolation
Operating Temperature: -40℃~+85℃
Number of Channels: 1
Ron: 7.5Ω@3.3V
Voltage - Supply: 1.5V~5.5V
Con: 7pF

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 10 (multiples of 10)
Unit weight: 0.038 g

Overview

HX3157-ST/HX3157-ST3 is a single-channel, bidirectional, single-pole double-throw (SPDT) CMOS analog switch designed for single-supply operation from 1.5V to 5.5V. It features high bandwidth (-3dB @ 600MHz) and low on-resistance (typical 1.5Ω), making it ideal for audio switching applications. The HX3157-ST/HX3157-ST3 guarantees matched on-resistance between switches and maintains consistent on-resistance flatness across the full signal range. This design characteristic ensures excellent linearity and extremely low distortion when processing audio signals. The device is available in RoHS-compliant green SOT23-6 and SOT363 packages.
