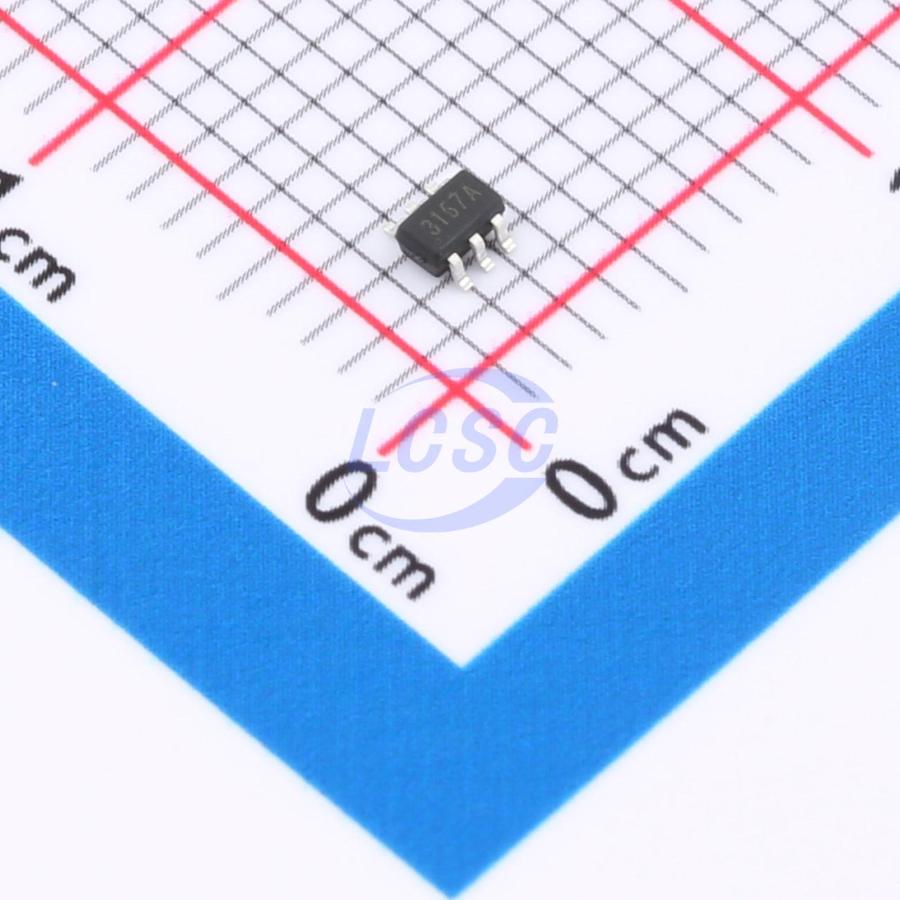

ZHHXDZ

HX3157-ST3

IC SWITCH 2.5Ω@3.3V SOT-23-6

SOT-363ROHS CompliantActive

Low Voltage SPDT Analog Switch

Manufacturer: ZHHXDZ
Manufacturer part #: HX3157-ST3
Store part #: C47345559
Package / case: SOT-363
Category: Analog Switches, Multiplexers, Demultiplexers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

4,800 in stock

#C47345559

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
10+	₹5.56	₹55.60
100+	₹4.42	₹442.00
300+	₹3.84	₹1,152.00
3,000+	₹3.41	₹10,230.00
6,000+	₹3.07	₹18,420.00
9,000+	₹2.90	₹26,100.00

Quantity (min 10, multiples of 10)

10 × ₹5.56

₹55.60

excl. GST

₹65.61 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

HX3157-ST3

₹55.60 for 10 + GST

Specifications

Features: Bidirectional analog channel;Power-off isolation
Operating Temperature: -40℃~+85℃
Number of Channels: 1
Ron: 2.5Ω@3.3V
Voltage - Supply: 1.5V~5.5V
Con: 7pF

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 10 (multiples of 10)
Unit weight: 0.032 g

Overview

HX3157-ST/HX3157-ST3 is a single-channel, bidirectional, single-pole double-throw (SPDT) CMOS analog switch designed for single-supply operation from 1.5V to 5.5V. It features high bandwidth (-3dB @ 600MHz) and low on-resistance (typical 1.5Ω), making it ideal for audio switching applications. The device ensures consistent on-resistance matching between switches and maintains flat on-resistance characteristics across the entire signal range. This design feature guarantees excellent linearity and ultra-low distortion when processing audio signals. HX3157-ST/HX3157-ST3 is available in RoHS-compliant green SOT23-6 and SOT363 packages.

Applications

Audio/video/UART/USB2.0 signal and power routing
Computer peripherals
MP3 players
Portable instruments
Battery-powered devices

Key features

Operating voltage range: 1.5V to 5.5V
On-resistance: 1.5Ω typical when A = 5V
Control pin compatible with 1.8V logic levels
A pin overrides VCC even during power failure for true isolation
Ultra-low quiescent current (<2uA) across wide operating voltage range (1.5V ~ 5.5V)
High bandwidth: -3dB @600MHz
ESD immunity: 2kV HBM
Available in green SOT23-6 and SOT363 packages
