ZHHXDZDatasheet (PDF)
HX33063-S
24kHz~42kHz Adjustable 1.5A SOP-8 Voltage Regulators - DC DC Switching Regulators RoHS
SOP-8ROHS CompliantActive

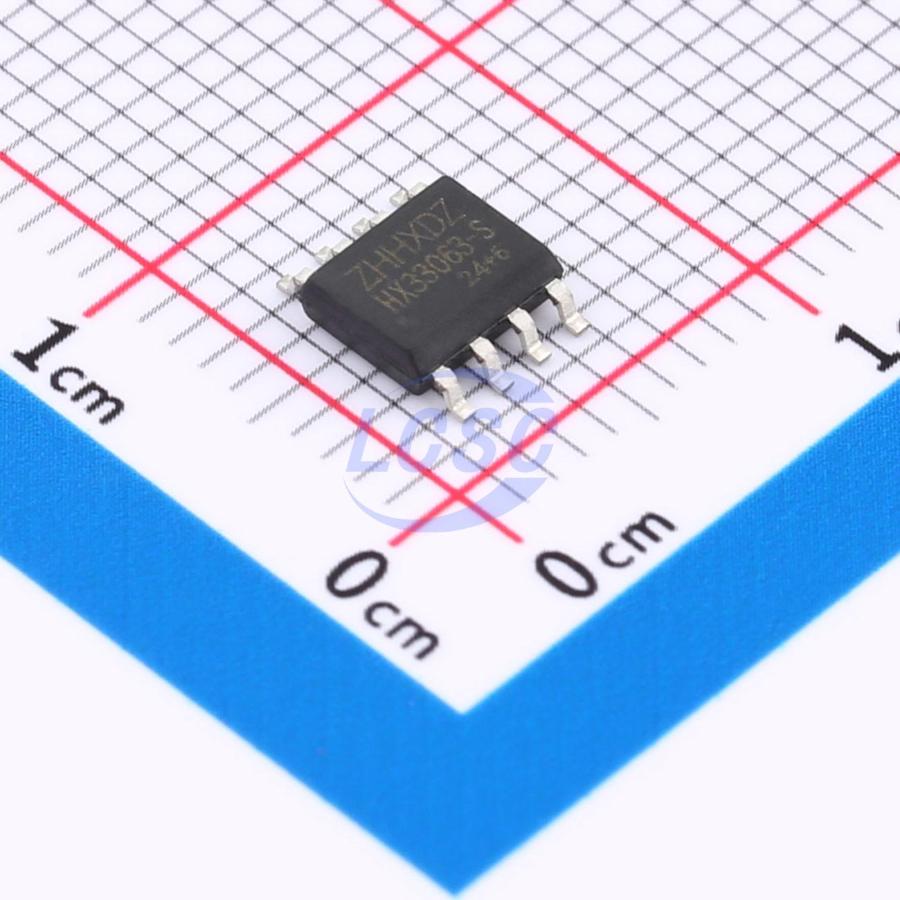

HX33063-S Multi-Function DC-DC Conversion Control Chip
- Manufacturer
- ZHHXDZ
- Manufacturer part #
- HX33063-S
- Store part #
- C41399174
- Package / case
- SOP-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,160 in stock
#C41399174
Stock & price checked 22 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹15.23 | ₹76.15 |
| 50+ | ₹12.04 | ₹602.00 |
| 150+ | ₹10.44 | ₹1,566.00 |
| 500+ | ₹9.25 | ₹4,625.00 |
| 2,500+ | ₹8.30 | ₹20,750.00 |
| 5,000+ | ₹7.81 | ₹39,050.00 |
5 × ₹15.23
₹76.15
excl. GST
₹89.86 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
HX33063-S
₹76.15 for 5 + GST
Specifications
- Function
- Step-down type;Boost
- Frequency - Switching
- 24kHz~42kHz
- Number of Outputs
- 1
- Features
- Overcurrent Protection
- Topology
- Boost;Buck;Inverting
- Output Type
- Adjustable
- Operating Voltage
- 3V~40V
- Switch tube (built-in/external)
- Built-in
- Output Current
- 1.5A
- Quiescent Current
- 4mA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.183 g
Overview
HX33063-S/HX33063-P is a highly functional DC-DC conversion control single-chip integrated circuit. It cleverly integrates a bandgap reference source with temperature automatic compensation, a highprecision comparator, a duty cycle adjustable oscillator with current limiting protection function, a driving transistor, and a switch tube capable of withstanding high currents. By simply connecting a small number of external components, this chip can flexibly achieve voltage boost, buck, and even negative pressure output functions, greatly simplifying the circuit design and implementation process.
Applications
- Boost application
Key features
- working voltage 3V - 40V
- Low static power consumption
- Output switch current 1.5A
- Adjustable output voltage
- Working frequency reaches 100KHz
- Precision benchmark accuracy 2%
