ZHHXDZDatasheet (PDF)

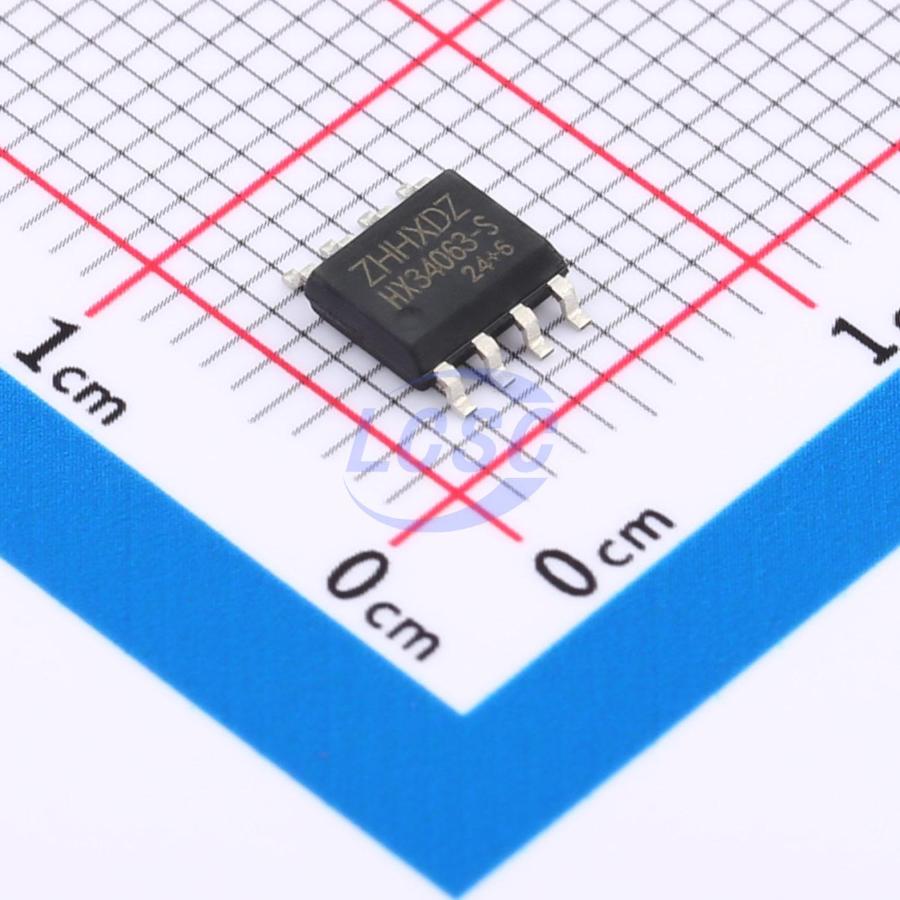

HX34063-S
33kHz Adjustable 1.2A SOP-8 Voltage Regulators - DC DC Switching Regulators RoHS
SOP-8ROHS CompliantActive
Wide Input Voltage Range DC-DC Converter Control Circuit
- Manufacturer
- ZHHXDZ
- Manufacturer part #
- HX34063-S
- Store part #
- C41399173
- Package / case
- SOP-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,255 in stock
#C41399173
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹14.63 | ₹73.15 |
| 50+ | ₹11.58 | ₹579.00 |
| 150+ | ₹10.04 | ₹1,506.00 |
| 500+ | ₹8.89 | ₹4,445.00 |
| 2,500+ | ₹7.96 | ₹19,900.00 |
| 5,000+ | ₹7.51 | ₹37,550.00 |
5 × ₹14.63
₹73.15
excl. GST
₹86.32 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
HX34063-S
₹73.15 for 5 + GST
Specifications
- Operating Temperature
- 0℃~+70℃@(TA)
- Function
- Step-down type;Boost
- Frequency - Switching
- 33kHz
- Number of Outputs
- 1
- Output Type
- Adjustable
- Topology
- Inverting
- Operating Voltage
- 3V~40V
- Switch tube (built-in/external)
- Built-in
- Output Current
- 1.2A
- Quiescent Current
- 4mA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.183 g
Overview
HX34063-S/HX34063-P is a highly functional DC-DC conversion control single-chip integrated circuit. It cleverly integrates a bandgap reference source with temperature automatic compensation, a highprecision comparator, a duty cycle adjustable oscillator with current limiting protection function, a driving transistor, and a switch tube capable of withstanding high currents. By simply connecting a small number of external components, this chip can flexibly achieve voltage boost, buck, and even negative pressure output functions, greatly simplifying the circuit design and implementation process.
Applications
- Boost application
Key features
- working voltage 3V-40V
- Low static power consumption
- Output switch current 1.5A
- Adjustable output voltage
- Working frequency reaches 100KHz
- Precision benchmark accuracy 2%
