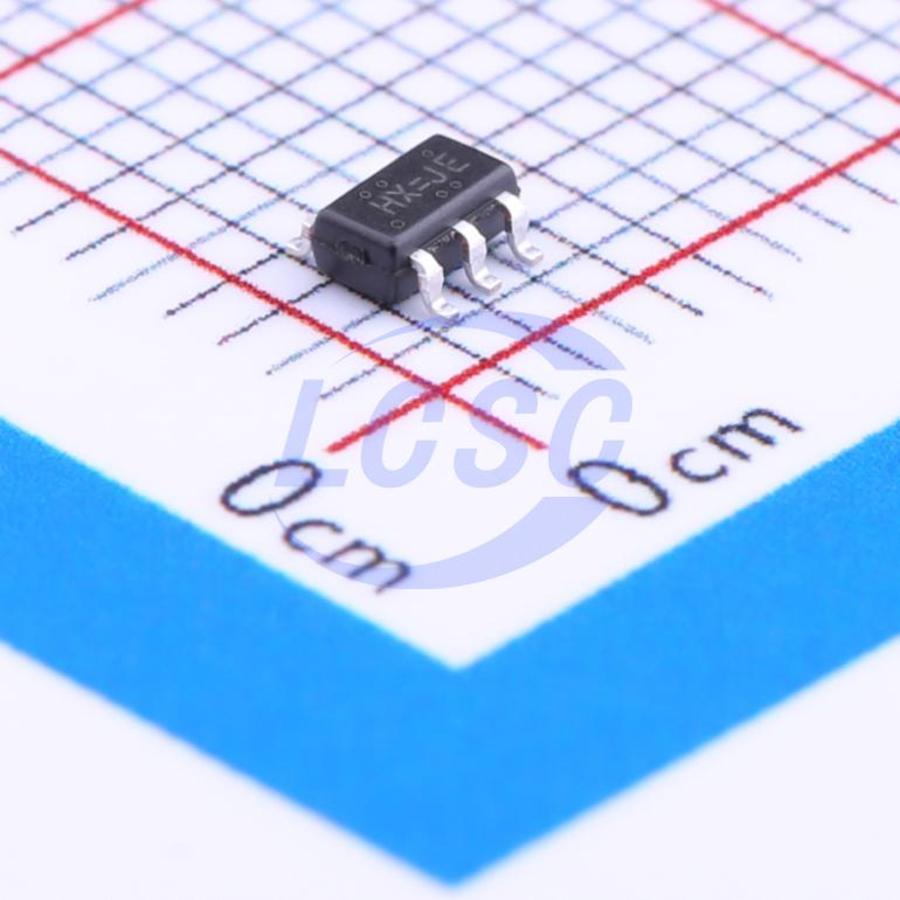

HX4004A-MFC
boost converter 360kHz 230mA 4.83V~4.97V SOT-23-6 Voltage Regulators - DC DC Switching Regulators
SOT-23-6RoHSActive
Low Noise, Regulated Charge Pump DC/DC Converter
- Manufacturer
- HEXIN
- Manufacturer part #
- HX4004A-MFC
- Store part #
- C172355
- Package / case
- SOT-23-6
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
7,490 in stock
#C172355
Stock & price checked 18 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹13.02 | ₹65.10 |
| 50+ | ₹10.52 | ₹526.00 |
| 150+ | ₹9.26 | ₹1,389.00 |
| 500+ | ₹8.32 | ₹4,160.00 |
| 3,000+ | ₹7.17 | ₹21,510.00 |
| 6,000+ | ₹6.80 | ₹40,800.00 |
5 × ₹13.02
₹65.10
excl. GST
₹76.82 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
HX4004A-MFC
₹65.10 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Function
- boost converter
- Frequency - Switching
- 360kHz
- Features
- Low ripple / low noise architecture;Low-power standby;Load disconnect;Output short-circuit protection
- Operating Voltage
- 2.7V~4.5V
- Output Current
- 230mA
- Output Voltage
- 4.83V~4.97V
- Energy Efficiency
- 78%
- Quiescent Current
- 170uA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.05 g
Overview
The HX4004A is a low noise switched capacitor voltage doubler. It produce a regulated output voltage from a 2.7V to 4.5V input. Low external parts count (one flying capacitor and two small bypass capacitors at VIN and VOUT) make the HX4004A ideally suited for small, battery-powered applications. The HX4004A have thermal shutdown capability and can survive a continuous short circuit from VOUT to GND. A low current shutdown feature disconnects the load from VIN and reduces quiescent current to <1uA. The HX4004A is available in the industry standard SOT-23-6L power packages.
Applications
- White LED Backlighting
- Li-Ion Battery Backup Supplies
- Smart Card Readers
- PCMCIA Local 5V Supplies
Key features
- Fixed 4.9V ±2% Output
- VIN Range: 2.7V to 4.5V
- Output Current: Up to 110mA (VIN = 3V), Up to 230mA (VIN ≥ 3.6V)
- Low Noise Constant Frequency (360kHz) Operation
- Shutdown Current < 1μA
- No Inductors
- Available in Low Profile 6-Lead SOT23 Package
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | HX4004-MFC#C42413066HEXIN · SOT-23-6L | HEXIN | SOT-23-6L | 890 | ₹11.80 · 890 in stock | View |
