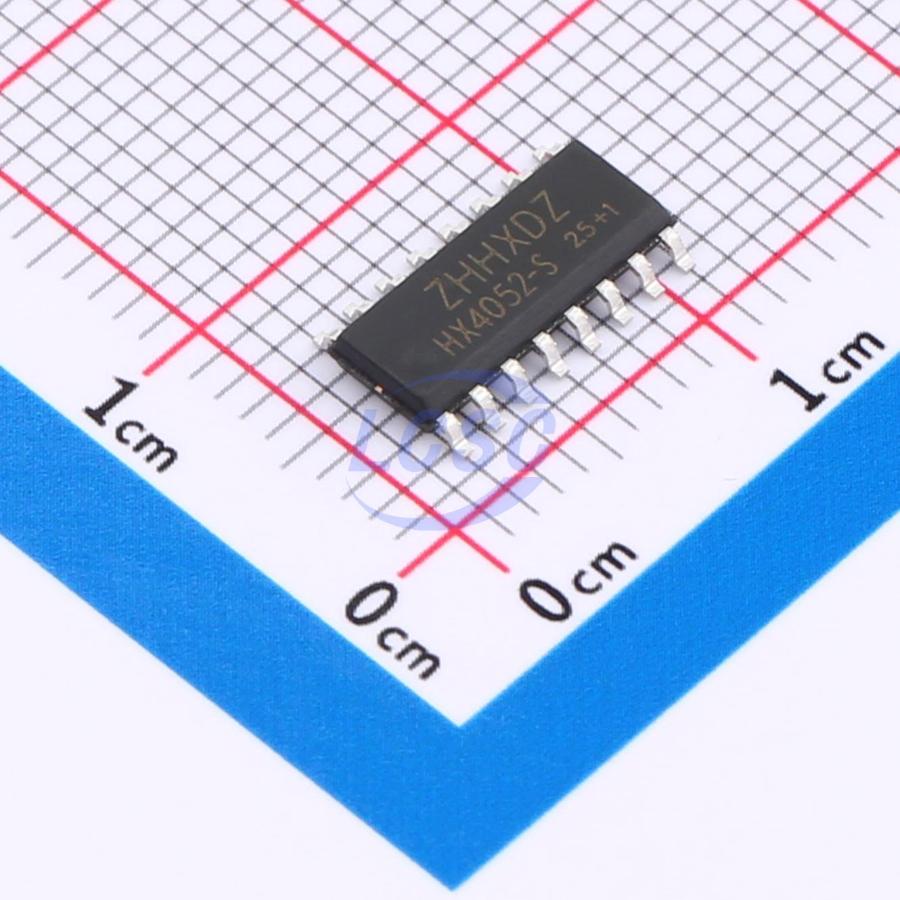

HX4052-S

HX4052 - S series analog switches are multimodulated/selective analog switches controlled by digital signals, with low on - resistance and very low cut - off leakage current. The digital signal with amplitude of 4.5V ~ 18V can control the analog signal with peak - to - peak value of 18V. For example, if VDD = +5V, Vss = 0V, VEE = - 13.5V, the digital signal from 0 to 5V can control the analog signal from 13.5 to 4.5V, and these switching circuits have very low static power consumption in the entire VDD - VSS and VDD - VEE power supply range. HX4052 - S is A double four - option analog switch. Each group of four - option analog switches has two binary control input terminals A and B and INH input respectively. These two binary signals can set any one of the four analog channels to the on - state. INH input "1" power level sets all channels of the two groups of four - option analog switches to the off state, and input "0" power level sets all channels of the two groups of four - option analog switches to the on - state.

Key features

• Very wide digital control and transmission of analog signal voltage Range: digital 4.5V ~ 18V, analog 18V
• Low on - resistance: 80 (VDD - VEE = 15V, signal greater than 15Vpp)
• Very low static voltage consumption
• High off resistance
• Digital address signal 4.5V ~ 18V logic level Convert to switch analog signal 18Vpp
• Built - in binary address decoder
