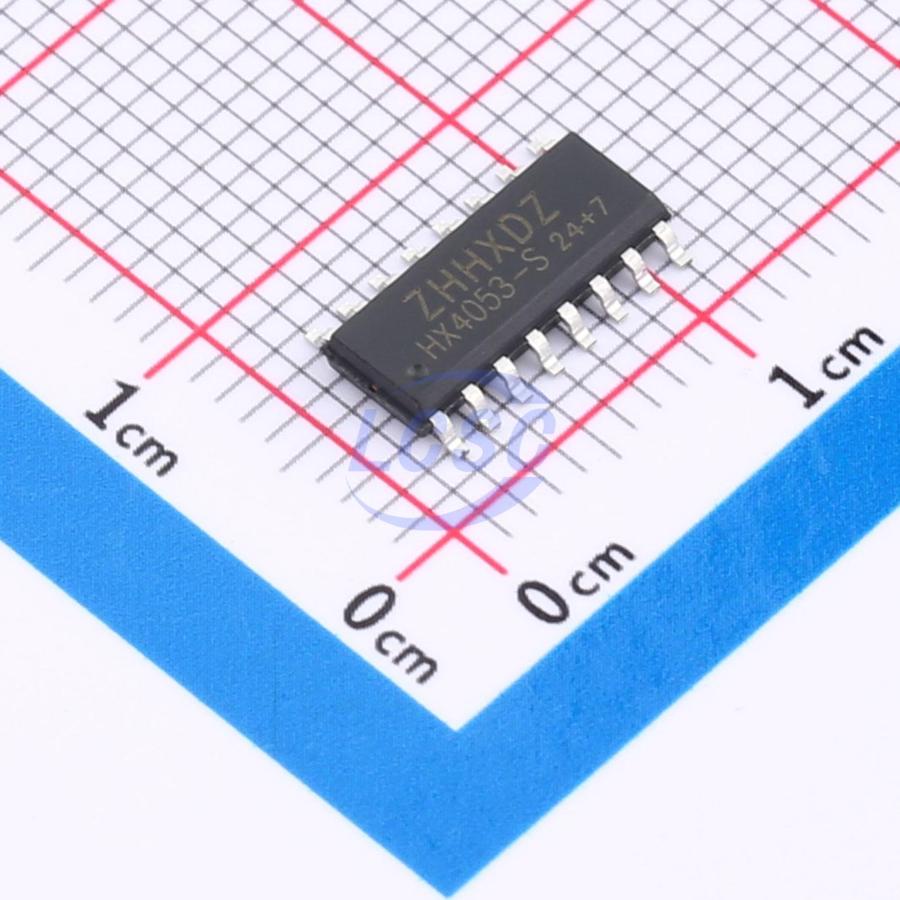

HX4053-S

HX4053-S series analog switches are multi-modulated/selective analog switches controlled by digital signals, with low on-resistance and very low cut-off leakage current. The digital signal with amplitude of 4.5V ~ 18V can control the analog signal with peak-to-peak value of 18V. For example, if VDD = +5V, Vss = 0V, VEE = - 13.5V, then the digital signal of 0 ~ 5V can control the analog signal of - 13.5 ~ 4.5V, and these switching circuits have poles in the entire VDD-VSS and VDD-VEE power supply range. Low static power consumption. The HX4053-S is a three-group 2-select 1 bidirectional analog switch, equivalent to three groups of single-pole double-throw switches. It has three independent sets of binary digital control inputs A, B, C and INH suppression inputs, and the binary digital control signal can set either of the two analog channels to the on-state. INH input "1" power to set all channels of the 3 groups of 2 optional 1 analog switches to Off state, input "0" power to set all channels of the 3 groups of 2 optional 1 analog switches to on state.

Key features

• Very wide digital control and transmission of analog signal voltage Range: digital 4.5V ~ 18V, analog 18V
• Low on-resistance: 80Ω (VDD-VEE = 15V, signal greater than 15Vₚ₋ₚ)
• Very low static voltage consumption High off resistance
• Digital address signal 4.5V ~ 18V logic level conversion to switch analog signal 18Vₚ₋ₚ
• Built-in binary address decoder
