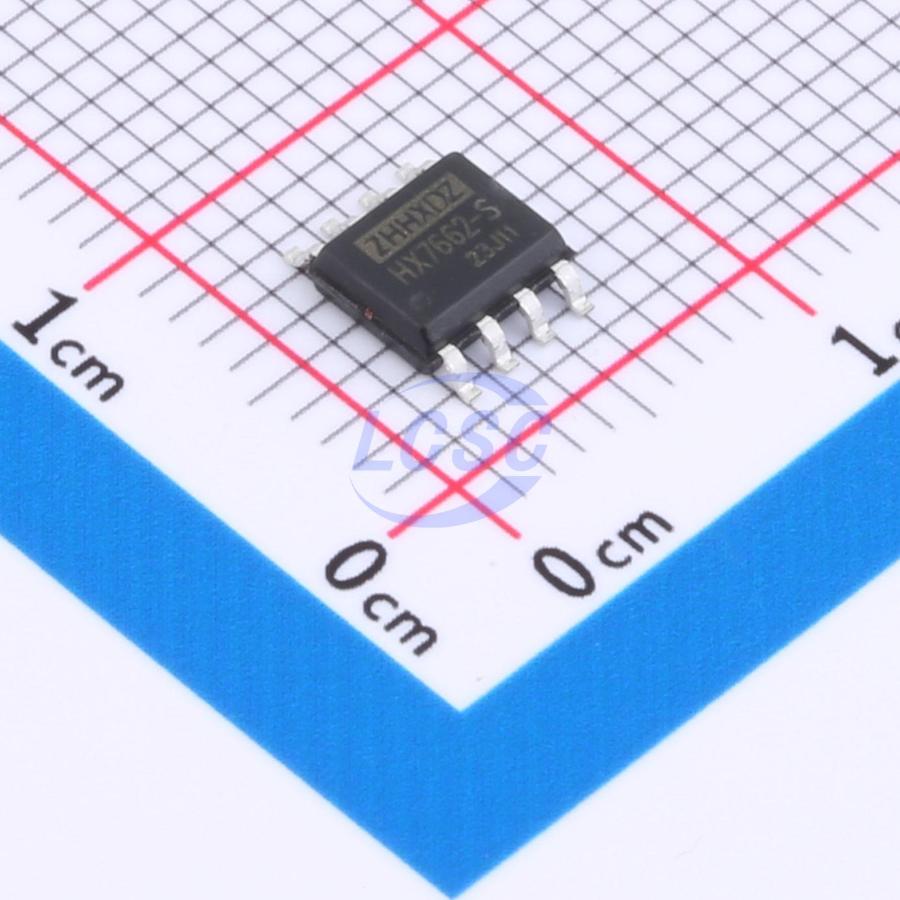

HX7662-S
Inverted 5kHz -20V~-4.5V SOP-8 Voltage Regulators - DC DC Switching Regulators RoHS
SOP-8ROHS CompliantActive
CMos Voltage Converters
- Manufacturer
- ZHHXDZ
- Manufacturer part #
- HX7662-S
- Store part #
- C19186026
- Package / case
- SOP-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,926 in stock
#C19186026
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹146.76 | ₹146.76 |
| 10+ | ₹120.27 | ₹1,202.70 |
| 30+ | ₹107.03 | ₹3,210.90 |
| 100+ | ₹93.79 | ₹9,379.00 |
| 500+ | ₹85.97 | ₹42,985.00 |
| 1,000+ | ₹82.07 | ₹82,070.00 |
1 × ₹146.76
₹146.76
excl. GST
₹173.18 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
HX7662-S
₹146.76 for 1 + GST
Specifications
- Operating Temperature
- 0℃~+70℃
- Function
- Inverted
- Frequency - Switching
- 5kHz
- Features
- Charge pump / inverting topology switching;Cascade support
- Operating Voltage
- 4.5V~20V
- Output Voltage
- -20V~-4.5V
- Quiescent Current
- 1mA
- Energy Efficiency
- 96%
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.506 g
Overview
The HX7662-S/HX7662-P is a monolithic charge pump voltage inverter designed to convert a positive voltage in the range of +4.5V to +20V into the corresponding negative voltage of -4.5V to - 20V. Compared to previous implementations of charge pump voltage inverters, the HX7662- S/HX7662-P offers superior performance by combining low quiescent current with high efficiency. It integrates an oscillator, control circuitry, and 4 power MOS switches on-chip, requiring only two low-cost capacitors as external components.
Applications
- Inexpensive Negative Supplies
- Data Acquisition Systems
- Up to -20V for Op Amps, and Other Linear Circuits
- Supply Splitter, Vout = Vs/2
- RS-232 Power Supplies
Key features
- +4.5V to +20V Supply to -4.5V to -20V Output
- Cascaded Voltage Multiplication (Vout = -n×V+)
- 9.7% Typical Open Circuit Conversion Efficiency
- Requires Only 2 External Capacitors
- Pin Compatible with the HX7662-S/HX7662-P
