HXY MOSFETDatasheet (PDF)

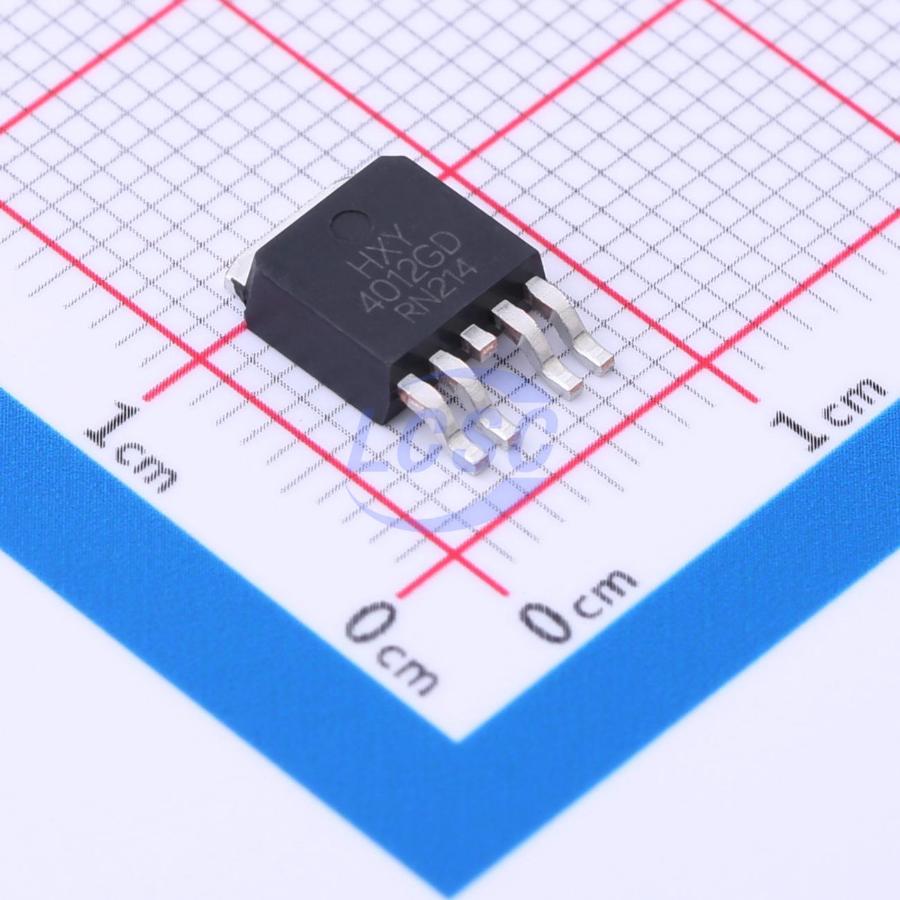

HXY4012GD
N-Channel+P-Channel Array 40V 20A 40W Surface Mount TO-252-4L
TO-252-4LRoHSActive
MOSFET N-CH+P-CH ARR 40V 20A TO-252-4L
- Manufacturer
- HXY MOSFET
- Manufacturer part #
- HXY4012GD
- Store part #
- C3033442
- Package / case
- TO-252-4L
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
220 in stock
#C3033442
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹26.92 | ₹134.60 |
| 50+ | ₹21.49 | ₹1,074.50 |
| 150+ | ₹19.14 | ₹2,871.00 |
| 500+ | ₹16.23 | ₹8,115.00 |
| 2,500+ | ₹14.29 | ₹35,725.00 |
| 5,000+ | ₹13.51 | ₹67,550.00 |
5 × ₹26.92
₹134.60
excl. GST
₹158.83 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
HXY4012GD
₹134.60 for 5 + GST
Specifications
- Configuration
- Common Drain
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 40V
- Output Capacitance(Coss)
- 215pF
- Current - Continuous Drain(Id)
- 20A
- Ciss-Input Capacitance
- 1.5nF
- Pd - Power Dissipation
- 40W
- Reverse Transfer Capacitance (Crss)
- 135pF
- RDS(on)
- 18mΩ@10V
- Number
- 1 N-Channel + 1 P-Channel
- Gate Charge(Qg)
- 24nC@10v
- Gate Threshold Voltage (Vgs(th))
- 1.5V
- Type
- N-Channel + P-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.33 g
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | DMC4029SK4-HXY#C22366759HXY MOSFET · TO-252-4L | HXY MOSFET | TO-252-4L | 80 | ₹32.85 · 80 in stock | View |
 | FDD8424H-HXY#C22366760HXY MOSFET · TO-252-4L | HXY MOSFET | TO-252-4L | 2,543 | ₹65.05 · 2,543 in stock | View |
 | AOD609-HXY#C4748763HXY MOSFET · TO-252-4L | HXY MOSFET | TO-252-4L | 350 | ₹29.81 · 350 in stock | View |
