HXY MOSFETDatasheet (PDF)

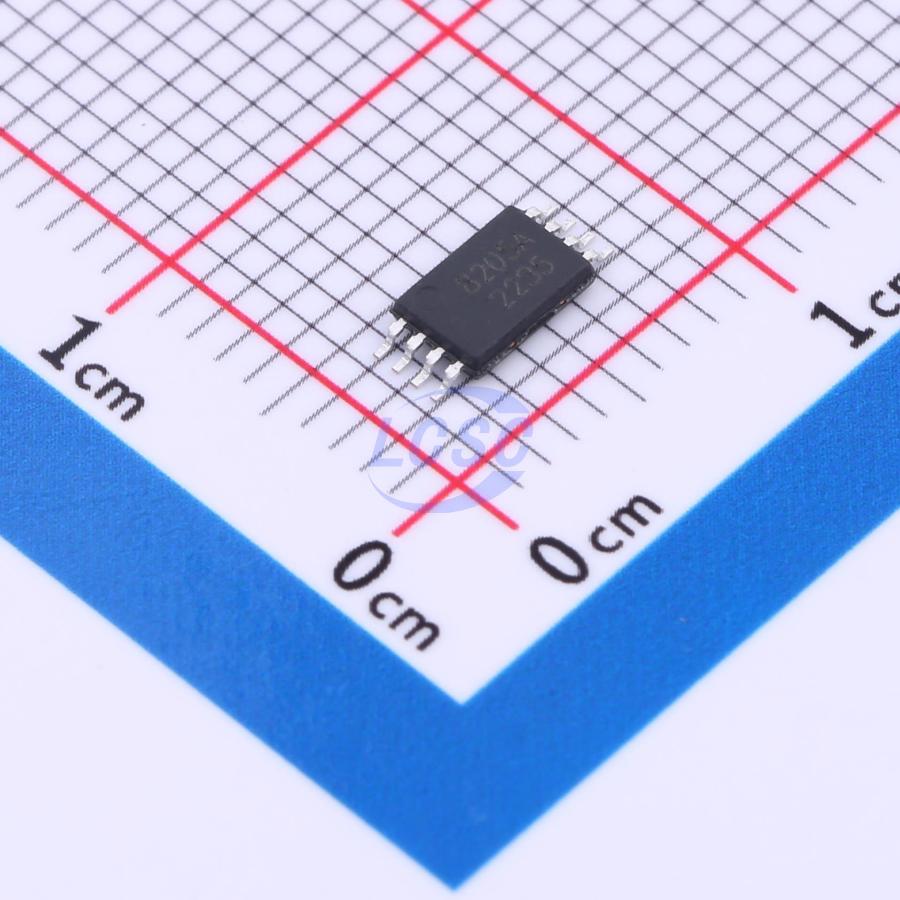

HXY8205ES
N-Channel Array 20V 6A 1.5W Surface Mount TSSOP-8
TSSOP-8RoHSActive
MOSFET N-CH ARR 20V 6A TSSOP-8
- Manufacturer
- HXY MOSFET
- Manufacturer part #
- HXY8205ES
- Store part #
- C5148648
- Package / case
- TSSOP-8
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
300 in stock
#C5148648
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹9.13 | ₹91.30 |
| 100+ | ₹7.26 | ₹726.00 |
| 300+ | ₹6.34 | ₹1,902.00 |
| 1,000+ | ₹5.64 | ₹5,640.00 |
| 5,000+ | ₹4.84 | ₹24,200.00 |
| 10,000+ | ₹4.56 | ₹45,600.00 |
10 × ₹9.13
₹91.30
excl. GST
₹107.73 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
HXY8205ES
₹91.30 for 10 + GST
Specifications
- Configuration
- Common Drain
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 20V
- Output Capacitance(Coss)
- 330pF
- Current - Continuous Drain(Id)
- 6A
- Ciss-Input Capacitance
- 600pF
- Pd - Power Dissipation
- 1.5W
- Reverse Transfer Capacitance (Crss)
- 140pF
- RDS(on)
- 21mΩ@4.5V
- Number
- 2 N-Channel
- Gate Charge(Qg)
- 10nC@4.5V
- Gate Threshold Voltage (Vgs(th))
- 700mV
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.17 g
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | DMN2040LTS-HXY#C22366416HXY MOSFET · TSSOP-8 | HXY MOSFET | TSSOP-8 | 35 | ₹20.19 · 35 in stock | View |
 | 8205A#C5148694HXY MOSFET · TSSOP-8 | HXY MOSFET | TSSOP-8 | 74,250 | ₹11.03 · 74,250 in stock | View |
 | AO8810-HXY#C19723842HXY MOSFET · TSSOP-8 | HXY MOSFET | TSSOP-8 | 200 | ₹23.09 · 200 in stock | View |
 | AO8814-HXY#C19723843HXY MOSFET · TSSOP-8 | HXY MOSFET | TSSOP-8 | 65 | ₹24.69 · 65 in stock | View |
 | DMN2016UTS-HXY#C22367368HXY MOSFET · TSSOP-8 | HXY MOSFET | TSSOP-8 | 365 | ₹26.61 · 365 in stock | View |
