InfineonDatasheet (PDF)

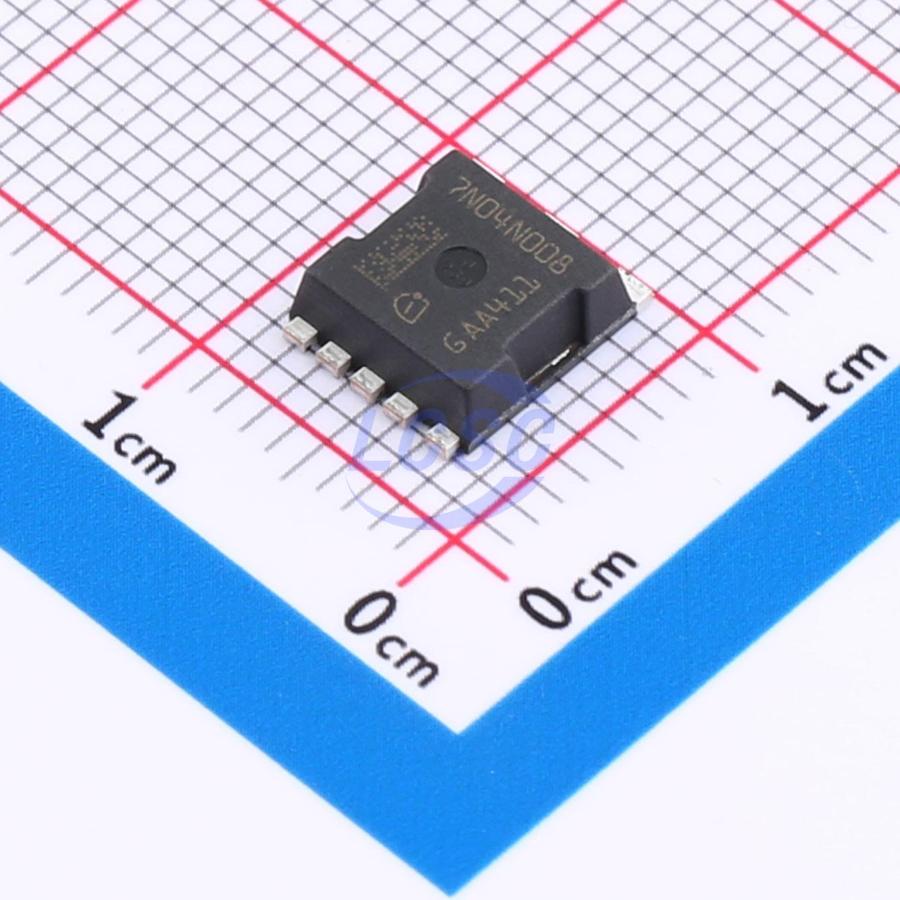

IAUAN04S7N008AUMA1
N-Channel 40V 290A 133W HSOF-5
HSOF-5ROHS3 CompliantActive
MOSFET N-CH 40V 290A HSOF-5
- Manufacturer
- Infineon
- Manufacturer part #
- IAUAN04S7N008AUMA1
- Store part #
- C27029419
- Package / case
- HSOF-5
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
39 in stock
#C27029419
Stock & price checked 2 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹315.52 | ₹315.52 |
| 10+ | ₹264.45 | ₹2,644.50 |
| 30+ | ₹232.52 | ₹6,975.60 |
| 100+ | ₹199.92 | ₹19,992.00 |
| 500+ | ₹185.14 | ₹92,570.00 |
| 1,000+ | ₹178.62 | ₹1,78,620.00 |
1 × ₹315.52
₹315.52
excl. GST
₹372.31 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,000 per reel
IAUAN04S7N008AUMA1
₹315.52 for 1 + GST
Specifications
- Drain to Source Voltage
- 40V
- Operating Temperature
- -55℃~+175℃
- Output Capacitance(Coss)
- 3.15nF
- Current - Continuous Drain(Id)
- 290A
- Ciss-Input Capacitance
- 5.41nF
- Pd - Power Dissipation
- 133W
- Reverse Transfer Capacitance (Crss)
- 120pF
- RDS(on)
- 0.82mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 78nC@10V
- Gate Threshold Voltage (Vgs(th))
- 3V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.66 g
Overview
Applications
- General automotive applications.
Key features
- OptiMOSTM power MOSFET for automotive applications
- N-channel - Enhancement mode - Normal Level
- Extended qualification beyond AEC-Q101
- Enhanced electrical testing
- Robust design
- MSL2a up to 260°C peak reflow
- 175°C operating temperature
- RoHS compliant
- 100% Avalanche tested
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | IAUAN04S7N007AUMA1#C24851154Infineon · HSOF-5 | Infineon | HSOF-5 | 8 | ₹231.00 · 8 in stock | View |
 | IAUA250N04S6N008AUMA1#C6061344Infineon · HSOF-5 | Infineon | HSOF-5 | 102 | ₹346.26 · 102 in stock | View |
 | IAUAN04S7N006AUMA1#C22668212Infineon · HSOF-5 | Infineon | HSOF-5 | 4 | ₹510.70 · 4 in stock | View |
 | IAUAN04S7N004AUMA1#C28487916Infineon · HSOF-5 | Infineon | HSOF-5 | 97 | ₹694.89 · 97 in stock | View |
 | IAUA250N04S6N007E#C7288402Infineon · HSOF-5 | Infineon | HSOF-5 | On request | ₹465.56 · 0 in stock | View |
