InfineonDatasheet (PDF)

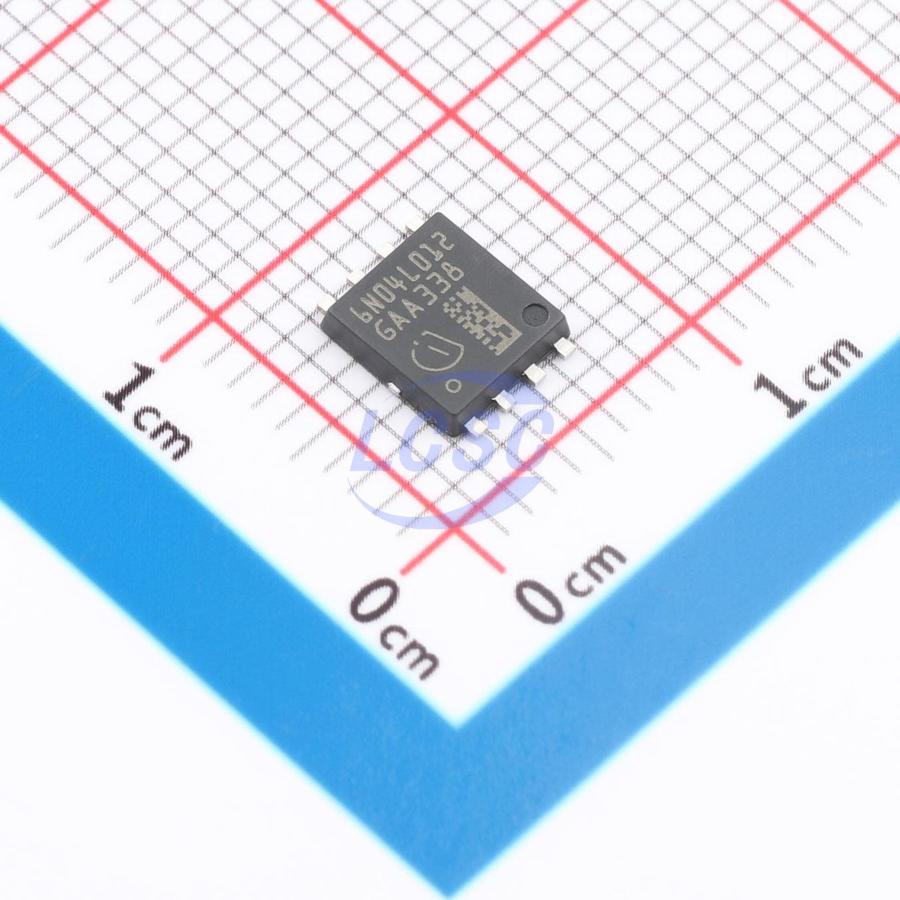

IAUC120N04S6L012
115W 40V 120A 1.21mΩ@10V 1 N-channel N-Channel TDSON-8(5.2x6.2) Single FETs, MOSFETs
TDSON-8(5.2x6.2)RoHSActive
- Manufacturer
- Infineon
- Manufacturer part #
- IAUC120N04S6L012
- Store part #
- C535703
- Package / case
- TDSON-8(5.2x6.2)
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
20 in stock
#C535703
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹227.20 | ₹227.20 |
| 10+ | ₹223.32 | ₹2,233.20 |
| 30+ | ₹220.74 | ₹6,622.20 |
| 100+ | ₹217.95 | ₹21,795.00 |
1 × ₹227.20
₹227.20
excl. GST
₹268.10 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
IAUC120N04S6L012
₹227.20 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 1.022nF
- Ciss-Input Capacitance
- 3.717nF
- Pd - Power Dissipation
- 115W
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 40V
- Current - Continuous Drain(Id)
- 120A
- Reverse Transfer Capacitance (Crss)
- 55pF
- RDS(on)
- 1.21mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 60nC
- Vgs
- ±16V
- Gate Threshold Voltage (Vgs(th))
- 2V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.288 g
Overview
Key features
- OptiMOS - power MOSFET for automotive applications
- N-channel - Enhancement mode - Logic Level
- AEC Q101 qualified
- MSL1 up to 260°C peak reflow
- 175°C operating temperature
- Green Product (RoHS compliant)
- 100% Avalanche tested
