InfineonDatasheet (PDF)

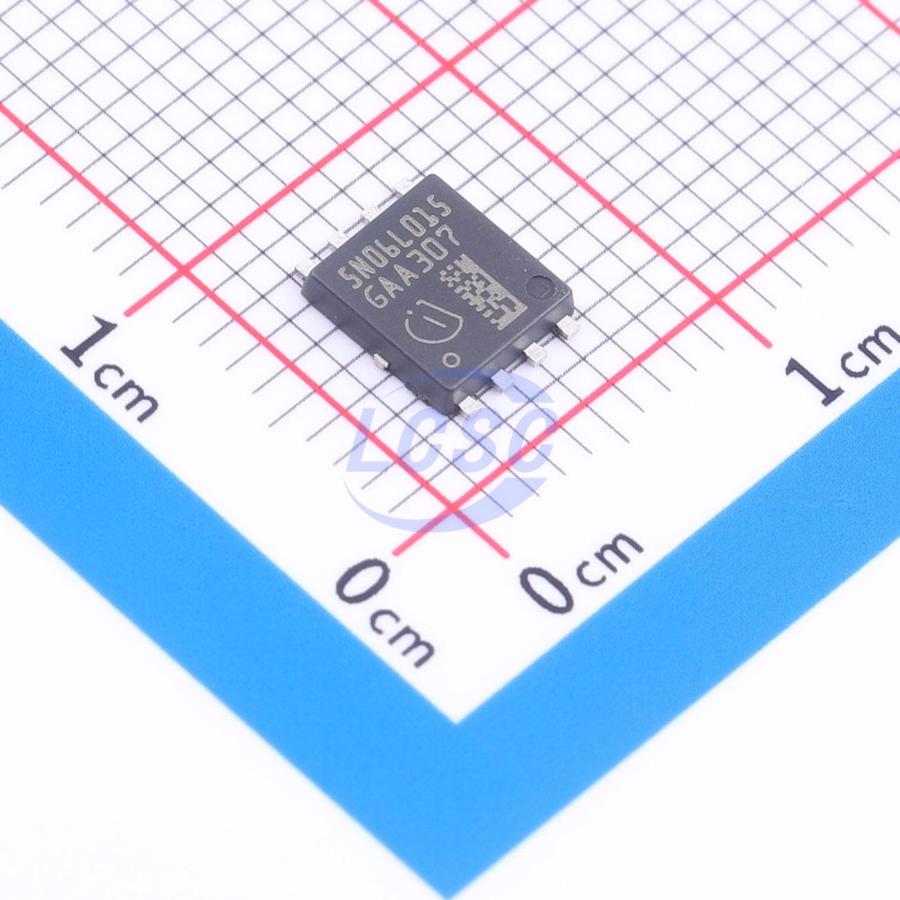

IAUC120N06S5L015ATMA1
60V 235A 167W 2.13mΩ@4.5V 1 N-channel N-Channel TDSON-8-43 Single FETs, MOSFETs RoHS
TDSON-8-43ROHS3 CompliantActive
MOSFET N-CH 60V 235A TDSON-8-43
- Manufacturer
- Infineon
- Manufacturer part #
- IAUC120N06S5L015ATMA1
- Store part #
- C20190978
- Package / case
- TDSON-8-43
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
22 in stock
#C20190978
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹285.75 | ₹285.75 |
| 10+ | ₹279.02 | ₹2,790.20 |
| 30+ | ₹274.46 | ₹8,233.80 |
| 100+ | ₹269.67 | ₹26,967.00 |
1 × ₹285.75
₹285.75
excl. GST
₹337.19 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
IAUC120N06S5L015ATMA1
₹285.75 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 60V
- Output Capacitance(Coss)
- 1.509nF
- Current - Continuous Drain(Id)
- 235A
- Ciss-Input Capacitance
- 8.193nF
- Pd - Power Dissipation
- 167W
- Reverse Transfer Capacitance (Crss)
- 81pF
- RDS(on)
- 2.13mΩ@4.5V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 114nC@10V
- Gate Threshold Voltage (Vgs(th))
- 2.2V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.514 g
Overview
Applications
- General automotive applications.
Key features
- OptiMOS™ Power MOSFET for automotive applications
- N-channel – Enhancement mode – Logic level
- Extended qualification beyond AEC-Q101
- Enhanced electrical testing
- Robust design
- MSL1, up to 260°C peak reflow temperature
- 175°C operating temperature
- Green product (RoHS compliant)
- 100% avalanche tested
