InfineonDatasheet (PDF)

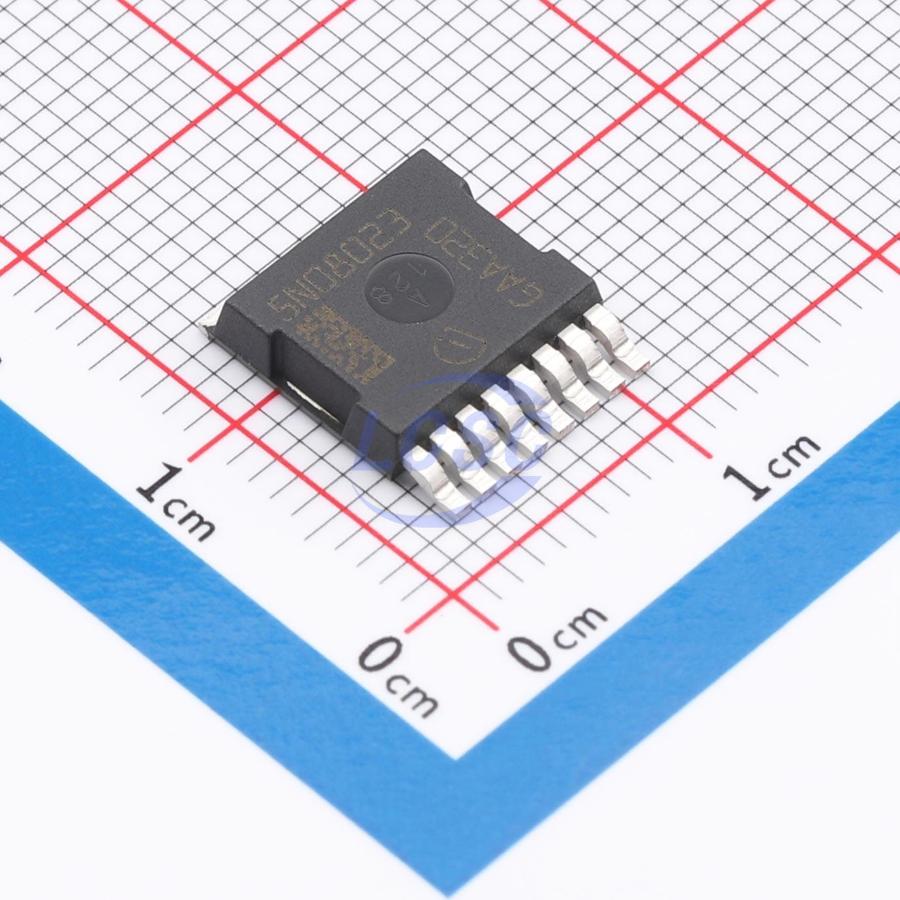

IAUS200N08S5N023
200W 80V 200A 2.3mΩ@10V 1 N-channel N-Channel HSOG-8 Single FETs, MOSFETs RoHS
HSOG-8ROHS3 CompliantActive
- Manufacturer
- Infineon
- Manufacturer part #
- IAUS200N08S5N023
- Store part #
- C535717
- Package / case
- HSOG-8
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
77 in stock
#C535717
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹356.80 | ₹356.80 |
| 10+ | ₹348.52 | ₹3,485.20 |
| 30+ | ₹343.08 | ₹10,292.40 |
| 100+ | ₹337.64 | ₹33,764.00 |
1 × ₹356.80
₹356.80
excl. GST
₹421.02 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 1,800 per reel
IAUS200N08S5N023
₹356.80 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 980pF
- Ciss-Input Capacitance
- 7.67nF
- Pd - Power Dissipation
- 200W
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 80V
- Current - Continuous Drain(Id)
- 200A
- Reverse Transfer Capacitance (Crss)
- 68pF
- RDS(on)
- 2.3mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 110nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 3V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,800 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.73 g
Overview
Key features
- N-Channel - Enhancement Mode
- AEC Qualified
- MSL1 Rated at Peak Reflow Temperature up to 260°C
- Operating Temperature up to 175°C
- Green Product (RoHS Compliant)
- Ultra-Low On-Resistance Rds(on)
- 100% Avalanche Tested
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | IAUS300N08S5N012#C535720Infineon · HSOG-8 | Infineon | HSOG-8 | 2 | ₹786.39 · 2 in stock | View |
 | IAUS240N08S5N019#C535718Infineon · HSOG-8 | Infineon | HSOG-8 | 10 | ₹836.04 · 10 in stock | View |
 | IPTG017N12NM6ATMA1#C27391716Infineon · PG-HSOG-8-1 | Infineon | PG-HSOG-8-1 | 7 | ₹980.12 · 7 in stock | View |
| IAUS300N10S5N014ATMA1#C3288786Infineon · HSOG-8 | Infineon | HSOG-8 | 3 | ₹2,634.07 · 3 in stock | View | |
| IAUS300N08S5N014#C535721Infineon · HSOG-8 | Infineon | HSOG-8 | 9 | ₹1,144.55 · 9 in stock | View | |
